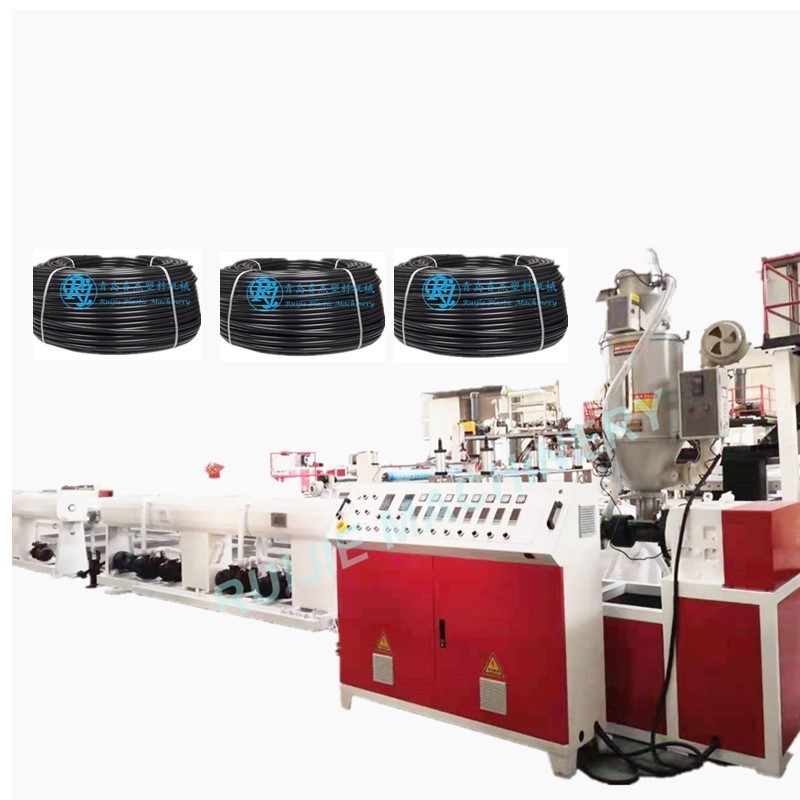

Co-Extrusion High Speed Pe/pvc/pp Pipe Production Line / Extruder Machine

Marking Situation

According to the various uses of plastic PE pipes, it is required to have both mechanical strength, heat resistance, cold resistance, transparency and other properties, and it is necessary to constantly have the emergence of new plastic pipes to replace traditional plastic pipes. PE pipe gradually from heavy to light, single function to multi-function development, co-extruded composite plastic three-layer PE pipe has become a new type of pipe. Because the various properties and functions of the co-extruded pipe can be designed according to needs, by selecting the appropriate matrix and reinforcement as well as the appropriate composition ratio and arrangement distribution, give full play to the performance advantages of the component materials, so as to obtain the comprehensive properties difficult to achieve by single materials such as metals, polymers, ceramics, such as high specific strength, high specific modulus, corrosion resistance, high temperature resistance and superconductivity, etc. Therefore, it has gradually become the development trend of plastic PE pipes in the future.

Advantages co-extrusion
1. Better product performance: Double-layer co-extrusion technology can extrude two different materials and compound them together, making full use of the advantages of two different materials to improve product performance.
2. The production process is simpler: compared with the traditional single-layer extrusion technical process, the double-layer co-extrusion technology production process is simpler and more energy saving.
4. Save resources: Double-layer co-extrusion technology can simplify the storage and processing of different kinds of materials, and reduce the waste of raw materials.
All in all, double-layer co-extrusion technology has become a core technology of modern plastic manufacturing and is widely used in all walks of life. With the continuous progress of science and technology, it is believed that double-layer co-extrusion technology will have a broader space for development

SJ150/33 Single-screw Extruder
Screw Diameter   150mm
Material             38CrMoAlA
Screw-stem draw ratio 33:1
Method              AC motor
Power               160KW

Siemens brand
Control System    DELTA frequency-converting

SJ 45 /25 Extruder for Mark Line

Mould(including heater and calibrator)

Method mouth die and core die are changeable
Heating Power MAX 50KW
Form: spiral form
Vacuum Cooling Tank

Vacuum pump 11KW +7.5KW
Water pump 3KW
The length 8000mm
Cooling mode: Four-pipe spray bath
Cooling medium water

Haul-off unit

Haul-off method Caterpillar
Speed adjusting mode frequency-converting
Driving motor 4KW
Length of caterpillar 1500mm
Width of caterpillar 100mm

Cutter with no-dust
Cutting motor 4KW
Motor speed 1450rpm

stacker

Board overturning mode pneumatic
Automatic length-control Yes
material overturning Pneumatic

Q: Why do I choose your company?

A: 1) We are one of the leading manufacturers of extruder machinery .

2) Our company has made extruder machine about 14 years with strong experience and advanced technology.

3) Best Quality & Best Service with Competitive price. 1 year guarantee and lifetime maintenance.

4) We have Professional technical teams, and will supply 24 hours services.

Q: What should we prepare for Machine ?

A:You should prepare raw material, workshop, water line, electric line, compress air(if you need I can help you buy air

compressor).We would supply workshop layout drawing for you.

Q: Where is your factory located? How can I visit you?

A: Our factory is located in Qingdao city, Shandong province, you can fly to Qingdao AirPort. When you confirm the flight No. and time, please tell me then we will pick you up at Airport.

Q: If my machine can not work when I receive it, what will your factory do?

A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our

engineer to your factory to repair the machine.

Q: How can I believe your factory and machines.

A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished for your checking, if it do not reach your demands, we will change, or even give back your deposit.
