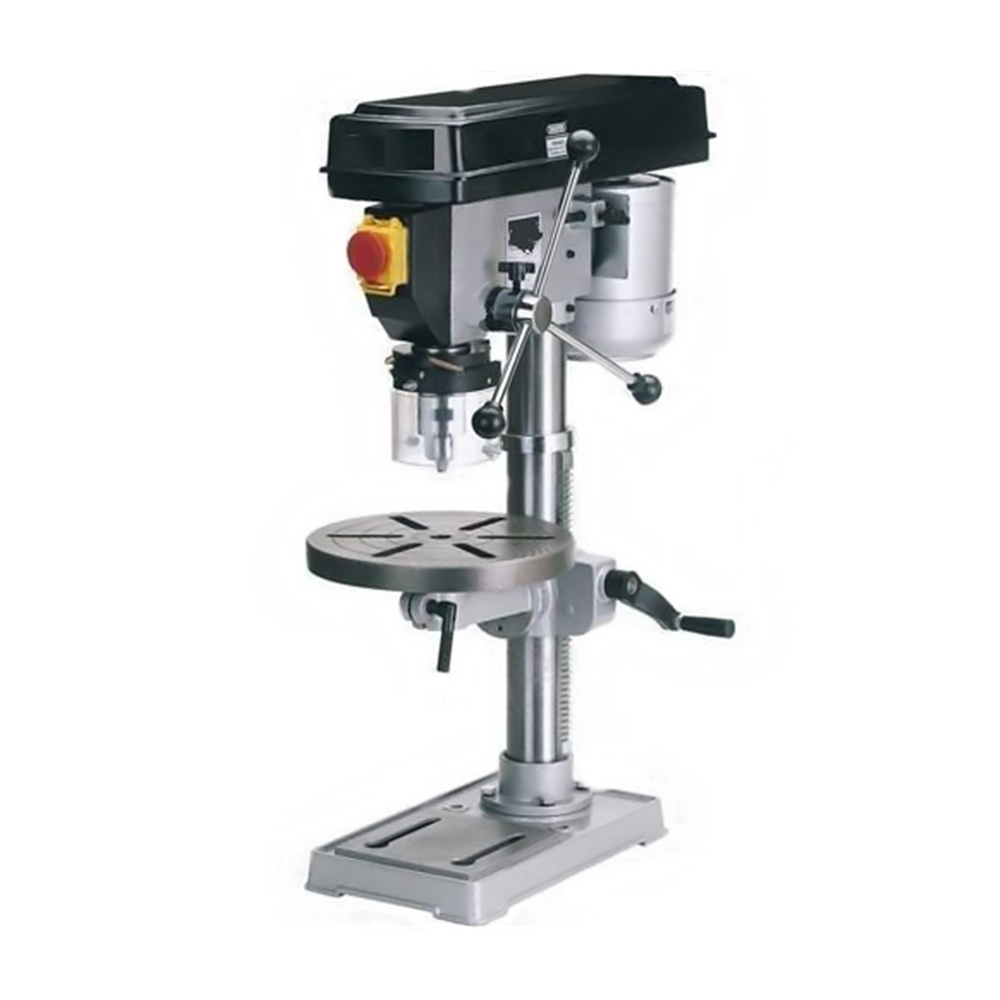

High-Accuracy Reputation ZJW4116 Mini Bench Table Drilling Machine

High-Accuracy Reputation ZJW4116 Mini Bench Table Drilling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $78

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: china jiangsu

Brand Name:: aimaco

Model Number:: ZJW4116

Voltage:: 220v

Dimension(L*W*H):: 700x510x270

Weight (KG):: 40 KG

Motor power:: 550w

Chuck:: 16mm

Spindle travel:: 80mm

Spindle taper:: MT2

Speed change:: variable

Speed 50/60hz:: 350-3000

Swing:: 300mm

Working table:: 200x200mm

Base:: 360x220mm

Column:: 58mm

After-sales Service Provided:: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: Egypt, Canada, Algeria

Certification:: CE ISO

Quick Details

type:: Bench Drilling Machine

Max. Drilling Dia. (mm):: 80

Range of Spindle Speed(r.p.m):: 350 - 3000 r.p.m

Place of Origin:: china jiangsu

Brand Name:: aimaco

Model Number:: ZJW4116

Voltage:: 220v

Dimension(L*W*H):: 700x510x270

Weight (KG):: 40 KG

Motor power:: 550w

Chuck:: 16mm

Spindle travel:: 80mm

Spindle taper:: MT2

Speed change:: variable

Speed 50/60hz:: 350-3000

Swing:: 300mm

Working table:: 200x200mm

Base:: 360x220mm

Column:: 58mm

After-sales Service Provided:: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: Egypt, Canada, Algeria

Certification:: CE ISO

Recommend Products

Products Description

Drilling machine is a kind of machinery and equipment that uses harder and sharper tools than the target to leave cylindrical holes or holes on the target by rotary cutting or rotary extrusion.

1. Select the appropriate bit or bit according to the material to be drilled. 2. Adjust the appropriate rotation speed according to the drilling material. If the rotation speed is too fast, the hot and low melting point materials will soften, and if the rotation speed is too slow, the soft materials will adhere.

3. According to the depth and diameter of the hole drilled, determine the number of times of drilling machine feed. 4. Drilling machine is a high-speed rotary feed, need to pay attention to safety protection. 5. Pay attention to ensure the sharpness of the drill bit. It is necessary to grind or replace the drill bit regularly. 6. The drill shaft should be lubricated regularly.

Specification

Model	ZJM4116
Motor power	550w
Chuck	16mm
Spindle travel	80mm
Spindle taper	MT2
Speed change	variable
Speed 50/60hz	350-3000/420-3600r/min
Swing	300mm
Working table	200x200mm
Base	360x220mm
Column	58mm
Total height	900mm
Weight	40/38kg
Packing dimensions	700x510x270mm
Loading qty 20’ctnr	300pcs
