Quick Details
-
Marketing Type:
-
New Product 2023, Ordinary Product
-
Production Capacity:
-
240t/h
-
Power:
-
55kw
-
Place of Origin:
-
China
-
Brand Name:
-
Top Brand
-
Dimension(L*W*H):
-
5670*2070*3590mm, 5670*2070*3590mm
-
Paving speed:
-
0~10m/min
-
Travel speed:
-
0~3.3Km/h
-
Theoretical productivity:
-
300t/h
Quick Details
-
Max. Paving Thickness:
-
150mm
-
Weight:
-
12000 kg
-
Engine Brand:
-
Top Brand
-
Marketing Type:
-
New Product 2023, Ordinary Product
-
Production Capacity:
-
240t/h
-
Power:
-
55kw
-
Place of Origin:
-
China
-
Brand Name:
-
Top Brand
-
Dimension(L*W*H):
-
5670*2070*3590mm, 5670*2070*3590mm
-
Paving speed:
-
0~10m/min
-
Travel speed:
-
0~3.3Km/h
-
Theoretical productivity:
-
300t/h

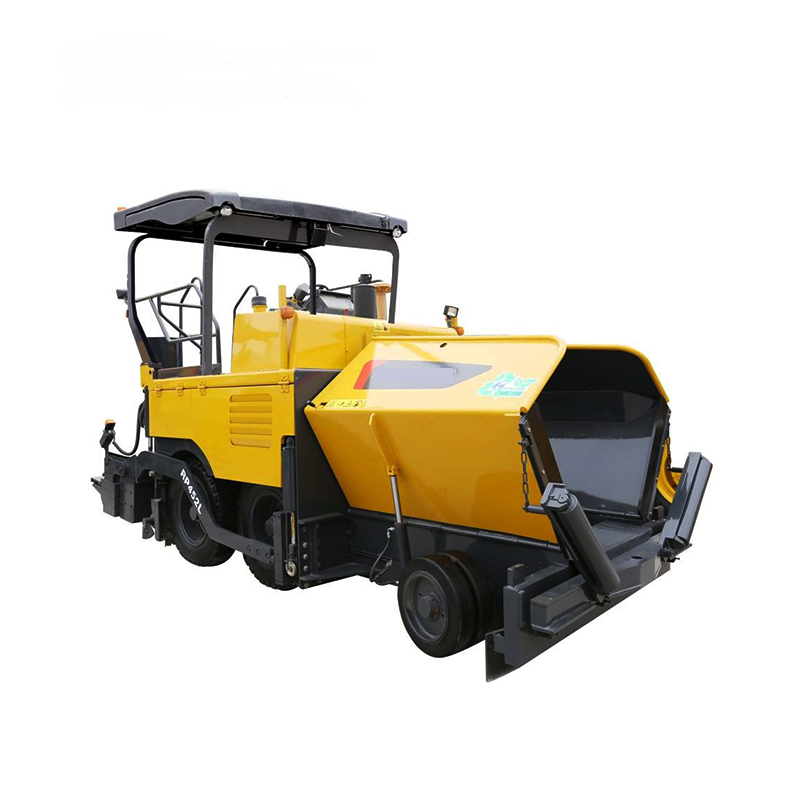

4.5M Road Construction Equipment Cement Concrete Paver RP452L
Product Description
RP452L features fast paving speed and is easy to be transferred from site to site.It's widely used in the construction and maintaining of roads of different grades,such as the municipal roads,city community roads,rural roads and highways ect..
The machine,with its small minimum paving width,is suitable for applications such as the paving of city community roads and scenery spot roads.
Hydraulically extendable screed enables the machine to deliver increased working width.
Four wheel drive increase the machine's ground adhesive force for various paving applications.
The material hopper with high load capacity of up to 12t provides perfect match to various dump trucks and ensures continuous paving.
Product Parameters
| Item | Unit | RP452L |
| Basic Working Width | m | 2 |
| Max Working Width | m | 4.5 |
| Max Paving Thickness | mm | 150 |
| Paving Speed | m/min | 0~13 |
| Traveling Speed | km/h | 0~13 |
| Theoretical Productivity | t/h | 240 |
| Hopper Capacity | t | 12 |
| Gradient Ability | % | 20(paving shift) |
| Smoothness | mm/3m | 3 |
| Slope Leveling Tolerance | % | ±0.02 |
| Crown adjust | % | 0~3 |
| Tamper revolution | r/min | |
| Tamper Amplitude | mm | |
| Engine Type | 4JR3G1(Shangchai) | |
| Rated power | kw | 55 |
| Rated revolution | rpm | 2200 |
| Weight | t | 10.5 |
| Overall Dimension | mm | 5670×2070×3590 |
