Quick Details
-
Brand Name:
-
Defond
-
Model Number:
-
DMC-1115-AA-0AH33-02R
-
Max. Current:
-
15(3)A, 12A, 15(3)A, 12A
-
Operating Temperature:
-
UL1054/CSA: 0-105℃ , ENEC/CQC: 0-85℃
-
Protection Level:
-
IP30, IP30
-
Conductive material:
-
Silver alloy
-
Electrical life:
-
UL1054: 6000cycles ENEC 50000Cycle
-
Operating force (range):
-
150-280gf
-
Insulation resistance:
-
50M ohm Min.
-
Contact resistance:
-
50m Ohm Max.
-
Pole:
-
1
-
Throw:
-
1
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC,12VDC, 250VAC,12VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Defond
-
Model Number:
-
DMC-1115-AA-0AH33-02R
-
Max. Current:
-
15(3)A, 12A, 15(3)A, 12A
-
Operating Temperature:
-
UL1054/CSA: 0-105℃ , ENEC/CQC: 0-85℃
-
Protection Level:
-
IP30, IP30
-
Conductive material:
-
Silver alloy
-
Electrical life:
-
UL1054: 6000cycles ENEC 50000Cycle
-
Operating force (range):
-
150-280gf
-
Insulation resistance:
-
50M ohm Min.
-
Contact resistance:
-
50m Ohm Max.
-
Pole:
-
1
-
Throw:
-
1
Product Description

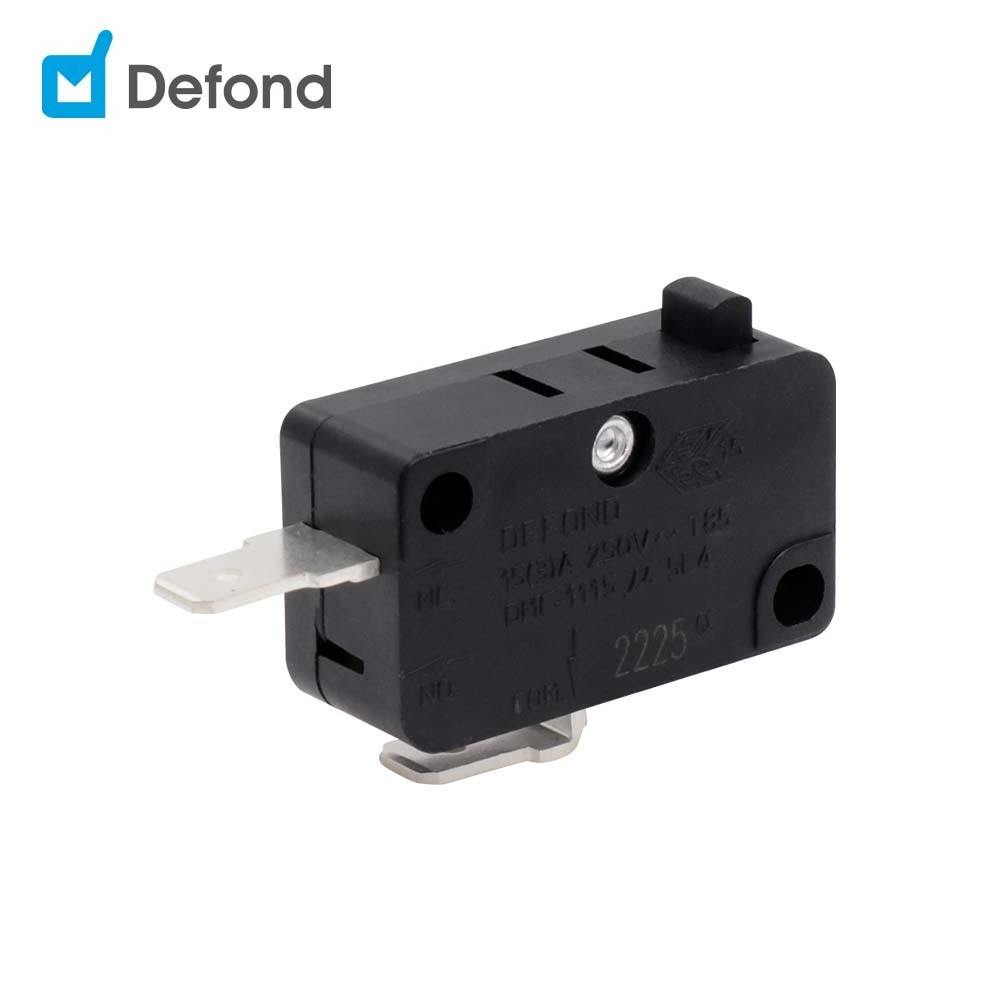

Defond Wholesale Price Switch Manufacturer Home Appliances Latching Micro Switch DMC-1115-AA-0AH33-02R for Mouse Rice Cooker
Micro switches are widely used in different situations that require a very quick opening or closing of circuit. Once an external force is applied to the actuator, it produces immediate transfer of contacts from one position to another. Defond micro switches come in a range of actuator styles, sizes, and are known as low cost yet high reliability and durability.
Feature
-High sensitivity and short traveling distance
-Long lifespan, high reliability
-Variety of terminals and levers shapes
-Large endurance
-Long lifespan, high reliability
-Variety of terminals and levers shapes
-Large endurance
Application
Kitchen appliances: microwave,rice cooker,blender
Floorcare appliances: Vacuum cleaner
Medical equipment
Floorcare appliances: Vacuum cleaner
Medical equipment
