new 2023 products electric cassava grater grating machine tapioca fufu machine grinding machine

new 2023 products electric cassava grater grating machine tapioca fufu machine grinding machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

≥2 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 100 KG

Machinery Function:: 500kg/h

Product name:: cassava grater machine

Color:: silver

Usage:: making garri or cassava flour

Material:: stainless or carbon steel

Voltage:: 380V

Application:: making garri/cassava flour

Advantage:: Saving energy and labour

Type:: cassava grinding

Function:: cassava flour or garri making machine

Quick Details

Marketing Type:: Hot Product 2023

Brand Name:: Doing

Place of Origin:: Henan, China

Weight:: 100 KG

Machinery Function:: 500kg/h

Product name:: cassava grater machine

Color:: silver

Usage:: making garri or cassava flour

Material:: stainless or carbon steel

Voltage:: 380V

Application:: making garri/cassava flour

Advantage:: Saving energy and labour

Type:: cassava grinding

Function:: cassava flour or garri making machine

Product Description

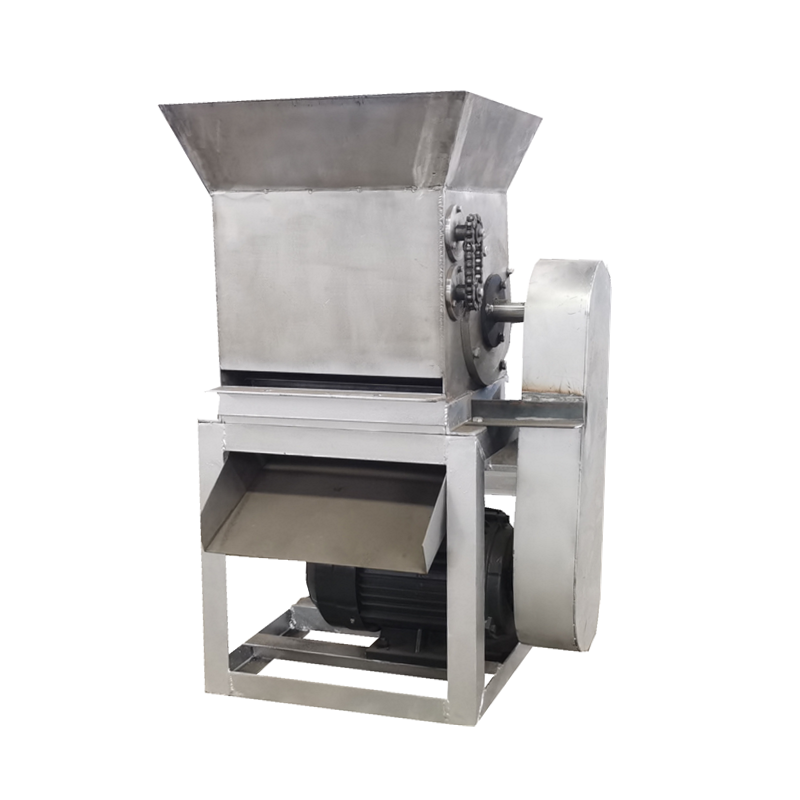

Cassava Garri Grating Machines

Cassava grating machine is used for crushing cassava tubers.The granularity of the crushed material is large, which can retain the original flavor of cassava. It is widely used in garri processing or other cassava processing industries with low requirements on crushing granularity.
The equipment recommends the motor power input. The transmission adopts the belt, sprocket, gear combination transmission mode, which can not only meet the requirements of high-speed movement of the file roller, but also meet the low-speed service condition of the feed roller. Customer can also choose a single cylinder diesel engine drive mode, in line with the customer needs of mobile convenience.

On the other hand, is due to the special design of the structure of our cassava grating machine, so that the fibers are not
separated after grating, which is more conducive to fermentation. The cassava grating machine has the characteristics of reliable performance, reasonable and compact structure, and safe and convenient use. Grating and separation are done in one time. In addition to producing garri, it is also suitable for small-scale cassava flour processing.

Equipment advantages:
(1) Fully enclosed energy-saving cassava grating machine with excellent performance, reasonable structure, compact, safe and reliable.
(2) High efficiency, labor saving, time saving, separation of cassava mash at one time, crushing even and delicate.
(3) Will not separate the fiber from the cassava mash, which is good for fermentation.

Parameter

Main technical parameters of cassava grater machine:

Model	Capacity(t/h)	Power(kw)
PS48-24	2-3	7.5
PS48-32	4-5	15
PS48-40	5-6	22
PS60-60	6.5-8	30-37
PS60-84	10-13	45-55
PS60-108	15-20	75

Garri processing plant

Garri processing is generally divided into cleaning,peeling,grinding,dehydration and frying.The garri processing plant required mainly includes dry sieve, paddle washing machine,cassava peeler,cassava grater,hydraulic press and garri fryer.

Type	Capacity	Degree of automation	Power
1	500kg/h	semi-automatic	50kw
2	1TPD		17kw
3	1TPD	semi-automatic	69kw
4	1TPD	automation	94kw
5	2TPD		18kw
6	3TPD		19.5kw

Details Images

Cassava cleaning machine

This is the firstly used garri making machine whose is mainly used to roughly clean the sand, small stones, dirt, weeds and other attached debris of cassava. This machine adopts multiple inner spirals design which can effectively push materials move forward.

The cleaning process is completed in the transportation process which makes it consume less power.

Cassava washing machine

The purpose of this garri making machine is to further wash the sand, soil and impurities of raw material. The machine for cassava washing is paddle washing machine. By adopting counter-current washing principle, this machine can effectively wash the raw material. The machine features with stable operation and low material damage. China Manufacture cassava processing plant garri processing machinery.

Cassava peeling machine

Cassava peeling machine is mainly for removing the outer peels and subcutaneous cuticle of cassava roots. It is not only a garri making machine but also can be used for cassava flour and cassava chips processing machinery. The contact part is made of stainless steel which can effectively prevent material from polluted. And the peeling rate of this machine is above 98%.

Cassva grating machine

Cassava grater is mostly used in garri production or small scale cassava flour factory. Our design can separate starch water from the grated cassava mash, which is very popular among clients.This equipment is a double-layer crusher. Firstly cassava roots will

be sent to the upper part pre-crushing and then material falls down to the second part for complete crushing. Finally, starch water will be separated and discharged from the bottom outlet and cassava mash will be sent out from the side outlet. According to client's request, our machine can be made of carbon steel or stainless steel. As for drive mode, it can be motor drive or diesel engine drive.

Dehydrating machine

The dehydrating machine uses the pricinple of hydraulic press to directly squeeze the water out of the material and then discharge it. This is also an important garri making machine, and Doing Company can design and manufacture the machine according to your requirements. And the parts which contact material is also made of stainless steel, so that it can ensure high quality of final products.

Hammer crusher

Hammer crusher is a device which use high speed rotating kinfe to break the raw material into mush.

1.Low enery consumption 2.high capacity 3.strong broken 4.easy maintenace

Garri frying machine

This is an automatically frying machine which can control temperature itself. The even and stable temperature can prevent pasting phenomenon. This garri making machine mainly consists of pan, frame, stirring part, heating part, driving part, discharge part and

others.

Garri sieving machine

Garri sieving machine is kind a special screening machine with high precision and high efficiency. Different size particles and powder materials could be separated continuously by the sieve through screens in different mesh, therefore, it can meet all kinds of requirements. DOING vibration sieve vertical-motor system can separate starch or cassava flour effectively, so it can promote the efficiency of the whole production line.

Garri packer

Garri packer is used for the quantitative packaging of garri. The whole weighing process is controlled by the computer and automatically packaged. The equipment integrates feeding, metering, weighing, packaging and conveying. It has the characteristics of reasonable structure, fast weighing, labor-saving, saving people, simple operation and accurate weighing.

Packing&Shipping

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Qingdao, Shanghai, Guangzhou, Ningbo

FAQ

Main questions about garri processing machine

1. Q : Are you a trading company or a manufacturer ?
A: We are a manufacturer, which has long experience in this industry.

2. Q: How can I get to your company ?
A: You can get a flight to CGO. We are just about 40- 50mins away from this Airport.

3. Q: How long is your guarantee ?
A: One year
