Quick Details
-
Screw Speed (rpm):
-
72 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Aifuer
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3800*800*1800
-
Power (kW):
-
2.8
-
Weight:
-
450 KG
-
L/D:
-
28: 1
-
Raw material:
-
PEEK PETG ABS PLA ASA
-
Screw type:
-
Single Srew
-
Capacity:
-
3-5kg/h
-
Motor:
-
ABB Motor
-
Cooling way:
-
air cooling
-
After-sales Service Provided:
-
Video technical support
-
Final product:
-
3D filament
-
Machine Length:
-
3800mm
-
Machine color:
-
Customized
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw diameter (mm):
-
25
-
Screw Speed (rpm):
-
72 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Aifuer
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3800*800*1800
-
Power (kW):
-
2.8
-
Weight:
-
450 KG
-
L/D:
-
28: 1
-
Raw material:
-
PEEK PETG ABS PLA ASA
-
Screw type:
-
Single Srew
-
Capacity:
-
3-5kg/h
-
Motor:
-
ABB Motor
-
Cooling way:
-
air cooling
-
After-sales Service Provided:
-
Video technical support
-
Final product:
-
3D filament
-
Machine Length:
-
3800mm
-
Machine color:
-
Customized
Products Description

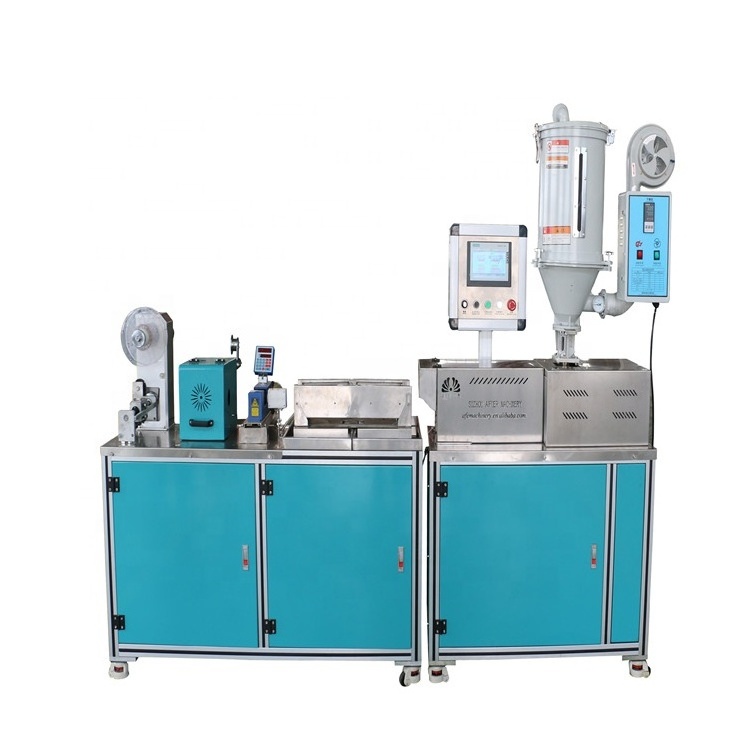

AFE28 Mini 3D Printer Filament Extruder Machin
e
3D printing technology has been applied in jewelry, footwear, industrial design, construction, engineering and construction,automobile, aerospace, dental and medical industries, education, geographic information system, civil engineering, guns and other fields.
Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clearer understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream material for 3D printing for a long time.
This mini 3D printing silk production line features automation, compact structure and small footprint.It uses ABS or PLA materials to make a series of diameter 3D printing silk to meet the needs of 3D printing.The diameter of the printed wire is 1.75mm and 3mm.
Based on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clearer understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstream material for 3D printing for a long time.
Features at a glance
Size:3800*550*1800mm
Filament dia: 1.75mm/3mm etc
Control system: PLC
Screw: SJ25/28 single screw
L/D: 28:1
Raw material: ABS PLA PETG PEEK ASA PP80%Carbon fiber20%
PA etc.
We have testing videos and detailed datas about above materials for your reference.
Specification
|
No.
|
Machine List for AFE28 (SJ25-28) 2.2KW Max. : 6kg/h
|
Qty.
|
|
1.
|
AFE28 single screw extruder
|
1set
|
|
2
|
PLC control system ( with closed loop function) Siemens brand
|
1set
|
|
3
|
Hopper dryer 15kg
|
1set
|
|
4
|
Extruding mould &die (1.75mm & 3.0mm )
|
2sets
|
|
5
|
Air cooling 800mm
|
1set
|
|
6
|
Hot water tank 700mm
|
1set
|
|
7
|
Water cooling tank 700mm
|
1set
|
|
8
|
Laser Diameter measurement (single axis)
|
1set
|
|
9
|
Servo haul off machine
|
1set
|
|
10
|
Servo Winding machine ( Neat and clean winding effect)
|
1set
|
|
No.
|
Machine List for AFE25 (SJ25-25) 0.75kw Max. : 3kg/h
|
|
|
Qty.
|
||
|
1
|
AFE25 single screw extruder (Control panel)
|
|
|
1set
|
||
|
2
|
Extruding mould &die (1.75mm & 3.0mm )
|
|
|
2sets
|
||
|
3
|
Hot water tank 200mm
|
|
|
1set
|
||
|
4
|
Water cooling tank 200mm
|
|
|
1set
|
||
|
5
|
Laser Diameter measurement (single axis)
|
|
|
1set
|
||
|
6
|
Servo haul off machine
|
|
|
1set
|
||
|
7
|
Winder
|
|
|
1set
|
||
Basic description
|
Raw material
|
PLA ABS PETG ASA PEEK etc.
|
|
Capacity
|
3-6kg/h
|
|
Filament dia.
|
1.75mm, 3mm etc, according to customer requirement
|
|
Filament dia. tolerance
|
+/-0.02-0.03mm
|
|
Speed
|
Adjustable
|
Company profile
Suzhou Aifuer Machinery Co.,Ltd.
We design and manufacture customized extrusion lines. We are familiar with kinds of plastic raw materials to help our customers choose the most suitable machines with the best quality. We are looking forward to cooperate with your to jointly seize opportunities, create new values towards prosperous, stable and sustainable development in the future.
Product Advantages
E-mail : sales2@aifuermachinery.com
What'sapp: +86 18205056103
Wechat :+86 18205056103
Tel: +86 18205056103
Certification
FAQ
Q1:What about the Terms of payment?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the Method of payment?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare parts?
A5:Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
