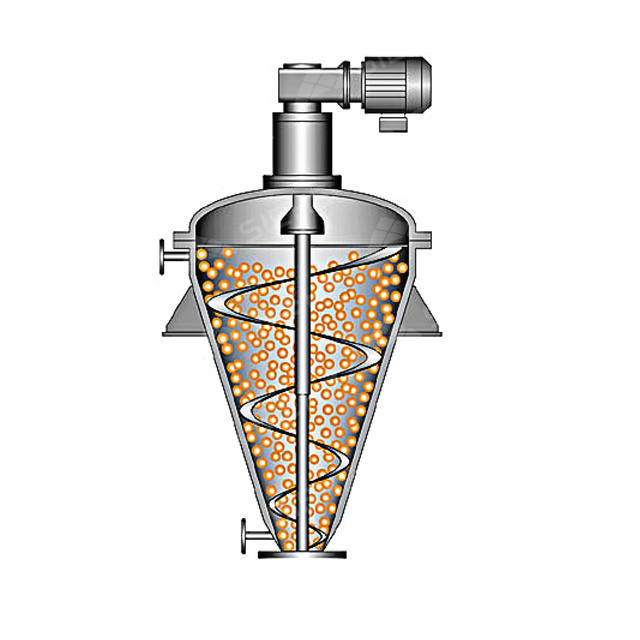

Chemical powder mixer conical spiral ribbon blender mixer

Chemical powder mixer conical spiral ribbon blender mixer

FOB Reference Price: Get Latest Price

≥1 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 1300 KG

Place of Origin:: Shanghai, China

Brand Name:: SIEHE

Voltage:: 220-600V, 3 phases

Power (kW):: 15 kW

Cover/ agitator:: Fixed / hydraulic lifting

Motor:: ABB / Siemens / WEG / Teco

Bearing:: NSK / SKF

Electric components:: Schneider

Heavy duty start:: Optional

Jacket:: Heating / cooling

Liquid spraying:: By pressure

Vacuum drying:: For option

Heating method:: Water/steam/oil

Quick Details

Barrel Volume (L):: 2000

Max. Loading Volume (L):: 1200 L

Range of Spindle Speed(r.p.m):: 5 - 60 r.p.m

Weight (KG):: 1300 KG

Place of Origin:: Shanghai, China

Brand Name:: SIEHE

Voltage:: 220-600V, 3 phases

Power (kW):: 15 kW

Cover/ agitator:: Fixed / hydraulic lifting

Motor:: ABB / Siemens / WEG / Teco

Bearing:: NSK / SKF

Electric components:: Schneider

Heavy duty start:: Optional

Jacket:: Heating / cooling

Liquid spraying:: By pressure

Vacuum drying:: For option

Heating method:: Water/steam/oil

Overview

Application

[Materials Specific Gravity]: Less than 5g/cm3
[batch capacity]: 40-15,000L

Milk powder, spices, protein powder, metallic powder, slurries and pastes, etc.

Model	SVZL-40
Power	1.1kw
Capacity	design volume 40 liters, work volume12-24 liters
Agitator	0-100rpm, VFD vertical ribbon agitators
Up-down	electrical lifting, stroke 600mm, with height diaplay
Outlet	DN100 pneumatic control ball valve
Material	contact part SS304
Optional	heating/cooling, vacuum, ex-proof, liquid spraying, etc.

Production type

easier to discharge finished products compared with horizontal mixers

hydraulic lifting type

(can be fixed type)

Installed on the platform

flat cover

openings on the cover: liquid inlet, powder hopper, sightglasses

side vibratory hammer

Detailed images

Model Select

Model	Power (KW)	Speed (rpm)	Thickness (mm)	Capacity (L)	Referential Size (mm) *( outer diameter Height)**	Weight (kg)
SVZL-0.1	2.2	60	3	40-60	φ715*1570	220
SVZL-0.3	2.2	41	3	120-180	φ920*1930	320
SVZL-0.5	4	41	3	200-300	φ1140*2320	410
SVZL-1	7.5	33	3	400-600	9φ1480*2870	900
SVZL-1.5	11	33	4	600-900	φ1630*3140	1200
SVZL-2	11	33	5	800-1200	φ1800*3490	1300
SVZL-3	15	33	5	1200-1800	φ2000*3760	2400
SVZL-4	18.5	26	5	1600-2400	φ2250*4425	2500
SVZL-6	22	26	6	2400-3600	φ2550*4425	2850
SVZL-8	30	20	6	3200-4800	φ2780*5360	4250
SVZL-10	37	20	6	4000-6000	φ3000*5815	5200
SVZL-15	55	20	8	6000-9000	φ3450*6540	6300

Remarks:

1. Not all products included, to learn more just connect us.

2. If any update of the data, without notice and subject to the official quote.

Auxiliary Devices

Unpacking and auto feeding raw materials

Spraying liquids during mixing

Auto packing
