China made best quality soil core sample drilling rig machine equipment for geological exploration

China made best quality soil core sample drilling rig machine equipment for geological exploration

FOB Reference Price: Get Latest Price

≥1 Sets

US $14980

≥10 Sets

US $11000

≥20 Sets

US $7500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 4000*1800*2450mm

Weight:: 5800 KG

Drilling Depth:: Customizable

Mobility:: Crawler Type/Wheel Type

Product name:: Water Well Drilling Rig

Application:: Water Well

Walking Speed:: 2.5km/h

Engine:: Diesel Engine

Hole diameter:: 140-305mm

Air consumption:: 17-30m3/min

Max Drilling Depth:: 200 Meter

Keyword:: Water Drilling Rig

Feature:: High Drilling Efficiency

Function:: Drilling Water Machine

Quick Details

Place of Origin:: Henan

Brand Name:: DS

Voltage:: Customizable

Dimension(L*W*H):: 4000*1800*2450mm

Weight:: 5800 KG

Drilling Depth:: Customizable

Mobility:: Crawler Type/Wheel Type

Product name:: Water Well Drilling Rig

Application:: Water Well

Walking Speed:: 2.5km/h

Engine:: Diesel Engine

Hole diameter:: 140-305mm

Air consumption:: 17-30m3/min

Max Drilling Depth:: 200 Meter

Keyword:: Water Drilling Rig

Feature:: High Drilling Efficiency

Function:: Drilling Water Machine

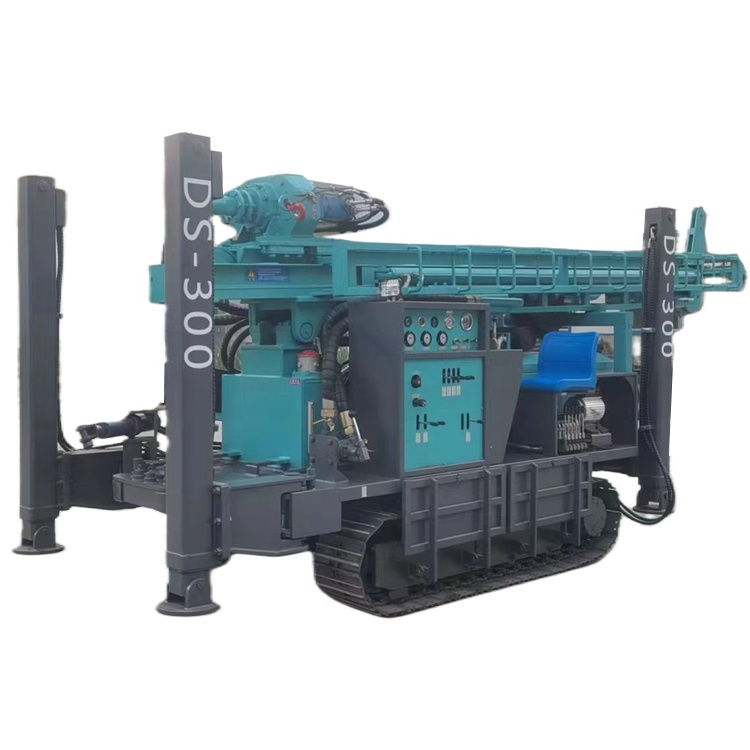

DTH pneumatic water well drilling rig machine

Products Description

Water well drilling rig

1. It is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.

2. This machine can drill in different stratum, The maximum bore diameter can be 450mm.

3. This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.

4. Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

5. This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.

6. Two gears rotation and feeding speed makes it work in soil and rock layers.

Model	DS-FY180	DS-FY200
Drilling depth	180m	200m
Hole diameter	140-254mm	140-305mm
Drilling angle	90-75°	90-75°
Walking Speed	2.5km/h	2.5km/h
Stroke	3300mm	3400mm
Climbing capacity	30 max	30 max
Ground clearance	250mm min	250mm min
Air pressure	1.7-2.5Mpa	1.7-3.0Mpa
Air consumption	17-30m3/min	17-30m3/min
Main power	55KW	65KW
Rotating speed	45-65rpm	45-70rpm
Rotating torque	3200-4600N.m	3500-4800N.m
Size	380015002200mm	400018002450mm
Weight	4.5T	5.8T

Pneumatic Drilling Rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.

Our drilling rig is equipped with high hydraulic outriggers. If you need this function, we can provide you with this configuration extra, because it can be convenient for you to install the drilling rig on a truck for long-distance transportation.
