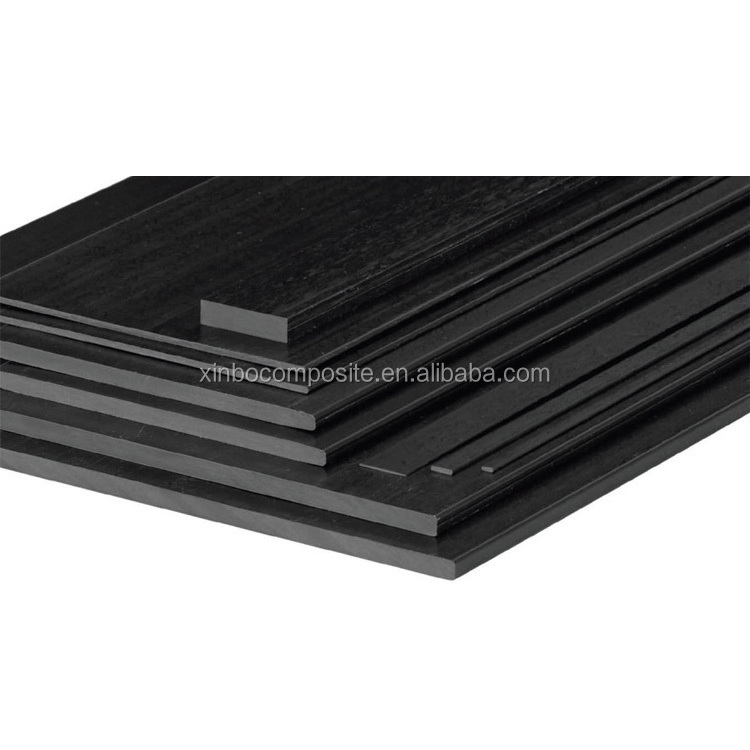

Pultruded carbon fiber flat strip square bar

Pultruded carbon fiber flat strip square bar

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

H Content (%):: N/A

Ash Content (%):: N/A

Place of Origin:: Shandong, China

Brand Name:: OEM

Model Number:: XINBO-CBP12

Dimensions:: According to order

Working Temperature:: -50-150

Volatile:: N/A

Item:: carbon fiber strip

Color:: Black

Technology:: Pultrusion

Surface:: UV, Glossy,Matte,3k weave

Material:: Carbon fiber

Length:: Optional

Feature:: ECO-friendly

Service:: OEM

Diameter:: Customers Request

Quick Details

C Content (%):: 100%CF

S Content (%):: N/A

N Content (%):: N/A

H Content (%):: N/A

Ash Content (%):: N/A

Place of Origin:: Shandong, China

Brand Name:: OEM

Model Number:: XINBO-CBP12

Dimensions:: According to order

Working Temperature:: -50-150

Volatile:: N/A

Item:: carbon fiber strip

Color:: Black

Technology:: Pultrusion

Surface:: UV, Glossy,Matte,3k weave

Material:: Carbon fiber

Length:: Optional

Feature:: ECO-friendly

Service:: OEM

Diameter:: Customers Request

Product Description

Product	Carbon Fiber Bar
Material	Carbon Fiber
Surface	Smooth
MIN Diameter	0.8mm
MAX Diameter	200mm
OD Tolerance	±0.1mm
Max Length	Endless , can be customized
Fiber Content	> 60%
Resin Content	< 40%
Color	Black
Application	- Aerial and drone systems - Safety & Protection - Reinforcemant bars for Roofs - Sports - Kite Frame - Antenna - Golf Sticks -Industrial Brushes

Manufacturing Technique

Pultrusion Process:

The Extruded process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerisation of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory. The extruded process guarantees an accurate design and measurement control, perfectly aligned fibres and a smooth surface. The technology is suitable for all types of fibres or a combination of fibre types. A high fibre-volume content is feasible, which makes it possible to reach a high specific rigidity and strength of the profiles. The serial character and the controllability of the process ensure a good price/quality ratio.

Fiber : Toray T700 or Equivalent strength fiber Tensile Strength : 4900 Mpa Tensile Modulus : 230 Gpa Fiber Content : > 60% Resin Content : < 40%

Product Advantages

1. Smooth Surface 2. High Stiffness 3. Anti-Corrosion 4. Low Thermal Expansivity 5. Low Fiber Density 6. Good Fatigue Resistance & Economical Price 7. Length is endless

Details Images
