1. Supporting tracing, tracing and middle-level three working modes
2. Supporting photoelectric sensor, ultrasonic sensor, CCD sensor and wide-band sensor
3. Intelligent detection of sensor parameters without calibration in most environments
4. Automatic travel measurement without mechanical limit switch
5. Variable PI adjusting algorithm without overshoot integral has high precision, quick response and less error.
6. Ultra-high speed 500 microseconds (0.5 milliseconds) response speed
7. 12-bit AD sampling of analog sensor signal, 700,000 sampling times per second
- Product Details
- {{item.text}}
Quick Details
-
Printing Type:
-
Offset Printing Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEYSEN
-
MOQ:
-
1set
-
Payment:
-
T/T
-
Model:
-
EPC-A12+LD104L80+Ultrasonic sensor / photoelectric sensor
-
Use for:
-
Align the edges of the coil
-
Color:
-
silvery white
-
Quality:
-
100% Original 100% Brand
-
Size:
-
53*28*17cm
-
Weight:
-
11KG
Quick Details
-
Condition:
-
New
-
Type:
-
webguding control system
-
Use:
-
all
-
Printing Type:
-
Offset Printing Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEYSEN
-
MOQ:
-
1set
-
Payment:
-
T/T
-
Model:
-
EPC-A12+LD104L80+Ultrasonic sensor / photoelectric sensor
-
Use for:
-
Align the edges of the coil
-
Color:
-
silvery white
-
Quality:
-
100% Original 100% Brand
-
Size:
-
53*28*17cm
-
Weight:
-
11KG
Product Description

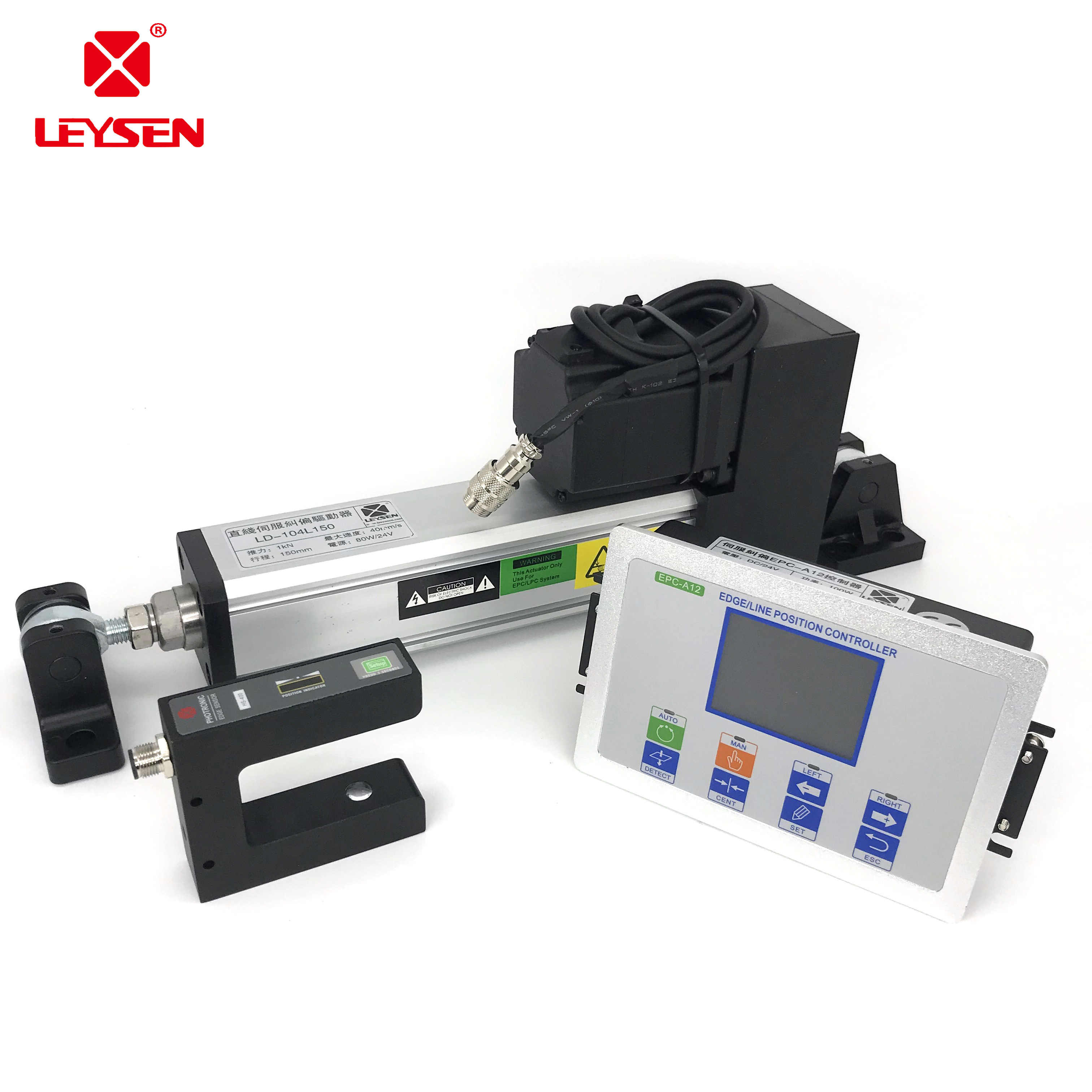

EPC-A12, LD series servo motor linear driver and photoelectric / ultrasonic sensor are used in the control system.
|
Control Mdoe
|
DC Servo Drive
|
|
Supply Voltage
|
DC 24V/5A
|
|
Control Input
|
DC 0~5A
|
|
Control Output
|
Three-Phase 24V,PWM
|
|
Speed Of Response
|
0.5msec
|
|
Environment
|
-10~60℃，≤RH90%
|
Functional Features
LD series of linear driver of servo
LD series of linear driver of servo motor is driven by brushless DC servo motor. Compared with other kinds of motors, LD series of linear driver of servo motor has the characteristics of high efficiency, fast speed, short response time, large starting torque,accurate braking and maintenance-free. The transmission part uses high precision ball screw, which has high transmission efficiency, less backlash and accurate positioning. It is suitable for high-speed and high-precision deviation correction applications.
1. Brushless servo motor drive, maintenance-free
2. Precision ball screw, accurate positioning
3. No mechanical stroke switch, the position is calculated by the encoder pulse.
4. Thrust 150 Kg to 200 Kg, maximum push 1.5T to 3T frame
5. Driving speed 14 mm/S to 400 mm/S
Model Specification
Installtion Size(mm)
Sensor
Ultrasonic sensor CS-400:Suitable for airtight materials (such as plastic film, paper, etc.)
Photoelectric sensor HS-400:Suitable for breathable materials (such as cloth, non-woven fabric, etc.)
Product Application
Related Products
Company Introduction
About Us
Leysen technology industrial co., ltd was founded in taiwan and has a professional design and development team. It mainly develops and produces high-precision magnetic powder clutches / brakes for industrial machinery, electromagnetic clutches/brakes, pneumatic clutches/brakes, tension control systems, rectification control systems, and gas. Industrial products such as expansion sleeves, safety chucks, aluminum guide wheels, rubber rollers, etc., provide various tension control and correction control solutions for the coiling equipment industry. The product quality is excellent and widely praised by customers,making the "leysen" brand a leader in the industry. Products are widely used in packaging machinery, printing machinery, electronic battery equipment, wire and cable machinery,Plate machinery, rubber and plastic machinery, food machinery, textile machinery, glass Machinery, woodworking machinery and other industries.
Packing&Shipping
FAQ
1:When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry.If you are very urgent to get the price,please call us or tell us in your email,so that we can regard your inquiry priority.
2:How should I place the order?
Please let us know the model number based on our specs for powder clutch,powder brake, air clutch,air brake,electromagnetic clutch,electromagnetic brake and safety chucks.
For air shafts,air adapter please show us your drawing,or let us know your request,and then we will provide you drawing for confirmation.
3:What's your MOQ basis?
Normally,we don't have MOQ request,except the customized mini clutches/brakes.
4:What about the lead time for production?
Honestly,it depends on the order quantity and the type of our products.For powder clutch,powder brake,tension controller,which is about 3-5days.For safety chucks,air shafts which need about 15-30days.
5:What is the term of?
We can arrange with EXW,FOB,CIF,etc.You can choose the most convenient one or cost-effective way.
