Quick Details
-
Brand Name:
-
MILFILM
-
Weight:
-
Depend on capacity
-
Size:
-
Depend on capacity
-
Productivity:
-
1core, 3cores, 5cores 7cores
-
Weight (KG):
-
40 kg
-
Product name:
-
Precision filter
-
Model:
-
MOLJM3-20
-
Dimension:
-
170*690mm
-
Filter size:
-
20inch
-
Filter cartridge:
-
PP filter
-
Filter quantity:
-
3pcs
-
Capacity:
-
2.25T/H
-
Certification:
-
ISO 9001
-
Performance:
-
Precision filtration, efficient filtration
Quick Details
-
Applicable Industries:
-
Water treatment equipment
-
Core Components:
-
Filter housing
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
MILFILM
-
Weight:
-
Depend on capacity
-
Size:
-
Depend on capacity
-
Productivity:
-
1core, 3cores, 5cores 7cores
-
Weight (KG):
-
40 kg
-
Product name:
-
Precision filter
-
Model:
-
MOLJM3-20
-
Dimension:
-
170*690mm
-
Filter size:
-
20inch
-
Filter cartridge:
-
PP filter
-
Filter quantity:
-
3pcs
-
Capacity:
-
2.25T/H
-
Certification:
-
ISO 9001
-
Performance:
-
Precision filtration, efficient filtration

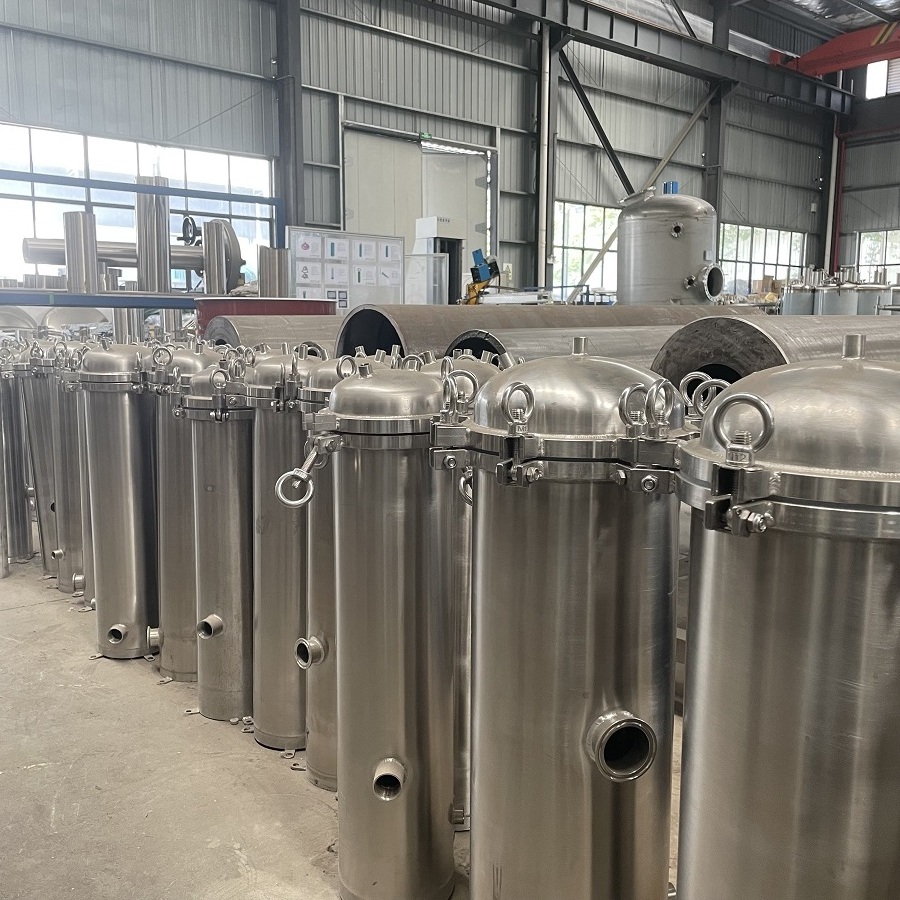

Security filter (also known as precision filter), made of SS304 or SS316 material, can be installed with different specifications and models of filter elements, such as PP filter element, wire wound filter element, activated carbon filter element, etc. Due to its large filtration area, fast speed, non clogging, and convenient use, it is widely used in pre-treatment and terminal microfiltration in various industries. Security filters come in quick open, flange, and clamp types.
Model for choice
| Model | Diameter | Height |
Process Capacity |
Cores | Material |
Inlet and outlet point size |
Pressure gauge point size |
Discharge point size |
| MOLJM3-20 | 170mm | 690mm | 2.25m3/h | 3 | SS304 / SS316 | 1" | 1/4" | 1/2" |
| MOLJM5-20 | 200mm | 700mm | 3.75 m3/h | 5 | SS304 / SS316 | 1.5" | 1/4" | 1/2" |
| MOLJM5-40 | 200mm | 1270mm | 5 m3/h | 5 | SS304 / SS316 | 1.5" | 1/4" | 1/2" |
| MOLJM7-20 | 230mm | 700mm | 5.25 m3/h | 7 | SS304 / SS316 | 1.5" | 1/4" | 1/2" |
| MOLJM7-40 | 230mm | 1310mm | 7 m3/h | 7 | SS304 / SS316 | 1.5" | 1/4" | 1/2" |
| MOLJM10-40 | 300mm | 720mm | 10 m3/h | 10 | SS304 / SS316 | 2" | 1/4" | 1/2" |
| MOLJM15-40 | 380mm | 1350mm | 15 m3/h | 15 | SS304 / SS316 | 2" | 1/4" | 1/2" |
| MOLJM19-40 | 400mm | 1400mm | 19 m3/h | 19 | SS304 / SS316 | DN50 Flange | 1/4" | 1/2" |
| MOLJM25-40 | 450mm | 1400mm | 25 m3/h | 25 | SS304 / SS316 | DN65 Flange | 1/4" | 1/2" |
We accept OEM services, please contac us for more details.
Q: What's the MOQ of the precision filter? Can i have a sample?
A: The MOQ is one pieces. We could provide sample, but you should pay the shipping cost.
Q: What's the delivery time of the security filter?
A: It depend on the quantity you ordered. Usually the delivery time is 5-15days.
Q: Could you do OEM services?
A: Yes. we can customize the filters as per the drawing you provide.
Q: Do you supply the accessories of the precision filter?
A: Yes, we also supply pressure gauge, PP filter cartridge, air drainage valve with good price.
Q: How can i be your agent?
A: We are looking for agent all over the world. we have good policy to support our agent to get win-win cooperation.
