Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
longta
-
Model Number:
-
customer require
-
Certificate:
-
ISO 9000/9001/9004/19011: 2000
-
Processing:
-
Electro forge welding
-
Material:
-
Mild steel
-
Bearing bar thickness:
-
from 3mm to 10mm
-
Bearing bar pitch:
-
12.5mm-101.6mm
-
Bearing bar Height:
-
20mm-150mm
-
Corss bar:
-
Round or twisted square
-
Dimension of cross bar:
-
5mm, 6mm, 8mm,
-
Finish:
-
Hot di Galvanizing
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
longta
-
Model Number:
-
customer require
-
Certificate:
-
ISO 9000/9001/9004/19011: 2000
-
Processing:
-
Electro forge welding
-
Material:
-
Mild steel
-
Bearing bar thickness:
-
from 3mm to 10mm
-
Bearing bar pitch:
-
12.5mm-101.6mm
-
Bearing bar Height:
-
20mm-150mm
-
Corss bar:
-
Round or twisted square
-
Dimension of cross bar:
-
5mm, 6mm, 8mm,
-
Finish:
-
Hot di Galvanizing
Steel structure is also in our products range. We have ability to produce according to customers' requirements.This kind of steel structure is used on oil industry. Oil pipes go through it and fix steadily. This product is designed for U.A.E customer.
Ningbo Jiulong Machinery Manufacturing Co.,Ltd is the largest steel grating manufacturer in China whose capacity is 70000 tons one year!! Our products are a part of construction.
We produce steel grating, stair tread, fence,clips, chench cover, handrail stanchion, walkway, steel ladder and so on. These products are widely used on mine, factory plant, Oil industry,shipbuilding, marine engineering, airport project, construction industry and so on.
Standard descriptions:
1. Bearing bar(load bar):20x3 ..... 75x10 mm.
2. Bearing bar pitch: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 35, 40mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3. Cross bar pitch: 38,50,76,100,101.6mm
4. Material: Q235, Stainless 304
5. Surface treatment: black, galvanized, paint
6.Standards:
1).China: YB/T 4001.1-2007
2).USA: ANSI/NAAMM(MBG531-88)
3).UK: BS4592-1987
4).Australia: AS1657-1985
| No | Item | Description |
| 1 | Bearing bar | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| 2 | Bear bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| 3 | Cross bar pitch | 38,50,76,100,101.6mm |
| 4 | Material | Q235,A36,SS304 |
| 5 | Surface treatment | Black, hot dipped galvanising, paint |
| 6 | Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | ||
| UK: BS4592-1987 | ||
| Australia: AS1657-1985 |

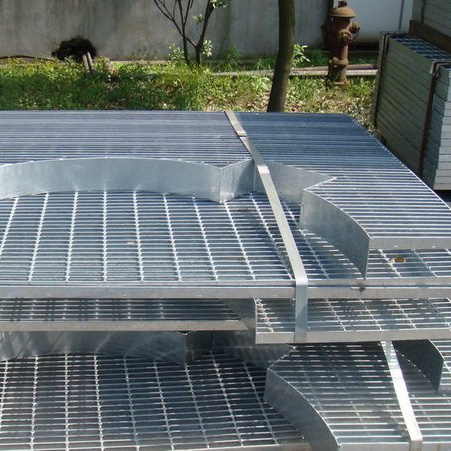

Irregular gratings:
