Quick Details
-
Design Printing:
-
No printing
-
Material:
-
acrylic
-
Feature:
-
Waterproof
-
Use:
-
Bag Sealing
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Puyu tape
-
Model Number:
-
PY-3010
-
Item:
-
heavy duty double sided foam tape acrylic adhesive sticker
-
Color:
-
Clear/white/black/grey
-
Thickness:
-
1mm
-
Standard Size:
-
12mm X 33M
-
Custom size:
-
Welcome
-
Die cut:
-
Supply
-
Heat resistance:
-
120 C
-
Application:
-
Glass,metal,plastic permanent bonding
-
Certificates:
-
ISO9001:2008
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
acrylic
-
Feature:
-
Waterproof
-
Use:
-
Bag Sealing
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Puyu tape
-
Model Number:
-
PY-3010
-
Item:
-
heavy duty double sided foam tape acrylic adhesive sticker
-
Color:
-
Clear/white/black/grey
-
Thickness:
-
1mm
-
Standard Size:
-
12mm X 33M
-
Custom size:
-
Welcome
-
Die cut:
-
Supply
-
Heat resistance:
-
120 C
-
Application:
-
Glass,metal,plastic permanent bonding
-
Certificates:
-
ISO9001:2008
Product Description

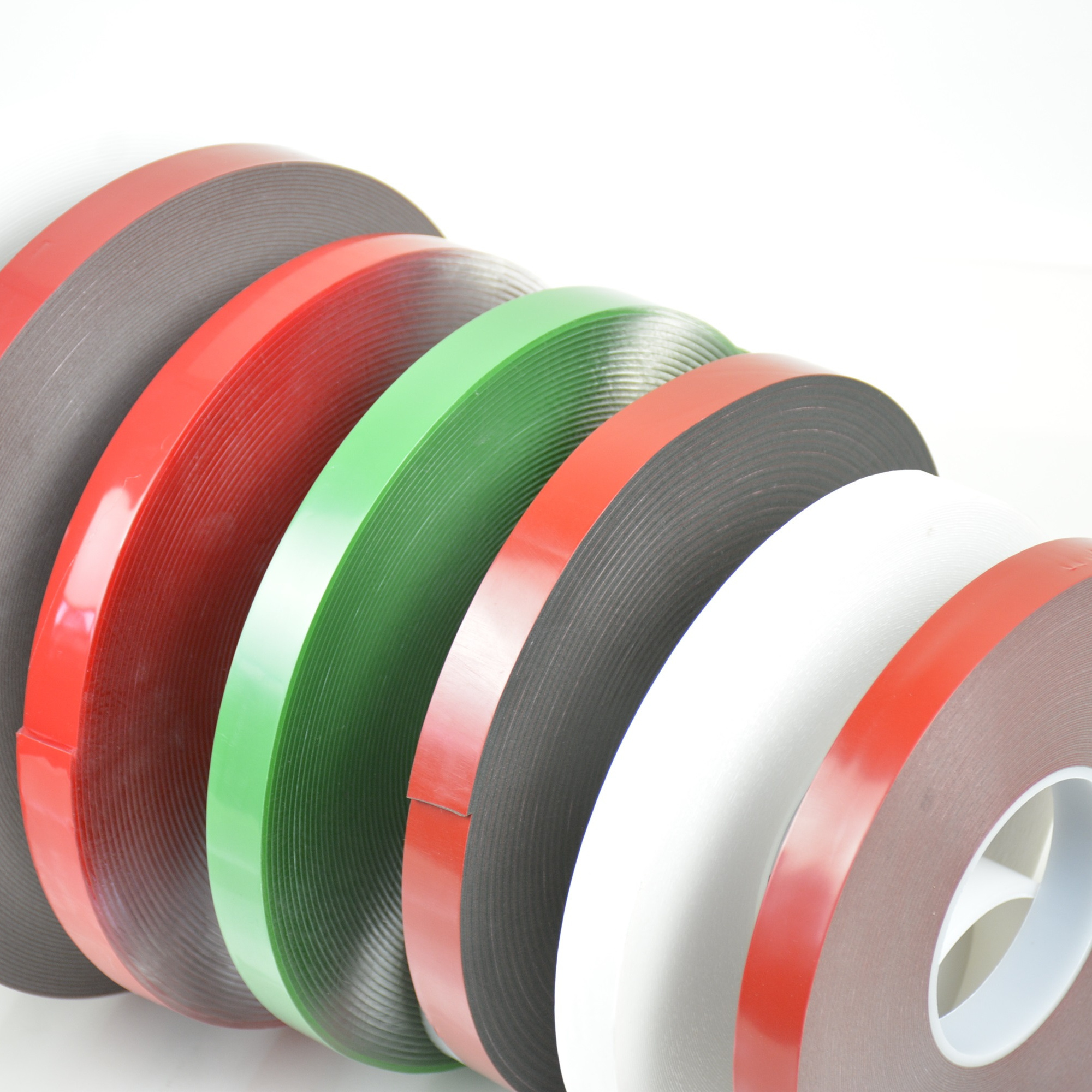

Double sided acrylic foam tape
Acrylic foam tape made with acrylic foam which is viscoelastic in nature.It's idea for use in many interior and exterior bonding applications. In many situations,they can replace rivets,spot welds,liquid adhesive and other permanent fasteners.
|
Test Item
|
|
Date
|
|
Test method
|
||
|
Adhesion to Steel
|
|
≧42N/25mm
|
|
GB/T 2792 -2014
|
||
|
Holding power
|
|
≧24H
|
|
GB/T 4851-2014
|
||
|
Total Thickness(W/O liner)
|
|
1.0mm
|
|
GB/T 7125-2014
|
||
|
Temperature Use Range
|
|
≧320°F (160°C)
|
|
Short time 4H Static 100g hang
|
||
|
Temperature Use Range
|
|
≧248°F (120°C)
|
|
Long time 10000min Static 250g hang
|
||
Different thickness for different uses
Different thickness for you choose,normally from 0.25mm to 4mm
Different color for different market
Different tape color for choose.
Tape color: White, grey, clear, black
Liner color: Red, green, blue , white
Liner color: Red, green, blue , white
Custom size available,just let me know your drawing or application,solutions will be offered
Acrylic foam tape application
1, Replacing mechanical fixation such as screws,rivets,liquid adhesives and other permanent fasteners.
2, Mounting of signs and nameplates in display exhibition industry.
3, Vehicle interiors and exteriors of automotive industry.
4, For window glazing or metal bonding
5, Best die-cut tape to mount various of precison molded parts.
Acrylic foam tape feature
1, Excellent adhesion to a broad range of surface energy.
2, Outstanding durability performance.
3, A variety of color and release liner types.
4, Excellent solvent and moisture resistance.
5, High temperature resistant
5, Easy for cutting
Click pictures below, you will know more about other double sided tapes we can supply
Double sided tissue tape
Material: Tissue paper
Adhesive: Acrylic adhesive solvent based / hot melt adhesive
Tape color:
Translucent
Liner color: White
Double sided PE foam tape
Material: PE foam
Adhesive: Acrylic adhesive
Tape color: White / Black
Liner color: Green,Blue,Red
Product packaging
Plastic bag packing and label sticked
Some rolls packed in one plastic bag,each roll seperated by white release paper
Box packing
Tape will be packed in strong box ,shipped safety !
Custom package
Custom package available,tell me your design and idea,then we could go ahead
Pallet packing
Tapes put on strong pallet,then wrapped with packing strips and stretch film
Excellent quality and warm service are not enough to win in competitive acrylic foam tape market. We also offer strong packing to make sure product will be kept well when delivery. Talk to us directly,and we can do packing as your request.
Company
Shanghai Puyu New Material Technology Co.,Ltd.
Focus On Adhesive Tapes.We have two automatic, high-precision, high-standard foreign glue coating production line.Established Class 10,000 dust- free system workshop equip with domestic high-level environmental RTO heat recovery equipment to protect the environment.We have 20 sets equipment about all kinds of processing rewinding, cutting, die cutting, slitting
Tape research
Glue research
Experienced engineer researching glue.Different formula will have different feature,it's also the key to tape quality.
Raw material
After research and mixed,raw material glue put in it's place ready for use.
Peel strength testing machine
Tape peel strength will be test in this machine. The testing will be doing in constant temperature and humidity,and engineer will follow operation guide strictly.Testing result will be showed on computer directly.
Testing situation
All tape will be tested at least 3 times to make sure result as accurate as possible.
Holding power testing machine
This is machine to test holding power,this is important feature of tapes,it determine how long time the tape could hold your sticked surface.
Temperature testing machine
After setting machine,we will test how long and what temperature the tape could bear.
Coating line
Coating jumbo roll
Coating the acrylic foam tape in jumbo roll,we could make length as you want.
Coating tape in different color
Grey,clear,white and black,we could do tape color as your request.
Sliting and rewinding machine
Sliting machine
3 sets sliting machine,we could makes tapes width as you want.
Rewinding machine
Laminating tape on material as request
Sample making machine
Small sample making machine
Using this machine to make sample
Laser sample making machine
Using laser cut the tape in shape we want
Fully automatic operation screen
Automatic screen make all operation accurated.
Die cutting process
Die cutting room
We have full set machine to offer die cutting service
Die cutting worker
Die cutting tape into shape you want
Warehouse
More factory picture
Clients from all over the world
Sending inquiry as blow,get a sample now.
