Important equipment such as high-voltage switch cabinets, ring network cabinets, high-voltage cable joints, and knife switches of the power system may experience equipment aging, surface oxidation, corrosion, and loosening of fastening bolts during long-term operation. In addition, long-term high-load operation of many electrical equipment can easily cause temperature abnormalities. If it is not discovered and handled in time, it may cause safety accidents such as melting, burning or even explosion. On the other hand, the electrical characteristics of power equipment require the monitoring system to collect temperature in a passive and wireless manner. At the same time, the monitoring system is required to record the temperature of key equipment nodes (such as bus bars, dynamic and static contacts, plugs, etc.) in real time and use it in big data. Security warning based on analysis
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Jietong
-
Dimensions:
-
164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
-
Weight:
-
654g / 23.07oz
-
Display:
-
5.2'' IPS FHD 1920x1080
-
Reading Distance:
-
5m
-
Communication interface:
-
Type-C USB
-
Color:
-
Black
-
Name:
-
UHF RFID Handheld Reader
-
Application:
-
Warehouse Management
-
Support:
-
ISO18000-6B/6C(EPC GEN2)
-
Warranty:
-
One Year
Quick Details
-
Frequency:
-
860-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jietong
-
Dimensions:
-
164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
-
Weight:
-
654g / 23.07oz
-
Display:
-
5.2'' IPS FHD 1920x1080
-
Reading Distance:
-
5m
-
Communication interface:
-
Type-C USB
-
Color:
-
Black
-
Name:
-
UHF RFID Handheld Reader
-
Application:
-
Warehouse Management
-
Support:
-
ISO18000-6B/6C(EPC GEN2)
-
Warranty:
-
One Year
Product Description

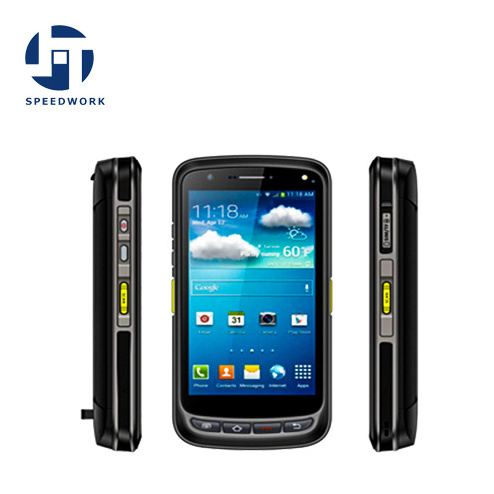

Jietong Android 11.0 2D Barcode Scanning EPC C1 GEN2 ISO18000-6 UHF RFID Handheld Reader For Warehouse Management JT-972
JT-972 device is an Android rugged mobile computer. It features powerful processor, 8000 mah battery and superb UHF RFID capability. It can be equipped with R2000 linearly or circularly polarized antenna. That it can read tags in bulk from long distance enables it to be deployed in asset management, retail, warehousing, fleet management and etc.
Specification
|
Performance
|
value
|
|
|
Quad-core
|
China
|
|
|
Android 8.1
|
|
|
|
Operating System
|
Android 8.1; Soti MobiControl, SafeUEM supported
|
|
|
CPU
|
Cortex-A53 2.5 GHz Octa-core
|
|
|
RAM+ROM
|
3 GB + 32 GB / 4 GB + 64 GB (optional)
|
|
|
Expansion
|
Supports up to 128 GB Micro SD card
|
|
|
Android 11.0
|
|
|
|
Operating System
|
Android 11.0; Soti MobiControl, SafeUEM supported
|
|
|
CPU
|
Cortex-A53 2.3 GHz Octa-core
|
|
|
RAM+ROM
|
3 GB + 32 GB / 4 GB + 64 GB (optional)
|
|
|
Expansion
|
Supports up to 128 GB Micro SD card
|
|
|
Communication
|
|
|
|
Android 8.1
|
|
|
|
WLAN
|
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal
antenna |
|
|
Bluetooth
|
Bluetooth v2.1+EDR, 3.0+HS, v4.1+HS
|
|
|
GNSS
|
GPS/AGPS, GLONASS, BeiDou; internal antenna
|
|
|
WWAN (China)
|
2G: 900/1800 MHz
|
|
|
|
3G: WCDMA: B1,B8
CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 |
|
|
|
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
|
|
|
WWAN (Overseas)
|
2G: 850/900/1800/1900 MHz
|
|
|
|
3G: B1,B2,B4,B5,B8
|
|
|
|
4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66
|
|
|
Android 11.0
|
|
|
|
WLAN
|
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal
antenna |
|
|
Bluetooth
|
Bluetooth 5.0
|
|
|
GNSS
|
GPS/AGPS, GLONASS, BeiDou; internal antenna
|
|
|
|
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA: A/F 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/ B34/B38/B39/B40/B41 |
|
|
Physical Characteristics
|
|
|
|
Dimensions
|
164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
|
|
|
Weight
|
654 g / 23.07 oz.
|
|
|
Display
|
5.2'' IPS FHD 1920 x 1080
|
|
|
Touch Panel
|
Corning Gorilla Glass, multi-touch panel, gloves and
wet hands supported |
|
|
|
Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
|
|
Expansion Slot
|
1 slot for SIM card, 1 slot for SIM or TF card
|
|
|
Interfaces
|
USB 2.0 Type-C, OTG, Type-C headphones supported
|
|
|
Audio
|
Speaker, 2 microphones
|
|
|
Keypad
|
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
|
|
|
Sensors
|
Gravity sensor, light sensor, proximity sensor
|
|
|
Data Collection
|
|
|
|
UHF
|
|
|
|
Frequency
|
865-868 MHz / 920-925 MHz / 902-928 MHz
|
|
|
Protocol
|
EPC C1 GEN2 / ISO18000-6C
|
|
|
Antenna
|
Circular polarization (4dBi), linear polarization(1.8dBi)
|
|
|
Power
|
1 W (30 dBm, +5 dBm to +30 dBm adjustable)
2 W Optional (33 dBm, for Latin America, etc.) |
|
|
R/W range
|
Up to 15 m (circular polarization, open outdoors, Impinj
MR6 tag); up to 7 m (linear polarization, open outdoors) |
|
|
Fastest Read Rate
|
900+ tags/sec (circular polarization)
|
|
|
* Ranges and rates depend on tags and environment
|
|
|
Application
Temperature Measurement
Warehouse Management
Radio Frequency Identification, commonly known as "electronic tag", is a non-contact automatic identification technology. It automatically recognizes the target object and obtains related data through radio frequency signals. The identification work does not require human intervention. As a wireless version of bar code, RFID technology has bar code technology. It does not have the advantages of waterproof, anti-magnetic, high temperature resistance, long service life, large reading distance, data on the label can be encrypted, storage data capacity larger, and storage information can be changed freely. Revolutionary changes brought by RFID to warehouse management
Packing & Delivery
1piece per box
