Quick Details
-
Interface Standard:
-
Type 1
-
Output Current:
-
8A 12A 16A 24A 40A 48A
-
Output Power:
-
11.5KW
-
Input Voltage:
-
80V-265V
-
Product name::
-
AC Fast EV Charger Station
-
Model Name::
-
HKAC 32 EU/HKAC 32 US
-
AC Input Rating::
-
230Vac / Single Phase ; 400Vac /Three Phase
-
AC Input Connection::
-
L/N/PE; 3P/N/PE
-
Max.Input Current (A):
-
32
-
AC Input Frequency (Hz):
-
45-65
-
Display::
-
3.5 Inch LCD
-
User Atttentication::
-
RFID ISO/IEC 14443A/B
-
Communication Internal::
-
OCPP 1.6 Json
-
Charging Interface::
-
IEC 62196-2:2016
Quick Details
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
P12
-
Brand Name:
-
Hici
-
Interface Standard:
-
Type 1
-
Output Current:
-
8A 12A 16A 24A 40A 48A
-
Output Power:
-
11.5KW
-
Input Voltage:
-
80V-265V
-
Product name::
-
AC Fast EV Charger Station
-
Model Name::
-
HKAC 32 EU/HKAC 32 US
-
AC Input Rating::
-
230Vac / Single Phase ; 400Vac /Three Phase
-
AC Input Connection::
-
L/N/PE; 3P/N/PE
-
Max.Input Current (A):
-
32
-
AC Input Frequency (Hz):
-
45-65
-
Display::
-
3.5 Inch LCD
-
User Atttentication::
-
RFID ISO/IEC 14443A/B
-
Communication Internal::
-
OCPP 1.6 Json
-
Charging Interface::
-
IEC 62196-2:2016

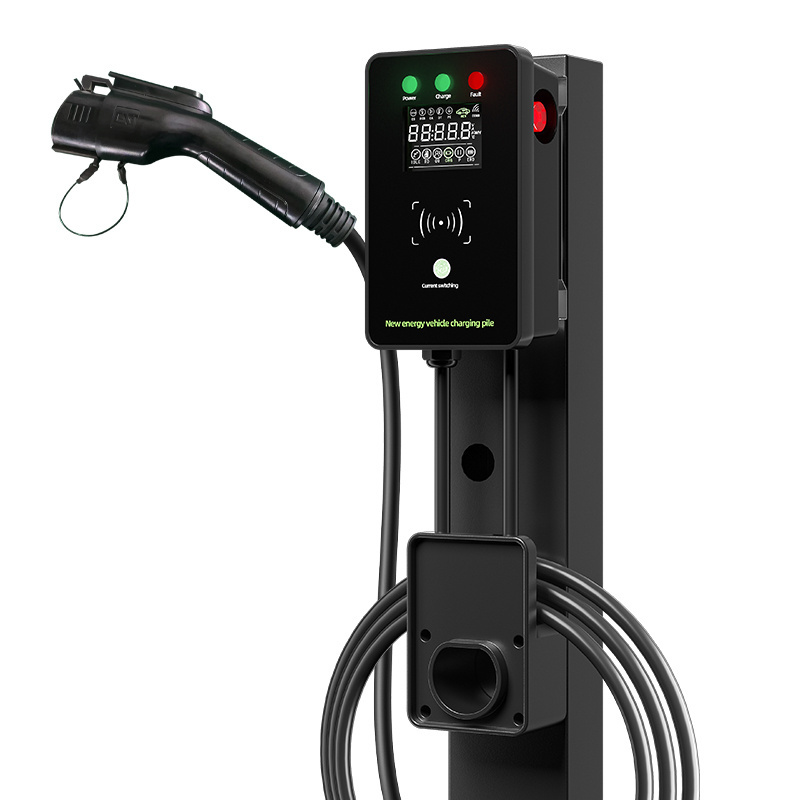

Type 1 AC EV Charging Station 48 Amp Level 2 EVSE Charger Station 240V Input
Home & Public AC Charging Station
Leading Manufacturer of Electric Vehicle Charging System
Hich Tech is a Leading Manufacturer of Electric Vehicle Charging System in CHINA, Developting Advance DC And AC Charging System With Power range From 7KW -600kW, With Over thousand Charging System Sold worldwide, DC Fast and AC Chargers Serve Charge Point Operators, Oil & Gas, Convenient Stores, Retail Centers, Fleets and More for Charging Electric Vehicles, Heavy Duty Transit Shuttle and School Buses, Fleets, and Other Specialty Vehicles.
What is AC EV Charging Station ?
Its's Called The "On board Charger"Though it Rreally is a Converter, It Converts Power From AC To DC and Then Feeds it ito the Car's Battery, This is the Most Common Charging Method For Electric Vehicles today And Most Chargers Use AC Power.
AC Charger Features:
- Commercial Garde AC Level 2 Chargers with Power Output From 7.6KW -22KW
- IEC 62196-2 / SAEJ1772 Type 2 and Type 1 Socket or Charging Cable
- Open Charge Point Protocal (OCPP) 1.6
- User-Friendly With RFID
- Ethernet, 4G And Wifi Network Connections
- IP55 Rated Design Ideal For Outdoor Installation
- Wall of Floor-Mounted Versions Available
- Designed for Easy Installation and Maintenance
- CE.IEC 71851-1,IEC61851-22-1
- Designed for 230VAC 50Hz Single-Phase and 380-415VAC 50Hz Three-Phase.
Technical Specification:
| Category | HKAC Series | ||
| Model Name: | HKAC 32 (EU) | HKAC 32 (US) | |
| AC Input | Input Rating |
230VAC/Single Phase 400vac/Three Phase |
208-240vac/1Phase (AC Level 2) 400VAC/Three Phase |
| MAX.Input Current (A) | 32 | ||
| AC Input Connection |
L/N/PE 3P/N/PE |
||
| Frequency (Hz) | 45-65 | ||
| Residual Current Device(Type B Optional) |
Type A:30mA ; Type B: 30mA+dc 6 mA |
||
| User Interface & Control | Display | 3.5' Inch Touch Screen | |
| User Authentication | RFID ISO/IEC 14443A/B | ||
| Display Information | Current,Energy | ||
| Communication | External | Ethernet /4G/3G | |
| Internal | OCPP 1.6 JSON | ||
| Environmental | Operating Temperature (ºC) | -30~+50,Power derating from 50 and above | |
| Humidity (%) | 5~95RH,Power Derating from 50 and Above | ||
| Altitude (m) | </= 2500m | ||
| IP Level | IP54 | NEMA TYPE 3R | |
| Cooling Method | Natural Cooling | ||
| Mechanical | Dimension (W*D*H)mm |
160*280*398.5 (Wall Mounted Type) 181.5*280*1515 (Floor Mounted Type) |
|
| Weight (KG) |
≤14kg (Wall Mounted Type) ≤20kg (Floor Mounted Type) |
||
| Cable Length (m) | 5Meter | ||
| Protection | Input Protection | OCP:<35.2A / OVP:>275/UVP:<160V | |
| Output Protection | OCP:<35.2A / OVP:>275/UVP:<160V | ||
| Regulation | Certificate |
IEC 61851-1:2017 IEC 61851-21-2 |
UL2594,UL2231-1/-2 |
| Safety | CE | UL/cUL | |
| Charging Interface | IEC62196-2:2016,Type 2 Plut | SAEJ1772 Type 1 Plug | |
