Quick Details
-
Brand Name:
-
Hong Jin
-
Product name:
-

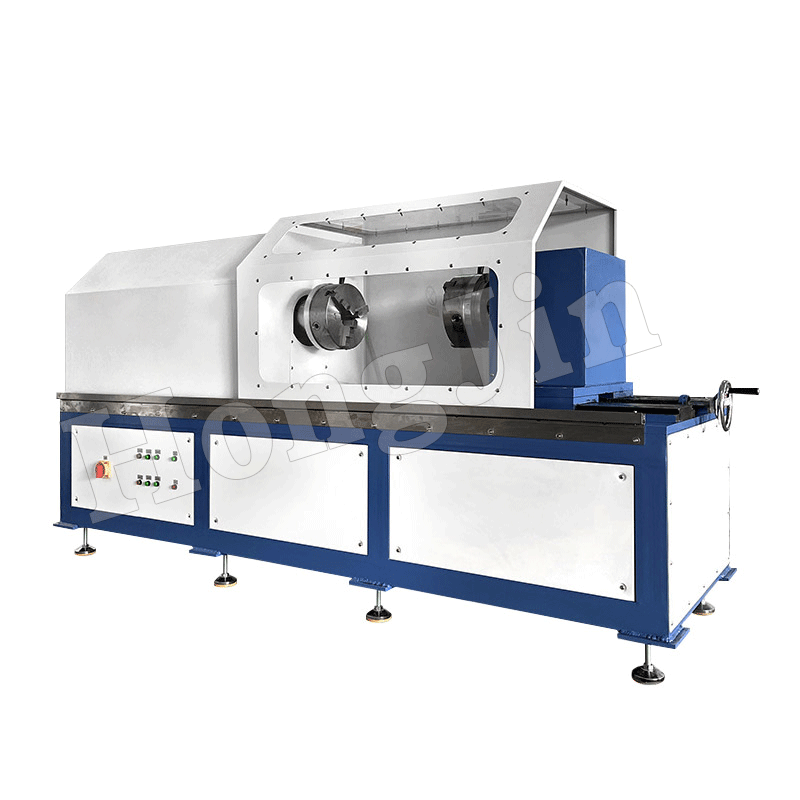

Torsion testing machine
-
Application:
-
Widely
-
Power supply:
-
AC220V 50HZ
-
Color:
-
Customer Required
-
Material:
-
Stainless Steel
-
MOQ:
-
1PCS
-
Brand:
-
Hong Jin
-
Port:
-
Shen Zhen
-
Delivery time:
-
7-15days
-
Packing:
-
Wooden Packing
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hong Jin
-
Product name:
-
Torsion testing machine
-
Application:
-
Widely
-
Power supply:
-
AC220V 50HZ
-
Color:
-
Customer Required
-
Material:
-
Stainless Steel
-
MOQ:
-
1PCS
-
Brand:
-
Hong Jin
-
Port:
-
Shen Zhen
-
Delivery time:
-
7-15days
-
Packing:
-
Wooden Packing
Product Paramenters
Scope of application:
Torsion life testing machine for metal materialsThis series of testing machine conforms to GB/T10128-2007, mainly suitable for metal materials, non-metallic materials, composite materials and components torsional performance test. The machine is composed of AC servo control motor output loading, high precision torque sensor to detect torque, photoelectric encoder to detect Angle, computer display test results, high rigidity, high precision and high load linear guide rail and other components.
information is intuitive and comprehensive.With unique automatic operation mode, multi-point measurement can effectively improve work efficiency.Compact structure, line optimization design, with high anti-interference ability.
Product features:
Adopt high-speed single chip microcomputer, as the main control chip, the whole machine response quickly, comprehensive function. The use of special signal amplifier, high precision, high stability voltage reference, through high precision digital-to-analog converter, to ensure that the instrument has a very high resolution and repeatability. The LCD screen is used as the display device, the interface and parameters are prompted by Chinese characters, and the display
information is intuitive and comprehensive.With unique automatic operation mode, multi-point measurement can effectively improve work efficiency.Compact structure, line optimization design, with high anti-interference ability.
Device function
The main test operation and control functions are integrated on the main control panel, easy to operate and clear display.
Numerical display window includes: torque display window (including peak value display window), Angle display window.
The main test operation and control functions are integrated on the main control panel, easy to operate and clear display.
Numerical display window includes: torque display window (including peak value display window), Angle display window.
|
Torque:
|
3000N.m
|
|
Torque range:
|
2%-100% N.m;
|
|
Relative error of torque indication:
|
Plus or minus 1.0%;
|
|
Level:
|
Level 1
|
|
Torque resolution:
|
1/±100000;
|
|
Torsion Angle measurement range:
|
0 ~ 9999 °
|
|
Angular resolution:
|
0.01 °
|
|
Relative error of torsion Angle indication:
|
±1.0%;
|
|
Relative error of speed indication value:
|
±1.0%;
|
|
Clamping distance:
|
0~1000mm ;
|
|
Power supply:
|
AC 220V+10%, 50Hz;
|
|
Net size of main machine:
|
2390*600*1350mm
|
|
Main machine weight:
|
About 1300kg
|
