RZ050 sensor to switch off AC motion sensor for air conditioner

RZ050 sensor to switch off AC motion sensor for air conditioner

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20

≥100 Pieces

US $19

≥500 Pieces

US $18

≥1000 Pieces

US $17

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting Type:: wireless install

Description:: wireless battery powered motion senso, RZ050 motion sensor, auto off motion sensor controller for air conditioner

Model Number:: RZ050

Place of Origin:: Guangdong, China

Brand Name:: Rayzeek

Theory:: PIR motion sensor and IR transmit

Output:: same as input

Model:: RZ050

Product Type:: PIR motion sensor and IR transmit

Input Voltage:: 2.5V-3.5VDC (2 AAA batteries)

Motion Detecting range:: 6-9M Max

IR transmitting range:: <10M

IR Transmitting direction:: 30 degree

Time delay options:: 15min, 30min, 1h(default), 2h.

Mounting:: Screwing or sticking on the wall.

Size:: 45 x 70 x 64 mm

Quick Details

Usage:: motion sensor for air conditioner

Series:: PIR Motion Sensor controller for air conditioner

Features:: motion sensorfor air conditioner

Mounting Type:: wireless install

Description:: wireless battery powered motion senso, RZ050 motion sensor, auto off motion sensor controller for air conditioner

Model Number:: RZ050

Place of Origin:: Guangdong, China

Brand Name:: Rayzeek

Theory:: PIR motion sensor and IR transmit

Output:: same as input

Model:: RZ050

Product Type:: PIR motion sensor and IR transmit

Input Voltage:: 2.5V-3.5VDC (2 AAA batteries)

Motion Detecting range:: 6-9M Max

IR transmitting range:: <10M

IR Transmitting direction:: 30 degree

Time delay options:: 15min, 30min, 1h(default), 2h.

Mounting:: Screwing or sticking on the wall.

Size:: 45 x 70 x 64 mm

Products Description

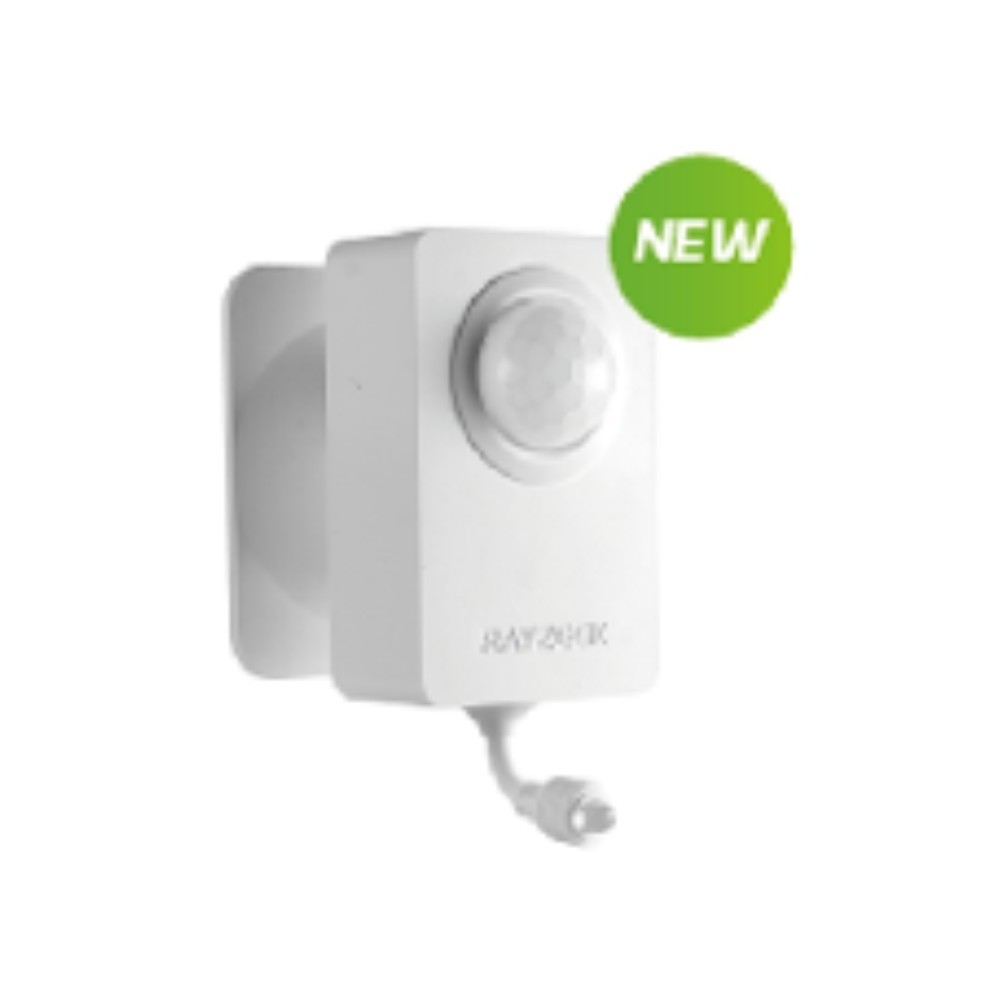

RZ050 motion sensor for air conditioner auto off wireless battery powered motion sensor controller

The RZ050 is an air conditioner motion sensor controller that can automatically turn off the AC left running in an unoccupied space.

The device learns the "Power OFF" command from the remote control and sends the same signal to turn off the AC when the motion sensor monitors no occupancy in the room.

The wireless & battery-powered design makes it easy for fast DIY installation, and the night mode feature ensures a long and comfortable sleep. With this device, we will never have to worry about forgetting to turn off the AC.

It also helps save energy and enjoy air conditioning without worrying about the cost.

RZ050 motion sensor air conditioner auto off controller

Model: RZ050

Voltage: 2.5V-3.5VDC (2 AAA batteries)

Motion Detecting range: 6-9M Max

Time delay options: 15min, 30min, 1h, 2h.

Mounting: Screwing or sticking on the wall.

KEY FEATURES

1. Automatically turns off the air conditioner when the room is left empty, saving energy bills up to 20% ~ 50%.

2. Compatible with most split AC units

3. Night mode prevents the AC from accidentally turning off when occupants are sleeping at night.

KEY FEATURES

4. It’s safe to use and does not have a negative impact on your AC or interfere with any arrant or guarantee you have.

5. Battery-powered with long-lasting battery life (at least 1 year).

6. Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.

HOW IT WORKS

1. The RZ050 utilizes passive infrared (PIR) technology to monitor the room for occupancy. The lens will flash a red light to indicate it has detected a motion signal.

2. When the occupant has left the room and no presence is detected, RZ050 will continue to monitor the room for a preset time delay before sending the OFF signal to shut down the AC. The RZ050 will transmit two OFF commands in 2 seconds to ensure the AC is successfully powered off.

HOW TO USE

1. Turn on the air conditioner with your AC remote control.

2. Point the AC remote control at the IR receiver within a 10cm distance. Press the power button on the remote once so the receiver can learn the "Power OFF" command.

Mode setup

Press the Mode button to select between Day Mode and Night Mode. The corresponding indicator will light up.

*Day mode:

The RZ050 motion sensor controller will work the whole day and turn the AC off automatically if no occupancy is detected after a preset time delay.

*Night mode:

The light sensor activates and detects ambient brightness to distinguish “day” and “night”.

Special night mode design for your night sleeping

In "Night Mode", the RZ050 motion sensor controller will turn the AC off only during the daytime if no occupancy is detected after a preset time delay.It does not detect motion and will not turn off the AC at nighttime.

Main Features & Benefits

* Automatically turns off the air conditioner when the room is left empty, saving energy bills up to 20% ~ 50%.
* Compatible with most split AC units operated by remote controls.
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.

Model	RZ050
Voltage	2.5V-3.5VDC (2 AAA batteries)
Motion Detecting range	6-9M Max
IR transmitting range	Same as input voltage
IR Transmitting direction	<10M
Time delay options	30 degree
Mounting	Screwing or sticking on the wall.
Indoor use only	Indoor use only, 0~40°C, up to 90% relative humidity.
Product size	45 x 70 x 64 mm
