Quick Details
-
Supply voltage:
-
AC110V or 220V
-
Power Consumption:
-
4.5VA
-
Frequency range:
-
20 kHz to 170 kHz
-
Reaction time:
-
10ms
-
Channel:
-
Single
-
Loop inductance:
-
Ideal is 100μH to 300μH(Connection included)
-
Operating temperature:
-
40, +80
-
Relative humidity:
-
<90%
-
Output mode:
-
electric relay
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Elefine
-
Packing:
-
loop detector vehicle
-
Supply voltage:
-
AC110V or 220V
-
Power Consumption:
-
4.5VA
-
Frequency range:
-
20 kHz to 170 kHz
-
Reaction time:
-
10ms
-
Channel:
-
Single
-
Loop inductance:
-
Ideal is 100μH to 300μH(Connection included)
-
Operating temperature:
-
40, +80
-
Relative humidity:
-
<90%
-
Output mode:
-
electric relay

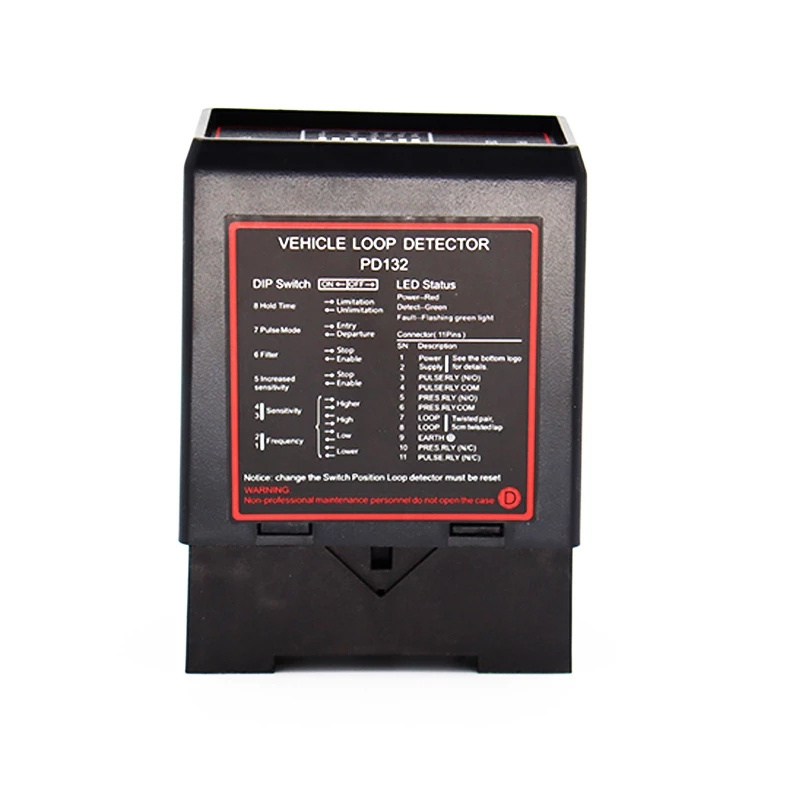

PD132 Inductive Vehicle Single Loop Detector for Car Parking System Automatic Opener Boom Barrier Gate
Product Description
Introduction of Loop Detector
Vehicle Loop Detector is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems, or activating card dispensers in parking lots.
Application
PD132 single loop detector is used wherever vehicles have to be detected, for example for monitoring and safeguarding accessways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems, or activating card dispensers in parking lots. PD132 has two-way output relays, one is unlimited output when the loop is temporarily covered, while the other is multi-mode that can be set by users.
Specification
Model
|
PD132
|
Item name
|
Vehicle Single Loop Detector
|
Supply voltage
|
230V AC , 115V AC, 24V DC/AC, 12V DC/AC( See the label on the detector)
|
Voltage tolerance AC
|
+10% / -15%
|
Voltage tolerance DC
|
±15%
|
Power Consumption
|
4.5VA
|
Output relays
|
240V/5A
|
Frequency range
|
20 kHz to 170 kHz
|
Reaction time
|
10ms
|
Signal holding time
|
Unlimited / limited when loop is permanently covered 10 minutes
|
Sensitivity
|
Adjustable in 4 increments
|
Loop inductance
|
Total loop plus connection wiring: 50μH to 1000μH.
Ideal is 100μH to 300μH |
Loop connection wiring
|
Maximum length 20 meters, twisted at least 20 times per meter
|
Size of Housing
|
78x40x108 mm (L x W x H)
|
Functions & Features :
1) Reset Switch: The reset switch enables the detector to be manually reset during
registering and testing and it is a process of system recovery;
2) Selectable Pulse Time: This feature sets the length of time that the pulse relay will be lasting for 1 Second or 0.5 Seconds ;
3) Pulse Relay Selection: The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop;
4) Sensitivity Reinforcement: This feature sets the un-detecting level to maximum sensitivity to prevent failing to detect vehicles as big trucks;
5) Switch Sensibility Adjustable: 4 sensitivity settings are available on the switches to change sensitivity ;
6) Switch Frequency Adjustable: 4 frequency settings are available to prevent signal interference with neighboring loops ;
7) Filtering Option: This option is used to provide a delay between detection of the vehicle and switching of the output relay. This relay is normally used to prevent false detection of small or fast-moving objects ;
8) Permanent Presence Option: This feature ensures the detection of the vehicle will be maintained when the vehicle stays within the loop area for extended periods
