Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANDU
-
Model Number:
-
WD19D-P1Z-E
-
Mounting hole diameter:
-
19mm
-
Head shape:
-
Flat head
-
Crust material:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Contact configuration:
-
1NO1NC-Normal Open/Normal Close
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Symbol LED/Dot LED
-
Emitting Color:
-
Red,Green, Yellow, Blue, White ,Orange, Purple, Pink
-
LED Voltage:
-
3V/6V/12V/24V/36V/110V/220V/250V
-
Switch Rating:
-
10A / 250VAC
-
Certificate:
-
CE RoHS
Quick Details
-
Protection Level:
-
IP65&IP67/IK10
-
Max. Current:
-
10A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANDU
-
Model Number:
-
WD19D-P1Z-E
-
Mounting hole diameter:
-
19mm
-
Head shape:
-
Flat head
-
Crust material:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Contact configuration:
-
1NO1NC-Normal Open/Normal Close
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Symbol LED/Dot LED
-
Emitting Color:
-
Red,Green, Yellow, Blue, White ,Orange, Purple, Pink
-
LED Voltage:
-
3V/6V/12V/24V/36V/110V/220V/250V
-
Switch Rating:
-
10A / 250VAC
-
Certificate:
-
CE RoHS
Functional description.
1.

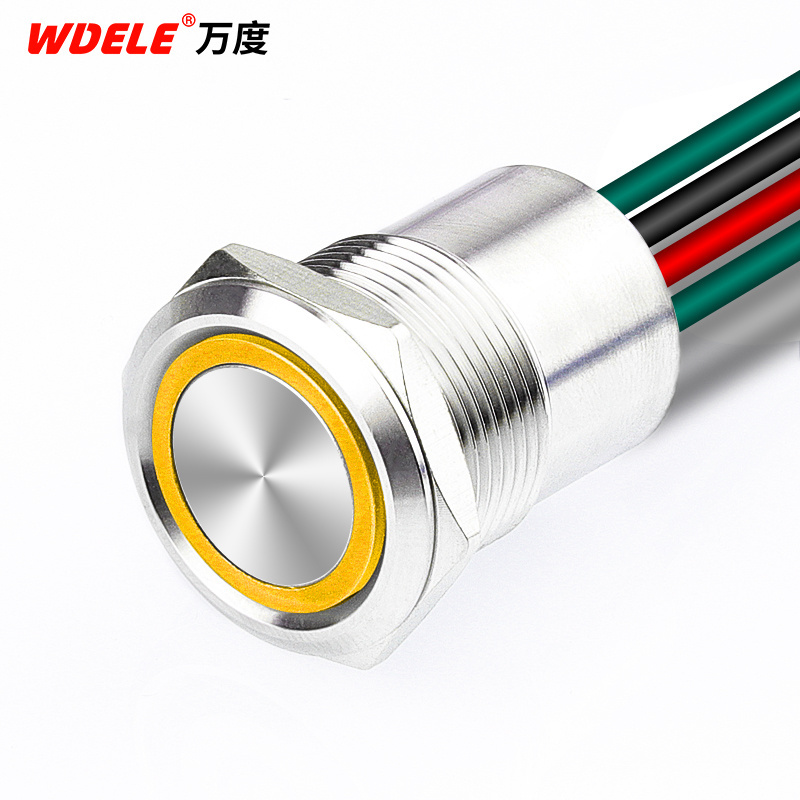

10A high power metal push button switch
2.
Optional connector,To ensure contact performance,reduce waste of labor;
3.
With concave design,operation is more convenient;
4.
With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.
Waterproof and dustproof grade up to IP67;
6.
Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7.
1NO function，
Buttons can be selected with led, with multiple glowing symbol types
8.
It has applied of many patents ,CCC,CE approved;
9.
Installation diameter 19mm, with self-locking and self-resetting functions to choose from
With years of export experience along with excellent quality, advanced services and competitive prices, WANDU has won numerous customers' trust and support.
|
Model Description
|
|
|
|
|||
|
Model NO.
|
|
10A high power metal push button switch
|
|
|||
|
Mounting diameter
|
|
19mm
|
|
|||
|
Head shape
|
|
Flat Head / High Head
|
|
|||
|
Switch Combination
|
|
1NO
|
|
|||
|
Operation type
|
|
Momentary/ latching
|
|
|||
|
Illuminating type
|
|
Annular,power symbol,dot
|
|
|||
|
Illuminating color
|
|
red,green,blue,yellow,orange,white,purple,pink
|
|
|||
|
Lamp voltage
|
|
3V/6V/12V/24V/36V/110V/220V/250V
|
|
|||
|
Shell material
|
|
Stainless steel,aluminum oxide,copper plating
|
|
|||
|
The Others Parameters
|
|
|
|
|||
|
Project
|
Parameter
|
Project
|
Parameter
|
|||
|
ontact type
|
Slow moving single contact
|
Operation Schedule
|
Connected:1.8mm,Total:3.1mm
|
|||
|
Contact Resistance
|
≤50mΩ
|
Actuating Force
|
about 4N
|
|||
|
Insulation Resistance
|
≥1000mΩ
|
Mounting panel thickness
|
≤11mm. customised the others
|
|||
|
Dielectric Strength
|
1000VAC min
|
Nut torque
|
5~14N.m
|
|||
|
Ambient Temperature
|
-30℃~+80℃
|
Outshell/Press Key
|
Stainless Steel/Aluminum Oxide/Copper plate / According to the request
|
|||
|
Protection Levels
|
IK10
|
Diffuser
|
Environmental protection PC
|
|||
|
Electrical Life
|
Rated:2A250VAC-
100,000 time
|
Nut
|
Nickel brass
|
|||
|
|
Rated:5A250VAC-50,000 times
|
Base Seat
|
|
|||
|
|
Rated:8A250VAC-20,000 times
|
Bottom Seat
|
|
|||
|
|
Reated:10A250VAC- 20,000 times
|
Insert seat
|
|
|||
|
|
Momentary-500,000 times
|
Pins
|
H65 / H65 Silver Plated / Gold
|
|||
|
|
Latching-300,000 times
|
Contact
|
Environment-friendly Silver Contact
|
|||
|
Waterproof
|
IP67
|
Spring
|
Imported steel wire
|
|||
|
Switch Rated Load
|
|
|
|
|
|
|||||
|
Project
|
|
Parameter
|
|
|
|
|||||
|
Reated Insulation Voltage
|
|
AC250V
|
|
|
|
|||||
|
Fusing Current
|
|
10A
|
|
|
|
|||||
|
Rated Voltage
|
|
DC12V
|
DC24V
|
DC36V
|
AC220V
|
|||||
|
|
Nonreactive Load
|
3
|
2
|
2
|
3
|
|||||
|
|
Inductive Load
|
1
|
0.5
|
0.5
|
0.5
|
|||||
|
Led Lamp Parameters
|
|
|
|
|||
|
Project
|
|
Parameter
|
|
|||
|
Led type
|
|
High Brightness LED lamp,cool
|
|
|||
|
Luminous color
|
|
Red,Green,Blue,Yellow,Orange,White,Purple,Pink
|
|
|||
|
Rated Voltage
|
|
AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
|
|
|||
|
Rated Current
|
|
≤20mA
|
|
|||
|
Reference Life
|
|
40,000hours
|
|
|||
Wandu Electric Co., Ltd. (WANDU) was established in 2017. Committed to solving industrial control solutions and human-computer interaction, its core team has more than 10 years of experience in switch design and manufacturing, and has obtained a number of national patents and national invention patents. The company has CE, ROHS, CCC certification. At present, the company's core business: button switch, metal button switch, metal indicator light, warning light.
