Quick Details
-
Model:
-
CST series
-
Test standard:
-
ISO12048 TAPPI T80 etc
-
functions:
-
compressive force, fixed load, stacking
-
load range:
-
10Kn, 20KN or others
-
Product name:
-

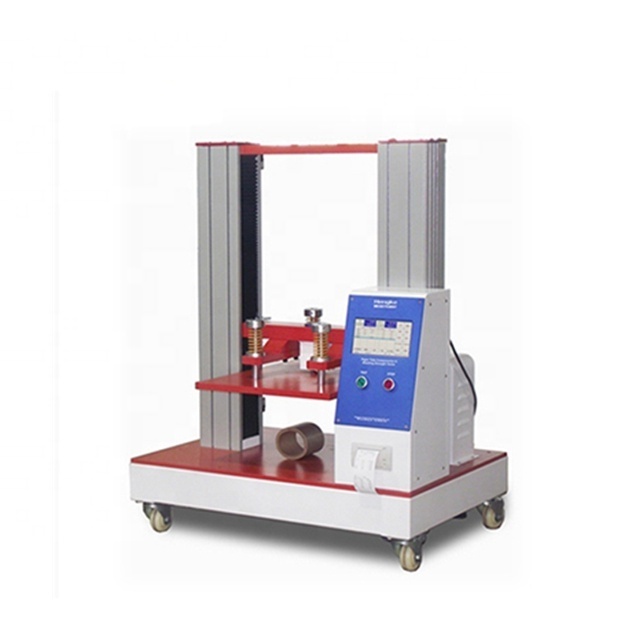

Box compression tester
-
Power supply:
-
220V 50Hz
-
Certificate:
-
CE
-
Test space:
-
400mm or larger
-
Display:
-
Touch Screen
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand:
-
Cell Instruments
-
Model:
-
CST series
-
Test standard:
-
ISO12048 TAPPI T80 etc
-
functions:
-
compressive force, fixed load, stacking
-
load range:
-
10Kn, 20KN or others
-
Product name:
-
Box compression tester
-
Power supply:
-
220V 50Hz
-
Certificate:
-
CE
-
Test space:
-
400mm or larger
-
Display:
-
Touch Screen
Product Description
Applications
Box Compression Tester is for the compression strength and stacking ability of medium and small size packaging like corrugated carton, bottle, tray, etc.
|
|
Available test spaces
|
|
1
|
400mm(L)*600mm(W)*600mm(H)
|
|
2
|
600mm*800mm*800mm
|
|
3
|
800mm*1000mm*1000mm
|
|
4
|
1000mm*1200mm*1200mm
|
|
5
|
1200mm*1200mm*1200mm
|
Why this is ideal for compressive force testing
1. Touch screen operation
2. Microcomputer processing system, automatic measurement, test result intelligent judging, self-return
3. Auto data collecting and computing,
2. Microcomputer processing system, automatic measurement, test result intelligent judging, self-return
3. Auto data collecting and computing,
4. Embedded micro printer
Advantages
5. Real-time display of compression force, deformation and curve
6. Three test modes of compression resistance, stacking and compression at fixed time and pressure
4. Synchronous motor and accurate thread lead screw drive system
6. Three test modes of compression resistance, stacking and compression at fixed time and pressure
4. Synchronous motor and accurate thread lead screw drive system
Technical Data
Pressure range 0-10KN(other load available)
Force resolution 0.1N，Display error: ±2%
Display variation ≤2%，Back to zero error: ±0.2%FS
Deformation accuracy ±1mm
Compressing speed range 5mm/min～90mm/min
compressing speed 12mm/min
Stacking test speed 5mm/min
Lower platen stroke 800mm
Force resolution 0.1N，Display error: ±2%
Display variation ≤2%，Back to zero error: ±0.2%FS
Deformation accuracy ±1mm
Compressing speed range 5mm/min～90mm/min
compressing speed 12mm/min
Stacking test speed 5mm/min
Lower platen stroke 800mm
