Use automatic welding machine to connect solar cells in series
Explore More Products

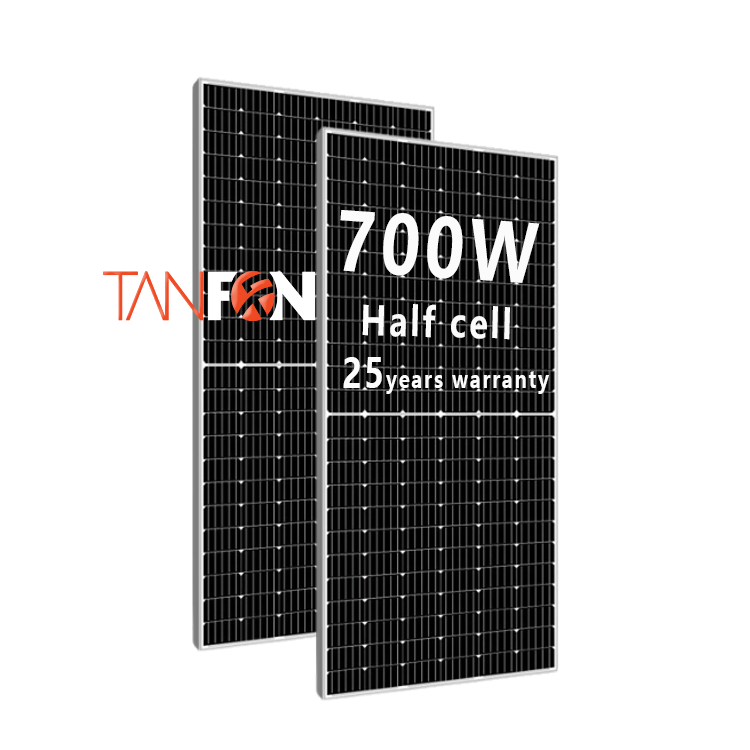

- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25YEARS, 25 years
-
Brand Name:
-
TANFON
-
Model Number:
-
TFL400W-700W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2279*1143*35mm
-
Application:
-
Solar Energy System Projects
-
NMOT:
-
42.3℃(±2)
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Panel efficiency:
-
25%
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm2 Symmetrical Lengths
-
Glass:
-
3.2mm High Transmission Tempered Glass
-
Connector:
-
Compatible MC-4/Male/Female/Fuse
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
25%
-
Warranty:
-
25YEARS, 25 years
-
Brand Name:
-
TANFON
-
Model Number:
-
TFL400W-700W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2279*1143*35mm
-
Application:
-
Solar Energy System Projects
-
NMOT:
-
42.3℃(±2)
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Panel efficiency:
-
25%
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm2 Symmetrical Lengths
-
Glass:
-
3.2mm High Transmission Tempered Glass
-
Connector:
-
Compatible MC-4/Male/Female/Fuse
solar panel for the whole house solar panel setup cost 400w 555w 500w 505w 510w Complete off grid home use solar panel 550w
|
Electrical Characteristics at Standard Test Conditions(STC)
|
|
|
|
|
|
|||||
|
TFL-210X30_10_36
|
400
|
500
|
550
|
600
|
700
|
|||||
|
Maximum Power-Pm [W]
|
400
|
500
|
550
|
600
|
700
|
|||||
|
Open Circuit Voltage-Voc [V]
|
37.89
|
42.82
|
44.94
|
45.34
|
45.54
|
|||||
|
Short Circuit Current-Isc [A]
|
13.52
|
14.20
|
14.4
|
14.5
|
18.81
|
|||||
|
Maximum Power Current-Im [A]
|
14.690
|
14.672
|
14.672
|
14.543
|
14.012
|
|||||
|
Mechanical Characteristics
|
|
|
|
|
|
|||||
|
Dimensions
|
2279×1143×35mm (L×W×H)
|
|
|
|
|
|||||
|
Weight
|
27.9kg
|
|
|
|
|
|||||
|
Front Glass
|
White toughened safety glass, 3.2mm
|
|
|
|
|
|||||
|
Cells
|
210*210 PERC solar cells
|
|
|
|
|
|||||
|
Back Sheet
|
high weatherability backsheet
|
|
|
|
|
|||||
|
Frame
|
Anodized aluminum profile
|
|
|
|
|
|||||
|
Junction Box
|
IP68,TUV,two diodes
|
|
|
|
|
|||||
|
Cable
|
Length 1200mm, 1×4mm²
|
|
|
|
|
|||||
|
Connector
|
Compatible with MC4
|
|
|
|
|
|||||
|
Temperature Characteristics
|
|
|
|
|
|
|||||
|
NMOT
|
42.3℃(±2)
|
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
-0.27%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
0.04%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Pm
|
-0.34%/℃
|
|
|
|
|
|||||
|
Maximum Ratings
|
|
|
|
|
|
|||||
|
Maximum System Voltage [V]
|
DC 1500IEC)
|
|
|
|
|
|||||
|
Series Fuse Rating [A]
|
20
|
|
|
|
|
|||||
|
Maximum Surface Load Capacity [Pa]
|
5,400
|
|
|
|
|
|||||
|
Temperature Range [°C]
|
– 40~+ 85
|
|
|
|
|
|||||
|
Withstanding Hail
|
Maximum diameter of 25 mm with impact speed of 23 m/s
|
|
|
|
|
|||||
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string.
typeset the battery string.
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
previous process
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
World famous cooperative brand
FAQ：
A: What are your main products?
We mainly manufacture solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories.
B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and assistance services.
E: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, will it be packaged out of the factory.
F: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with well-known brands such as Jinko, JA, TRW, etc., and can provide large-brand solar energy series products.
