Quick Details
-
Function:
-
Press metal chips/powder
-
Nominal Force:
-
500 T
-
Briquette size:
-
110-140 mm
-
briquette weight:
-
13-18kg
-
power:
-
45kw
-
machine weight:
-
8950
-
Driven type:
-
hydraulic system
-
Operation:
-
PLC Control
-
Certification:
-
ISO9001
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dinghua
-
Name:
-

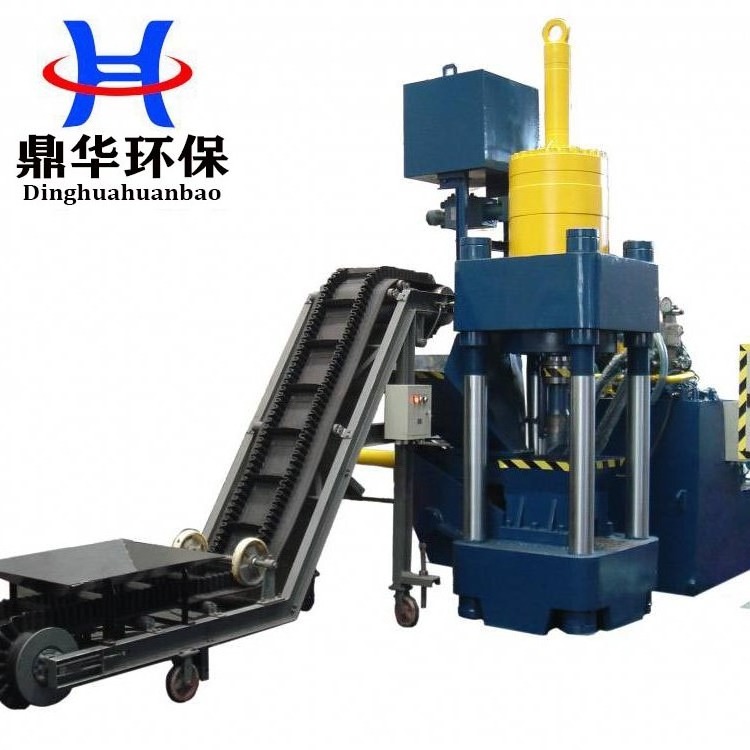

metal briquette machine
-
Function:
-
Press metal chips/powder
-
Nominal Force:
-
500 T
-
Briquette size:
-
110-140 mm
-
briquette weight:
-
13-18kg
-
power:
-
45kw
-
machine weight:
-
8950
-
Driven type:
-
hydraulic system
-
Operation:
-
PLC Control
-
Certification:
-
ISO9001
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
| Model | Y83-3510 | Y83-3600 | Y83-5000 | Y83-6300 | Y83-10000 | Y83-12000 |
| Nominal pressure(ton) | 315 | 360 | 500 | 630 | 1000 | 1200 |
| Size of brequette(mm) | Φ90-Φ110 | Φ90-Φ110*(80-120) | Φ110-Φ140*(80-120) | Φ130-Φ180*(80-120) | Φ250-Φ300*(200-300) | Φ280-Φ340*(200-350) |
| Density(T/m³) | ≥5.2 | ≥5.2 | ≥5.2 | ≥5.2 | ≥5.0 | ≥5.0 |
| Weight of brequette(kg) | 3.5-4 | 6—10 | 6—10 | 8—15 | 25—60 | 40—80 |
| Produotivity(lump/min) | 4—5 | 4—5 | 4 | 4 | 3—4 | 3—4 |
| Output in one shit | 8—10 | 10—15 | 13—18 | 15—22 | 40—55 | 45—65 |
| Total Power(KW) | 30 | 30 | 45 | 30*2 | 45*3 | 55*3 |
| Weight of Machine | 6500 | 7200 | 8950 | 14400 | 50000 | 55000 |
| Overall dimension(mm) | 3400*2600*2300 | 3000*3500*3600 | 3500*3200*3600 | 4500*3500*3900 | 4500*6000*8000 | 5000*6500*9000 |
| Remark | PLC | PLC | PLC | PLC | PLC | PLC |
FAQ:
Q1
: How can i get the after-service?
A
: We provide
one year guarantee
and
lifelong
maintenance.
We will send you the spare parts by
free
if the problems caused by us.
If it is the men-made problems,we also send the
spare parts
,however it is charged.
Any problem, you can call us directly.
Q2
: Can I have a visit to your factory before the order?
A
: Sure,welcome to
visit
our factory.
Our factory address:
27 Hongtu Road, Guanshan Asean Park, Nanzha Street, Jiangyin City
Our factory is near
Shanghai Pudong Airport
.We can pick you up in the airport.
Hotel booking
service is available .
Q3
:Are you a factory or trade company?
A
:We are
manufacturer
with own factory for
1
0 years
, export proportion 50~60%.
Q4
:How can i trust your company?
A
:With
10
-years-professional design, we can provide you
suitable suggestion
and
lowest price
1.
Assessed by third party,
national patents
and
CE, ISO
for all equipment,
.
2.
Welcome to inspect anytime. We are near to
Shanghai Pudong airport.
3.
For
our machine
, we do very well on
hydraulic balers,hydraulic shears
.
Q5
:Is your price competitive?
A:
Only
good quality
machine we supply. Surely we will give you best factory price based on
superior product and service.
