Quick Details
-
Brand Name:
-
GCSOAR
-
Model Number:
-
M4820CUK
-
Work Time (h):
-
24
-
Max PV Power:
-
300W/12V:600W/24V 900W/36V;1200W/48V
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE, RoHS
-
Warranty:
-
3 Years
-
Product name:
-
M4820CUK
-
Dimension:
-
220*159*58mm
-
Battery Type:
-
Support Sel, Gel, Fld, Li and Use Battery Types
-
Communication Port:
-
ModBus/RS485/CAN(CAN Optional)
-
Net Weight:
-
1.2kg
-
IP Protection:
-
IP32
-
Operating Mode:
-
Remote Display
-
Max Solar Input Voltage:
-
<150voc
-
Light Control Voltage:
-
5V*n
-
Operating Temperature:
-
-25℃ ~+55℃
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GCSOAR
-
Model Number:
-
M4820CUK
-
Work Time (h):
-
24
-
Max PV Power:
-
300W/12V:600W/24V 900W/36V;1200W/48V
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE, RoHS
-
Warranty:
-
3 Years
-
Product name:
-
M4820CUK
-
Dimension:
-
220*159*58mm
-
Battery Type:
-
Support Sel, Gel, Fld, Li and Use Battery Types
-
Communication Port:
-
ModBus/RS485/CAN(CAN Optional)
-
Net Weight:
-
1.2kg
-
IP Protection:
-
IP32
-
Operating Mode:
-
Remote Display
-
Max Solar Input Voltage:
-
<150voc
-
Light Control Voltage:
-
5V*n
-
Operating Temperature:
-
-25℃ ~+55℃

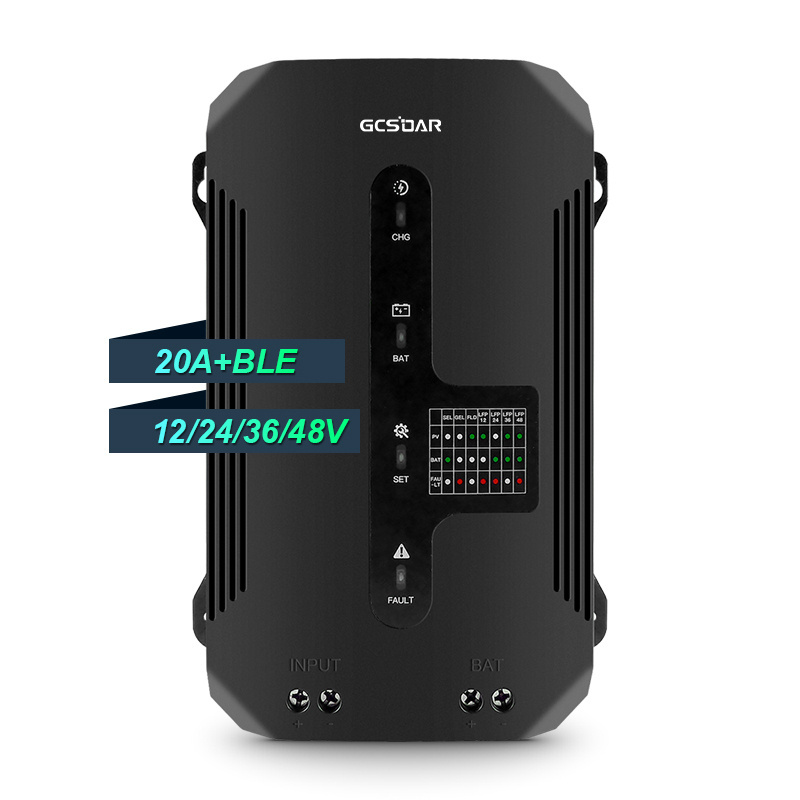

Product Description
|
1.DC-DC Buck-Boost charge mode with Negative.
Grounded design, suitable for energy storage equipment use.
|
|
|
|
|
||||
|
2.Advanced MPPT scanning technology & effective temperature management, ensuring efficient, reliable and lasting solar DC charge.
|
|
|
|
|
||||
|
3.
Buck-Boost circuit design
.
Support charging between the main battery and secondary battery (no matter how high or low the battery voltages are).
|
|
|
|
|
||||
|
4.Support SEL, GEL, FLD, LI and USE battery types.
|
|
|
|
|
||||
|
5.Support 12V/24V/36V/48V automatic detection, lithium battery requires the user to set the system voltage.
|
|
|
|
|
||||
|
6.PCBA glued with polyurethane & silicon mixture, for a great cooling and waterproof system, ensures better charge performance in environment of high temperature and high humidity.
|
|
|
|
|
||||
|
7.Support RS485, CAN communication, using Modbus, RV-Ccommunication protocol (support customer customization protocoland communication media), optional remote LCD screen.
|
|
|
|
|
||||
This series of solar controllers has built-in Bluetooth.
It can be equipped with external display screen, please explain separately if necessary, thank you.
