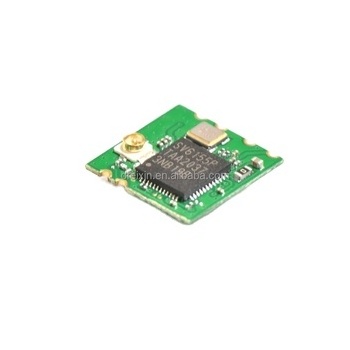

H155E-U is a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE
802.11 b/g/n MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides USB interface for
Wi-Fi . The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OFLYCOMM
-
Supplier Type:
-
Factory
-
Type:
-
2.4GHz Wi-Fi Module
-
Main Chipset:
-
SV6155P
-
Host Interface Type:
-
USB2.0
-
Operating Frequency:
-
2.4GHz
-
Security:
-
WPA/WPA2
-
OS Support:
-
Android /Linux/Windows
-
Date Rates:
-
150Mbps
-
WIFI Standard:
-
IEEE802.11b/g/n
-
Dimension:
-
12.2 x 13 x1.6 mm
-
Power Voltage:
-
3.3Vdc ±10% I/O
Quick Details
-
Chipset:
-
SV6155P
-
Application:
-
Tablet/IPTV/OTT/NVR/IPC/DVR/Speaker/POS/Projector
-
Model Number:
-
H155E-U-01
-
Place of Origin:
-
China
-
Brand Name:
-
OFLYCOMM
-
Supplier Type:
-
Factory
-
Type:
-
2.4GHz Wi-Fi Module
-
Main Chipset:
-
SV6155P
-
Host Interface Type:
-
USB2.0
-
Operating Frequency:
-
2.4GHz
-
Security:
-
WPA/WPA2
-
OS Support:
-
Android /Linux/Windows
-
Date Rates:
-
150Mbps
-
WIFI Standard:
-
IEEE802.11b/g/n
-
Dimension:
-
12.2 x 13 x1.6 mm
-
Power Voltage:
-
3.3Vdc ±10% I/O
Product Description
Introduction
Features
Operate at ISM frequency bands (2.4GHz)
USB2.0 for Wi-Fi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi. Wi-Fi 1 T 1R allow data rates supporting up to 150Mbps PHY rates
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
usb 2.0 wireless 802.11n driver usb wifi soft ap module rf transmitter and receiver for tv
Detailed Parameters
|
Model No
|
H155E-U-01
|
Main Chipset
|
SV6155P
|
|
WIFI/BT Interface
|
USB2.0
|
WIFI Standards
|
IEEE 802.11b/g/n
|
|
Date Rates
|
150Mbps
|
Certification
|
RoHS,REACH
|
|
RF Antenna
|
External Antenna
|
OS Supported
|
Android /Linux/Windows
|
|
Operating Frequency
|
2.4GHz
|
Operating Voltage
|
3..3V
|
|
Dimensions
|
12.2x 13.0X1.6mm
|
RF Chains
|
1T1R
|
|
Operating Temperature
|
-10°C to 70°C
|
Storage Temperature
|
-40°C to 85°C
|
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
