Quick Details
-
RF Output frequency:
-
45-870 MHz Agile
-
Product name:
-
Factory Price Digital Cable Tv hd rf modulator
-
Video Input return loss:
-
more than 20 dB
-
Video input level:
-
0.7-1.4 VPP
-
Audio Input leve:
-
0.775V±10 dB
-
Video carrier frequency:
-
38.9(B-G) 45.75(M-N) 38 (D-K)
-
Audio carrier frequency:
-
33.4(B-G)41.25(M-N)31.5 (D-K)
-
Video carrier output level:
-
more than 30dBmV
-
Audio carrier output level:
-
more than 20dBmV
-
Supply voltage:
-
AC100-240V
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yatai
-
Model Number:
-
YOC-1550
-
RF Output frequency:
-
45-870 MHz Agile
-
Product name:
-
Factory Price Digital Cable Tv hd rf modulator
-
Video Input return loss:
-
more than 20 dB
-
Video input level:
-
0.7-1.4 VPP
-
Audio Input leve:
-
0.775V±10 dB
-
Video carrier frequency:
-
38.9(B-G) 45.75(M-N) 38 (D-K)
-
Audio carrier frequency:
-
33.4(B-G)41.25(M-N)31.5 (D-K)
-
Video carrier output level:
-
more than 30dBmV
-
Audio carrier output level:
-
more than 20dBmV
-
Supply voltage:
-
AC100-240V

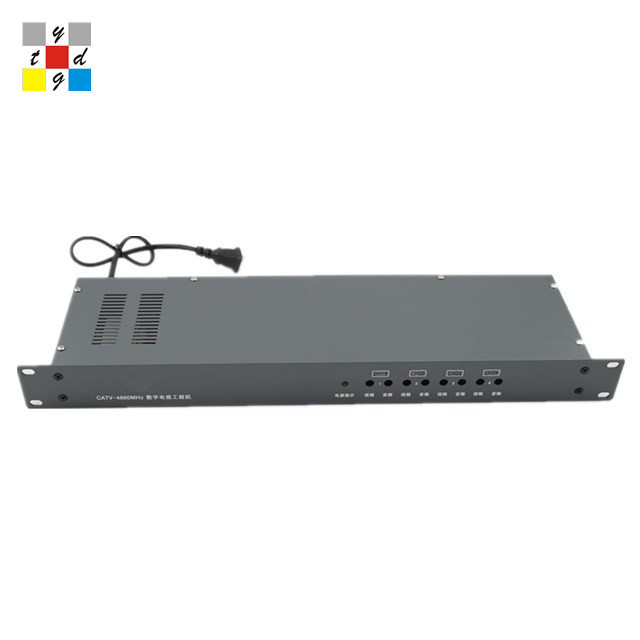

Factory Price Digital Cable Tv hd rf modulator
1. Base-band video and audio inputs
2. All systems and channels between 45 and 870MHz Agile Controlled by Advance Micro-processor.
3. Double heterodyne conversion,Triple IF SAW filter. High vestigial sideband selectivity.
4. Output TV channel frequency through ternary VCO-PLL synthesis.
5. Full +55dBmV output , LCD display.
6. Adjustable A/V ratio,RF output level,video and audio modulation index ,Controlled by Advance Micro-processor.
7. Adopt high quality SMPS,ensure wide power supply range.
8. IF loop-through, Front panel -20dB test point capability.
|
Technical parameter |
|
|
RF |
Adjustable peak deviation: ±50 kHz |
|
Output frequency: 45-870 MHz Agile |
Pre-emphasis: 50μs |
|
Nominal output level: ≥55 dBmV |
Flatness (40Hz …15kHz): ≤±1.5 dB |
|
Output impedance: 75Ω |
Distortion(fm=1kHz; f=50kHz): ≤1% |
|
A/V RATIO: -10 - -20 dB |
S/N ratio: ≥65dB |
|
Carrier frequency tolerance: ≤5 kHz |
IF section |
|
Carrier frequency distance tolerance: ≤100 Hz |
Video carrier frequency: 38.9(B-G) 45.75(M-N) 38 (D-K) |
|
Spurious in band: ≤-60 dB |
Audio carrier frequency:33.4(B-G)41.25(M-N)31.5 (D-K) |
|
Output level adjustment: 0 - -20 dB |
Video carrier output level: ≥30dBmV |
|
Side-band Suppression: ≥65 dB |
Audio carrier output level: ≥20dBmV |
|
C/N ratio in channel: ≥65 dB |
Input/output impedance: 75Ω |
|
Video |
Input/output return loss: ≥12 dB |
|
Input level: 0.7-1.4 VPP |
General |
|
Input impedance: 75Ω |
Supply voltage: AC100-240V |
|
Input return loss: ≥20 dB |
Consumption: 25 W |
|
Modulation depth: 87.5% |
Operating temperature: -10- +55°C |
|
Differential gain: ≤4% |
Video,audio connector type: “RCA” |
|
Differential phase: ≤4 o |
IF and RF connector type: “F” |
|
Flatness in band: ≤±1.5 dB |
Outside dimensions(h×w×d): 483×210×44mm |
|
Cr/L delay: ≤40 ns |
Packed weight: 2 .5kg |
|
Weighted S/N ratio: ≥60 dB |
|
|
Audio |
|
|
Input level: 0.775V±10 dB |
|
|
Input impedance (unbalance): 10kΩ |
|
