- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
material:
-
rubber cushion+aluminium housing+steel plate+nylon wheel
-
color:
-
white or other color as ordered
-
size:
-
40 60 80 100
-
wheel diameter:
-
40 50 62 75mm
-
load capacity:
-
50 250 500 750kg each caster
-
installation type:
-
40 60 80 100
-
features:
-
50-750kg per caster
-
finish:
-
decromat
-
salt and spray test:
-
>300 hours
-
Salt and spray test:
-
>300 hours
Quick Details
-
Material:
-
nylon wheel+rubber cushion
-
Type:
-
Plate Casters, Stem Casters
-
Model Number:
-
GDC
-
Place of Origin:
-
Guangdong, China
-
material:
-
rubber cushion+aluminium housing+steel plate+nylon wheel
-
color:
-
white or other color as ordered
-
size:
-
40 60 80 100
-
wheel diameter:
-
40 50 62 75mm
-
load capacity:
-
50 250 500 750kg each caster
-
installation type:
-
40 60 80 100
-
features:
-
50-750kg per caster
-
finish:
-
decromat
-
salt and spray test:
-
>300 hours
-
Salt and spray test:
-
>300 hours

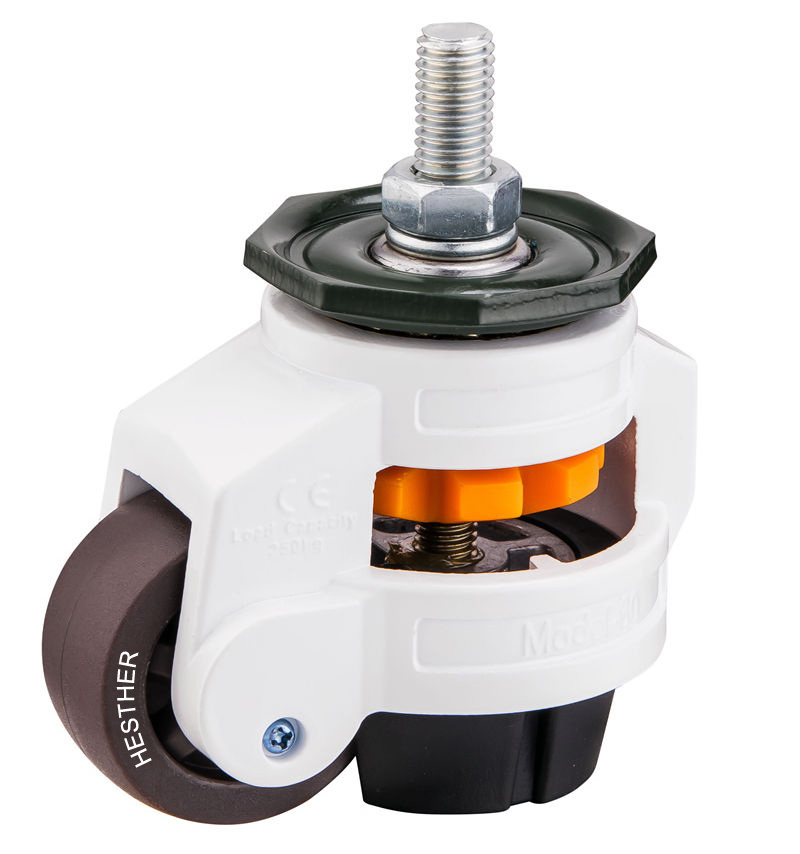

footmaster caster wheel gd60f swivel caster with adjustable leveler
Adjusting height by turning the yellow lever inside
- Footmaster design , leveling caster , GDC Series.
- Allows machines to be kept out of the way when not in use and make it easier to add to a line when needed.
- GDC40, 60, 80, 100 are available .
- Load capacity up to 1500kg each caster .
- At least 300 hours salt and spray test
- 7- 10 times anti rust than normal casters
- No poison, no pollution
- More stable , more durable
p=plate type , S=thread stem type
|
Series |
GDC |
|||
|
Code |
40P/S |
60P/S |
80P/S |
100P/S |
|
Wheel (DXW) |
40x19.2 |
50x24 |
62X30.7 |
75X32 |
|
Plate size |
55X55X3mm |
73X73X5mm |
90X90X5mm |
95X95X5mm |
|
Hole Dia |
7mm |
7mm |
9mm |
11mm |
|
Hole Center |
42x42mm |
58X58mm |
70x70mm |
70x70mm |
|
Stem Size |
M8X35 |
M12X40 |
M14X40 |
M14X40 |
|
Total Height |
75+8 |
85+10 |
110+12 |
120+12 |
|
Tread Hardness |
65-75D |
65-75D |
65-75D |
65-75D |
|
Temperature |
-35-135 |
-35-135 |
-35-135 |
-35-135 |
|
Load Capacity/pc |
50kg |
250kg |
500kg |
750kg |
|
Load/4pcs |
100kg |
500kg |
1000kg |
1500kg |
|
Advantages: |
|
Rubber cushion, shock absorbing |
|
Height adjustable , solving the problem caused by uneven ground or height error of casters |
|
Finish is dacromet, which anti rust 7-10 times more than normal electroplating. |
|
Approved at least 300 hours salt and spray test |
|
Both material and finish are environmental-friendly |
|
Color can be ordered to coordinate with the room furniture. |
Contact us to get price for other size>>>
Routine stocks are white color, other color can be customized
Applications
