fresh milk cup packing stirred yogurt production line small capacity milk dairy processing line

1

cache jar

Ø volume: 500L
Ø 304 stainless steel material;
Ø Single-layer upper and lower cone-bottom structure;
Ø Stainless steel plate thickness: 3mm
Ø With stirring
Ø The outer surface adopts wire drawing board;
Ø High and low liquid level control;
Ø Conical top and cone bottom structure, including manhole, vent cap, cleaning ball, water inlet, material inlet and outlet,
visual sight glass;
Ø The inlet and outlet adopt anti-foam and anti-swirl structure;

2

Homogenizer

Ø Pressure: 0-30Mpa
Ø Output: 500L/H
Ø Pressure control adopts two-pole mechanical pressure regulation, which is convenient to adjust, safe and reliable;
Ø Plunger adopts wear-resistant alloy, sprayed alloy and new ceramic technology, which has the characteristics of corrosion
resistance and wear resistance;
Ø The high-pressure seal of the plunger adopts the form of self-expanding ring and V-shaped seal, which has a long service life;
Ø Crankshaft transmission adopts one-stage transmission mode, with stable operation, small power loss and low noise;
Ø The main parts are made of stainless steel and corrosion-resistant alloys, which meet the requirements of food hygiene;

3

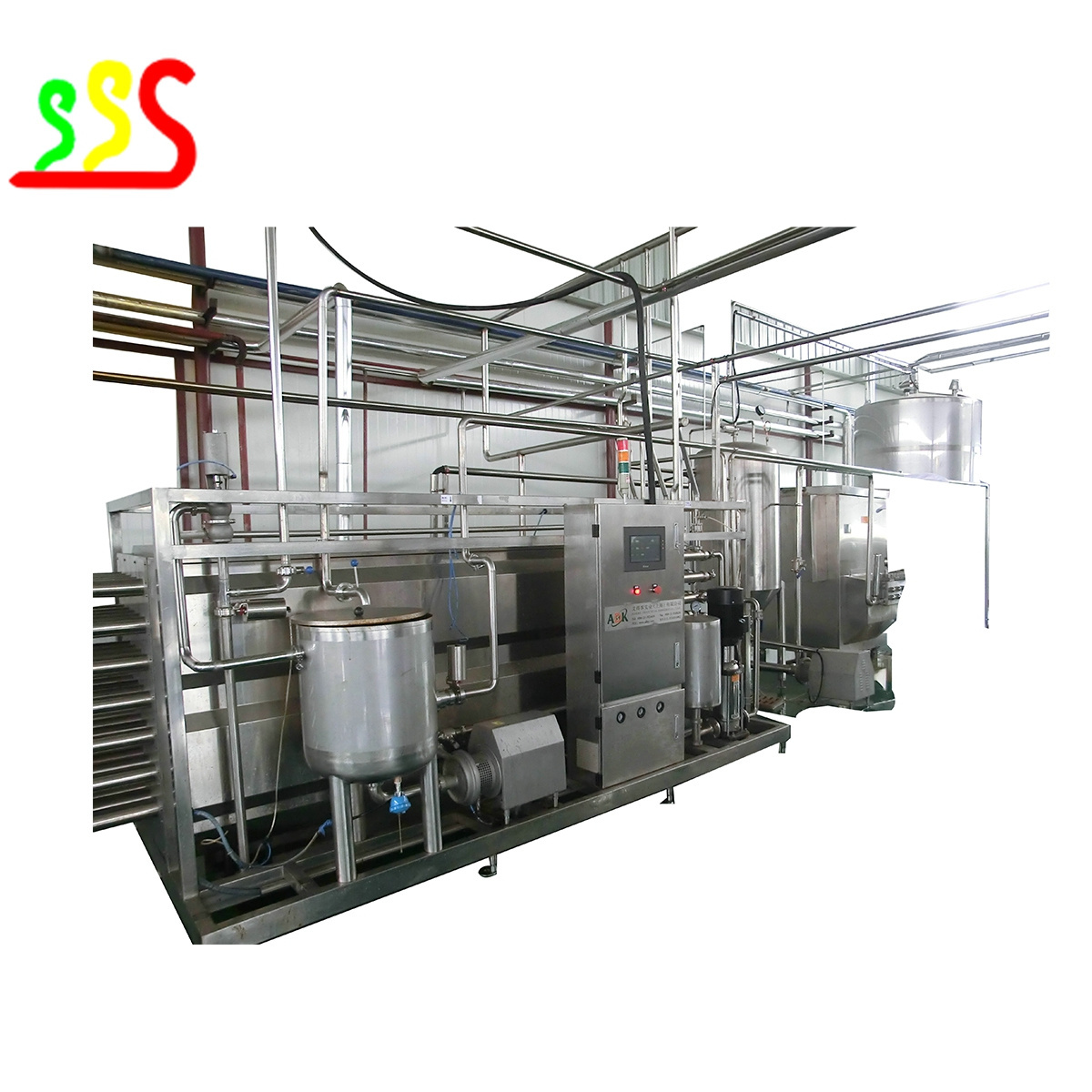

Pasteurization

Ø The material is SUS304 stainless steel,
Ø imported automatic control components,
Ø feeding in the range of 4°C to 40°C,
Ø adjustable homogenization in the range of 50°C or 65°C,
Ø adjustable sterilization temperature in the range of 65°C to 95°C/
Ø sterilization time 15s, 100S, 200S, 300S,
Ø discharge 4℃/and 43℃.
Ø steam pressure reducing system.

4

Fermentation tank

Ø The material is SUS304 stainless steel,
Ø the inner surface is mirror polished, the insulation tank, the inner tank is 3mm, the outer shell is 2mm, the PU insulation is
60mm, the coil jacket is 1.5mm (through ice water), the lower side is fed, the conical head, and the manhole is sealed , LED light
hole sight glass,
Ø sterile respirator,
Ø CIP cleaning head,
Ø with center frame stirring, horizontal worm gear motor, variable frequency speed regulation, high and low level gauge interface,
digital thermometer, adjustable feet, lever valve,
