Quick Details
-
Brand Name:
-
BAILEY
-
Model Number:
-

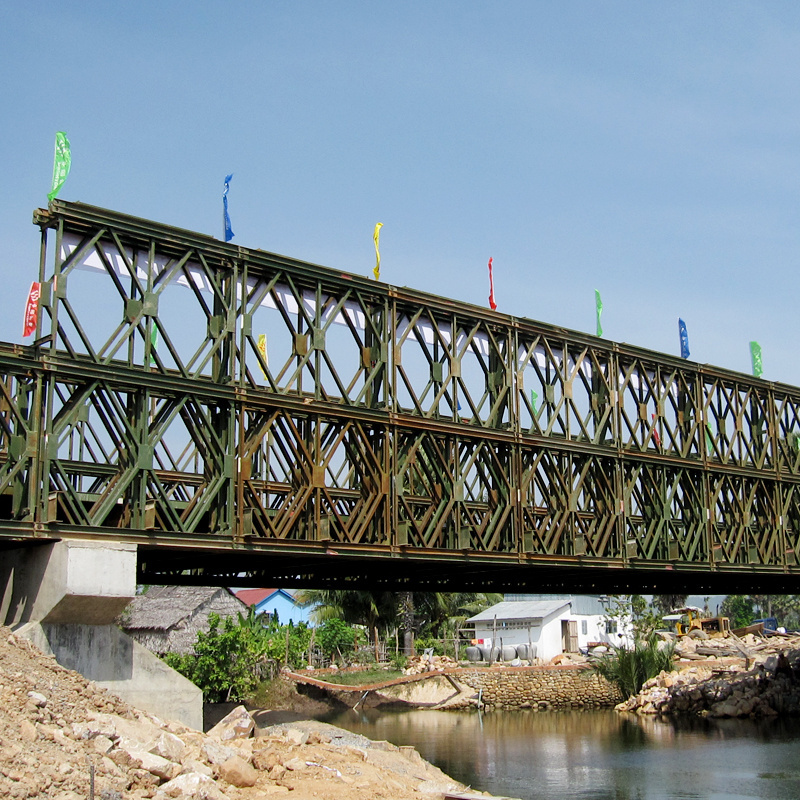

CB100(CB321)Bailey Bridge
-
Product Name:
-
wholesale temporary pedestrian bridge High security
-
Other Name:
-
temporary pedestrian bridge
-
Payment:
-
L/C, T/T, ESCROW
-
MOQ:
-
1 PC
-
Port:
-
Shanghai
-
Delivery Detail:
-
According to the order
-
Supply Ability:
-
10000 Ton/Tons per Year
-
Packing:
-
40' standard HQ containers
Quick Details
-
Grade:
-
Q345B-Q460C
-
Tolerance:
-
±3%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BAILEY
-
Model Number:
-
CB100(CB321)Bailey Bridge
-
Product Name:
-
wholesale temporary pedestrian bridge High security
-
Other Name:
-
temporary pedestrian bridge
-
Payment:
-
L/C, T/T, ESCROW
-
MOQ:
-
1 PC
-
Port:
-
Shanghai
-
Delivery Detail:
-
According to the order
-
Supply Ability:
-
10000 Ton/Tons per Year
-
Packing:
-
40' standard HQ containers
|
ZB321（100） truss press limited table
|
|
|
|
|
|
|
|
|
|
|||||||||
|
No.
|
internal force
|
structure form
|
|
|
|
|
|
|
|
|||||||||
|
|
|
not reinforced model
|
|
|
|
reinforced model
|
|
|
|
|||||||||
|
|
|
SS
|
DS
|
TS
|
DDR
|
SSR
|
DSR
|
TSR
|
DDR
|
|||||||||
|
321（100）
|
standard truss moment(kN.m)
|
788.2
|
1576.4
|
2246.4
|
3265.4
|
1687.5
|
3375.0
|
4809.4
|
6750.0
|
|||||||||
|
321（100）
|
standard truss shear (kN)
|
245.2
|
490.5
|
698.9
|
490.5
|
245.2
|
490.5
|
698.9
|
490.5
|
|||||||||
|
321 （100） Table of geometric characteristics of truss bridge（Half bridge）
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Type No
|
Geometric characteristics
|
structure form
|
|
|
|
|
|
|
|
|||||||||
|
|
|
not reinforced model
|
|
|
|
reinforced model
|
|
|
|
|||||||||
|
|
|
SS
|
DS
|
TS
|
DDR
|
SSR
|
DSR
|
TSR
|
DDR
|
|||||||||
|
321（100）
|
Section properties（cm
3
）
|
3578.5
|
7157.1
|
10735.6
|
14817.9
|
7699.1
|
15398.3
|
23097.4
|
30641.7
|
|||||||||
|
321（100）
|
Moment of inertia（cm
4
）
|
250497.2
|
500994.4
|
751491.6
|
2148588.8
|
577434.4
|
1154868.8
|
1732303.2
|
4596255.2
|
|||||||||
