Quick Details
-
Place of Origin:
-
Henan, China, Henan China (Mainland)
-
Brand Name:
-
Dingchen
-
Voltage:
-
220V/380V
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2950*1320*1500mm, Depends on model
-
Weight:
-
3000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
waste paper or wood pulp
-
Output paper:
-
kraft paper/corrugated paper
-
Colour:
-
Per customer require
-
Type:
-
automatic corrugated box making machine
-
Model Number:
-
automatic corrugated box making machine
-
Packing:
-
Safty packing
Quick Details
-
Production Capacity:
-
Other
-
Product Type:
-
Kraft/Corrugated paper
-
Processing Type:
-
Kraft/Corrugated paper making machines
-
Place of Origin:
-
Henan, China, Henan China (Mainland)
-
Brand Name:
-
Dingchen
-
Voltage:
-
220V/380V
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2950*1320*1500mm, Depends on model
-
Weight:
-
3000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
waste paper or wood pulp
-
Output paper:
-
kraft paper/corrugated paper
-
Colour:
-
Per customer require
-
Type:
-
automatic corrugated box making machine
-
Model Number:
-
automatic corrugated box making machine
-
Packing:
-
Safty packing
Automatic Corrugated Cardboard Box Making Machine/Corrugated Paper Produce Machine/2 Ply Corrugated Board Line
1.what kind of paper you want to produce(Important)
2.what kind of raw material you will use(Important)
3.the capacity you want produce per day(Important)
4.the paper weight you require
5.the paper width you require
>>>> > > > > > > > > About machine<<<< <<<< <<<<
Process Flow Diagram of waste paper recycling plant
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper —— process machine
1.corrugated paper (rewinder machine——cutting paper machine——corrugated paper roll )
2. kraft paper (plate paper slitting machine —— paper machine —— napkin paper)
3. tissue paper ( paper slitting machine —— paper machine —— final paper
1. cylinder mould section:φ1000mm×1450mm stainless steel cylinder mould 1set, φ 300mm×1450mm couch roll 1set,coated by rubber, rubber shore hardness 38°C±2.
2. dryer section: φ 1500mm×1450mm alloy dryer can 1 set, 1group scraper knife. φ 350mm×1450mm touch roll 1set, coated by rubber, rubber shore hardness 90°C±2.Mechanical loading device
Main Technical Parameter :
|
Machine Model |
1092 |
1575 |
1760 |
2200 |
2500 |
2800 |
|
|
Width (mm) |
1350 |
1750 |
1900 |
2150 |
2450 |
2750 |
|
|
Finished Products Diameter |
Φ 60~150mm (Tightness can be adjustable) |
||||||
|
Finished Products Inner Diameter |
Φ32~50 mm |
||||||
|
Jumbo roll diameter (mm) |
Φ 1200 (Other sizes can be ordered) |
||||||
|
Jumbo Roll Inner Diameter |
3”,76.2 mm (other sizes can be ordered) |
||||||
|
Perforation distance (mm) |
4 blade,90~160mm;2 blade,180~320mm; |
||||||
|
Production speed |
160-180 m/min |
||||||
|
Parameter set |
Touching-screener Multi-menu Man-machine Interface Operation System |
||||||
|
Programmable controller |
Mitsubishi PLC program |
||||||
|
Mechanical driving |
Driven by stepless speed-regulator to guarantee the precise length of final products. |
||||||
|
Embossment unit |
Single embossment, Double embossment, Steel to steel embossment; |
||||||
|
Embossment down roller |
Felt roller, paper roller, rubber roller |
||||||
|
Jumbo roll stand |
1-3 plies (ply quantity can be ordered) |
||||||
|
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) |
||||||
|
Power |
5.5-15KW (Frequency speed-regulate ) |
||||||
|
Overall size (m)(L×W×H) |
7 X (2.3-4) X 1.8 |
||||||
|
Weight of equipment |
4000~8000kg (approximately) |
||||||
|
Chosen items (Should be ordered separately) |
|||||||
|
Embossment |
Single embossment, double embossment, steel to steel embossment |
||||||
|
Embossment down roller |
Felt roller, paper roller, rubber roller |
||||||
|
Jumbo roll stand |
1-3 plies |
||||||
|
Jumbo roll stand driving |
Driven by variator |
||||||
|
Rewinding unit |
Non-core unit |
||||||
|
Printing unit |
Single color heliotype printing unit |
||||||
|
Side rolling embossment |
Steel to steel |
||||||
|
Perforation mode |
Air pneumatic separating unit |
||||||
|
Smooth embossment |
Steel to steel, Steel to rubber ; |
||||||
|
Remote telecom service system |
Should be ordered separately. |
||||||
>>>>
>
>
>
>
>
>
>
>
>
>
>

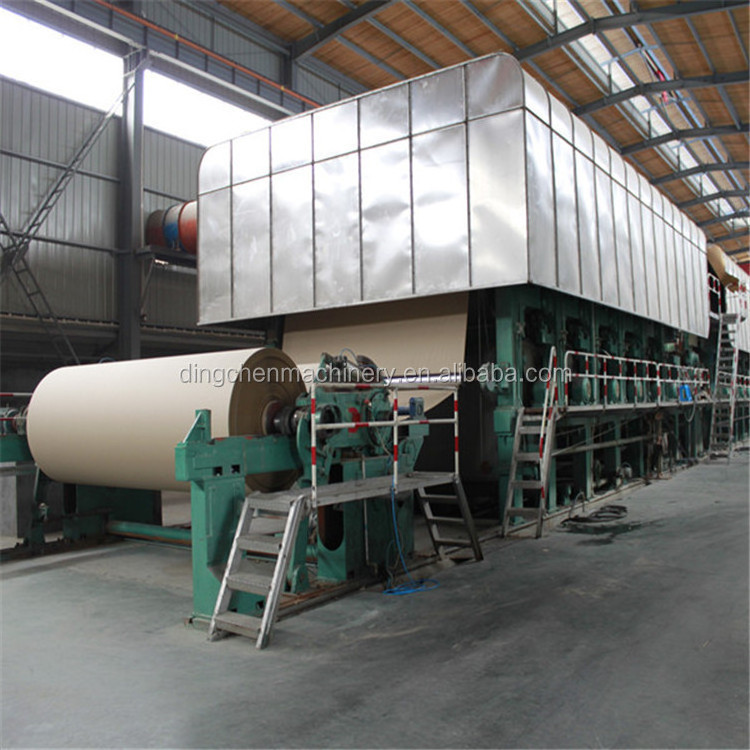

>Picture
<<<<
<<<<
<<<<
<<
<<
