Quick Details
-
Production Capacity:
-
High Speed
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAOTAO
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
2500*1600*1500MM
-
Weight:
-
1800 kg
-
Marketing Type:
-
New Product 2022
-
Processing thickness:
-
6-20MM
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Applicable material:
-
Marble Granite Tile Metal Glass
-
Number of spindle:
-
1
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
17KW
-
Cutting thickness (max):
-
25mm
-
Production Capacity:
-
High Speed
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAOTAO
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
2500*1600*1500MM
-
Weight:
-
1800 kg
-
Marketing Type:
-
New Product 2022
-
Processing thickness:
-
6-20MM
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Applicable material:
-
Marble Granite Tile Metal Glass
-
Number of spindle:
-
1
1. Product introduction:

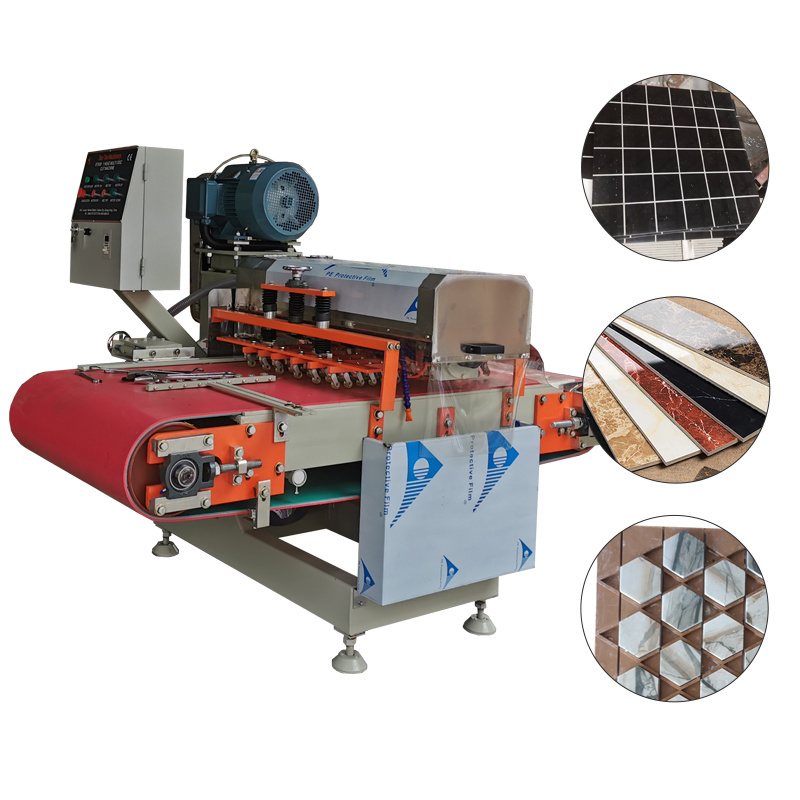

BT-800 Single Spindle Tile Cutter For Mosaic Tiles,This is single spindle tile cutting machine, it is the best tile cutter for mosaic. It can install 7-8 blades on the spindle, which can cut the tile into several strips in one time. For example, cut 600x600mm tiles, it can install 5pcs of blades, and cut into 6pcs of 98x100 strips, which is suit for producing ceramic tile skirting. For ceramic mosaic cutting, usually use the mosaic cutting mold, put the 300x300mm tile into the mold, cut two times by the mosaic cutting machine, finally will get the small mosaics.
2. Main technical parameters:
|
Model |
BT-800 |
|
Nos. Of Cutting Head Spindle |
1 |
|
Conveyor Belt Width |
800mm |
|
Speed of conveyor |
1-7m/Min |
|
Processing width |
800mm |
|
Processing thickness |
6-20mm |
|
Total power |
16.5KW |
|
Weight |
1800KG |
|
Size |
2500*1600*1500mm |
