Quick Details
-
Production Capacity:
-
20-50bags/min
-
Weight (KG):
-
1050
-
Voltage:
-
220V/ 110V
-
Place of Origin:
-
China
-
Brand Name:
-
LTPK
-
Dimension(L*W*H):
-
L2300* W950* H1300 mm
-
Core Components:
-
Other
Quick Details
-
Function:
-
FILLING, Sealing, Packing
-
Packaging Type:
-
Cartons, Bags, Film, Foil, Pouch, case, Other
-
Packaging Material:
-
Plastic, Paper, Wood, Other
-
Production Capacity:
-
20-50bags/min
-
Weight (KG):
-
1050
-
Voltage:
-
220V/ 110V
-
Place of Origin:
-
China
-
Brand Name:
-
LTPK
-
Dimension(L*W*H):
-
L2300* W950* H1300 mm
-
Core Components:
-
Other
Products Description

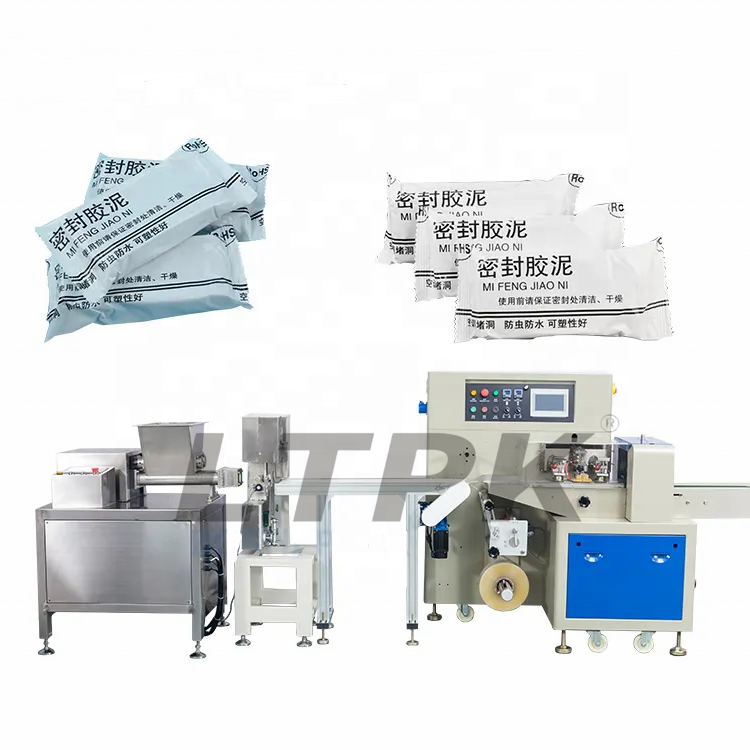

* Full automatic soft materials production line with extruding and packing functions, fast speed for cutting and packing.
* Touch screen (for extruder & packing machine) combines the two machine functions in one, make machine more intelligent.
* Material contact parts use food grade SUS 304 stainless steel, safe and clean.
* Reduce manual operation and avoid touching products, no pollution and de-formation.
* Accurate length cutting, high gram precision.
* Accurate length cutting, high gram precision.
* Machine with stable performance, easy operation.
* Independent PID temperature control, suitable for different film roller.
* With auto alarm function, any alarm will show on touch screen.
Product Parameter
|
Model
|
LT-350
|
|
Package cut length
|
65-200mm
|
|
Product width
|
max.165mm
|
|
Product height
|
max.60mm
|
|
Film thickness
|
40-80μm
|
|
Packaging material width
|
max.350mm
|
|
Film weight
|
max. 25KG
|
|
Packing material
|
OPP/CPP, OPP/CE,PET/PE etc.
|
|
power supply
|
380V,50HZ
|
|
Power usage
|
5.5kw-7kw
|
|
Type of sealing
|
Pillow bag
|
|
Cutter type
|
Rotary cutter
|
|
Motor configuration
|
Dual frequency
|
|
Machine weight
|
1000kg
|
|
Machine dimensions
|
L2250XW1000XH1350mm
|
Application
This packing machine is suitable for packing modeling clay, play dough, plasticine, sugar paste, candy mud, super light clay, crystal mud, energy bar, tamarind fruit, fire mud and other soft materials & products.
