Quick Details
-
Material:
-
aluminum, Aluminum
-
Function:
-
Use to charge 36V 36V Trolling Battery
-
Brand Name:
-
WEMAXPOWER
-
Model Number:
-
WMX-B2B12S43.810
-
Input voltage and current:
-
12v/37A
-
output voltage and current:
-
36V/10A, 43.8V/10A
-
Maximum Output Power:
-
438W
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
dc 12V to dc 43.8V 10A DC-DC Battery Charger
-
Application:
-
Charge Car auxiliary battery
-
Warranty:
-
1 Year
-
Rated power:
-
438W
-
OEM:
-
Yes
-
Input voltage range:
-
12.5-16V
-
Charge max voltage:
-
43.8V
-
Waterproof:
-
IP68
-
Color:
-
Silver
Quick Details
-
Type:
-
Electric, Desktop Charger, 36V On-Board Alternator Charger
-
Port:
-
DC
-
Usage:
-
Use to charge 36V 36V Trolling Battery
-
Material:
-
aluminum, Aluminum
-
Function:
-
Use to charge 36V 36V Trolling Battery
-
Brand Name:
-
WEMAXPOWER
-
Model Number:
-
WMX-B2B12S43.810
-
Input voltage and current:
-
12v/37A
-
output voltage and current:
-
36V/10A, 43.8V/10A
-
Maximum Output Power:
-
438W
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
dc 12V to dc 43.8V 10A DC-DC Battery Charger
-
Application:
-
Charge Car auxiliary battery
-
Warranty:
-
1 Year
-
Rated power:
-
438W
-
OEM:
-
Yes
-
Input voltage range:
-
12.5-16V
-
Charge max voltage:
-
43.8V
-
Waterproof:
-
IP68
-
Color:
-
Silver

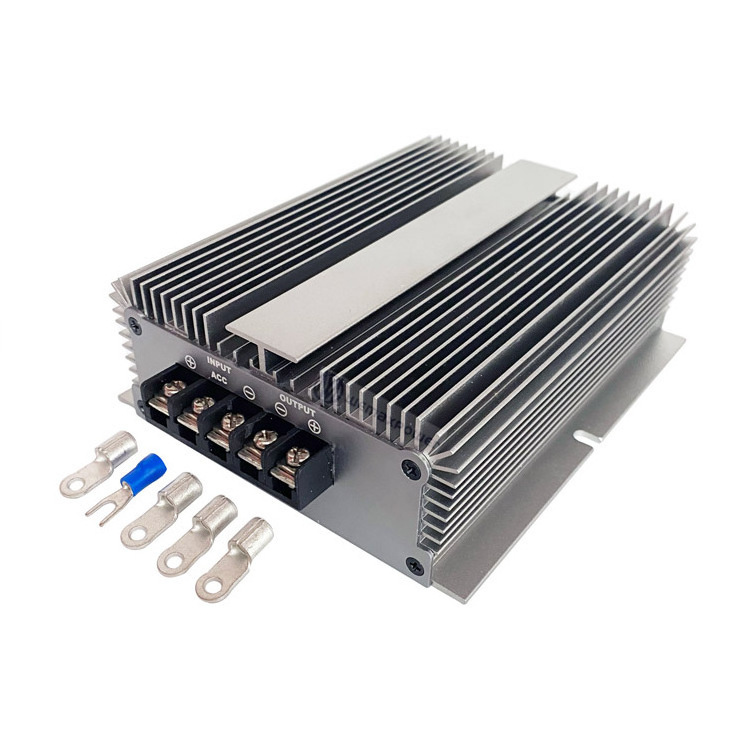

IP67 waterproof fully automatic charging 12V to 43.8V 10A DC TO DC On-Board Alternator Battery Charger for 36V Trolling Motor Battery
>>> 12V to 43.8V 10A DC TO DC On-Board Alternator Battery Charger <<<
1. Fully automatic charging: In order to continuously charge the battery, the controller can always be connected to the starting battery, when the charging energy stops when you stop or are stationary on your boat, the battery will not discharge in reverse.
2. Stable output voltage is 43.8V
3. ACC control port can turn off the output voltage
4. Intelligent chip with voltage wake-up function
5. 100% full rated power
6. 100% full stable output Current
7. 100% burn-in-test
8. IP67 waterproof Epoxy potting, Anti-vibration, Dust proof
9. Cooling by free air convection
10. Under voltage protection: Identify the starting voltage of the car and wake up the
11. Overshoot protection
12. Over temperature protection: the operating temperature range of the shellis-40-85¬ degree
|
Series |
WMX-B2B43.8 |
|
Model |
WMX-B2B12S43.810 |
|
Product Name |
IP67 waterproof fully automatic charging 12V to 43.8V 10A DC TO DC On-Board Alternator Battery Charger for 36V Trolling Motor Battery
|
|
Input rated voltage |
12V DC |
|
Input voltage range |
12.5-16V DC |
|
Conversion Efficiency |
96% |
|
Output voltage |
43.8V DC |
|
Output current |
10 Amps |
|
Output power |
438 Watts |
|
Voltage regulation |
< 1% |
|
Load regulation |
< 2% |
|
Ripple (full load test) |
< 150mV |
|
No-load current |
< 20mA |
|
Working Temperature |
-40°c ~ +80°c |
|
Waterproof rating |
IP 68 |
|
Protections |
Over-load, Over-current, Over-temperature, Over-voltage |
|
Machine size |
150*130*50mm |
|
N. Weight |
1.5Kg |
|
Cooling way |
Free air convection |
|
Applications |
Charge all kinds of batteries, such as RV, boat, EV, etc. |
Noted : Further information of Factory Price Charging 36V RVs/ Truck / Boat Life-po4 Battery dc 12V to dc 43.8V 10A DC-DC Battery Charger , please contact our sale team
Q: Why choose us?
A:
Guangzhou Wemaxpower technology Co., Ltd is the dc dc charger manufacturer for more than 8 years.The performance of the converters are very stable.And the product technology is updated every year.
W
e are the direct manufacturer, supply OEM/ODM service.
Q: Why are other products cheaper than yours?
A:
Because other suppliers use cheap components, the products are not enough power output. Our products are uesed imported components, they can support long-term full load work.
Q: What about your after sales-service?
A:
1.Guarantee time: 1 year
2.Return policy: we can exchange goods if there is any quality problem.
Q: Our Payment & Logistics
A:
1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypal.etc.
2.Shipping terms: By DHL, UPS, FedEX, TNT, EMS,Sea.etc
Q: What can you get from us?
A:
1.Excellent products (unique design, strict quality control )
2.Great service(OEM,ODM, after-sales services, fast delivery)
3.Professional business consultation.
Q: What is the MOQ of the dc dc charger?
A:
Low MOQ, depends on the charger you request.
Any question about dc 12V to dc 43.8V 10A DC-DC Battery Charger , please contact us
