Quick Details
-
Marketing Type:
-
3 axis dispensing machine
-
Name:
-
3axis dispensing machine
-
Model:
-
LJ-D331
-
Voltage:
-
110V/220V,50Hz/60Hz
-
X axis travel:
-
300mm
-
Y axis travel:
-
300mm
-
Z axis travel:
-
100mm
-
Weight:
-
50KG
-
Application:
-
silicone glue/epoxy resin/uv dispenser
-
Dimensions:
-
650*630*680mm
-
Maximum load weight:
-
8KG
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIUJIANG
-
Weight (KG):
-
50
-
Marketing Type:
-
3 axis dispensing machine
-
Name:
-
3axis dispensing machine
-
Model:
-
LJ-D331
-
Voltage:
-
110V/220V,50Hz/60Hz
-
X axis travel:
-
300mm
-
Y axis travel:
-
300mm
-
Z axis travel:
-
100mm
-
Weight:
-
50KG
-
Application:
-
silicone glue/epoxy resin/uv dispenser
-
Dimensions:
-
650*630*680mm
-
Maximum load weight:
-
8KG

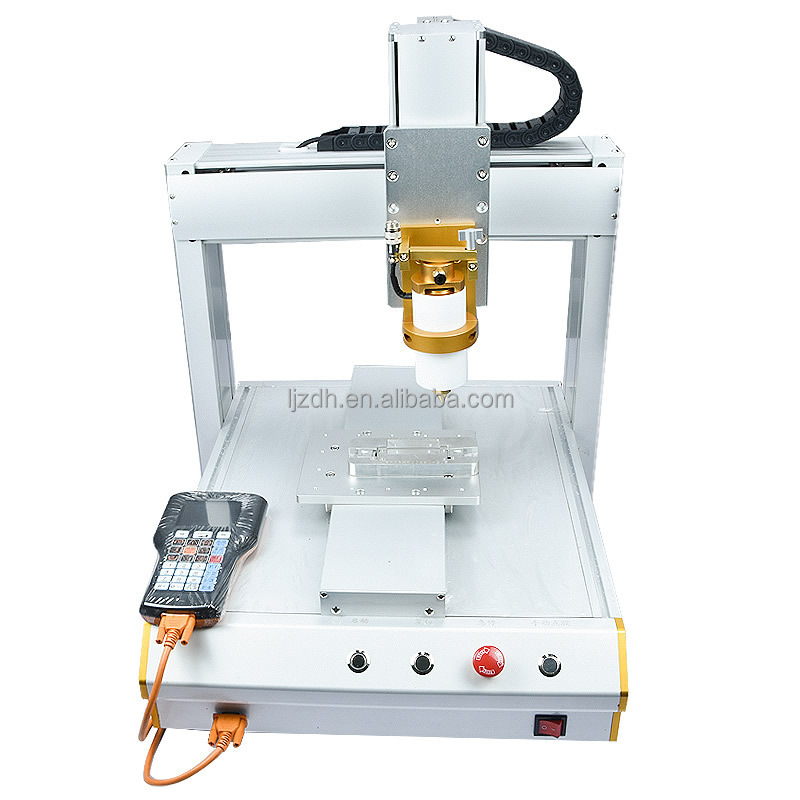

Liujiang 3 axis glue dispensing machine with syringe barrel
automatic epoxy resin dispensing machine epoxy potting machine
3 axis epoxy resin dispensing robot
liquid dispensing machine with 30ml 50ml 70ml syringe barrel
Item/Model | LJ-D3311 | LJ-D3312 | LJ-D3313 | LJ-D3314 |
Number of axes | 3 | 3 | 3 | 3 |
Maximum working area (X / Y / Z) | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm |
Head Number | 1 | 2 | 3 | 4 |
Rotation Axis | - | - | - | - |
Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec |
Unit weight | 45 kg | 45 kg | 46kg | 46 kg |
Dimensions | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm |
Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
Memory capacity | 1–99 programs | 1–99 programs | 1–99 programs | 1–99 programs |
1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | |
Data storage | USB | USB | USB | USB |
General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
Drive method | PTP and CP | PTP and CP | PTP and CP | PTP and CP |
Dispensing controller | External | External | External | External |
Power supply | Auto-switching | Auto-switching | Auto-switching | Auto-switching |
AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | |
Interpolation | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) |
Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
Teach pendant(ENG) | Included | Included | Included | Included |
Moving Method | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle |
Available Graph | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
Heating function | Optional | Optional | Optional | Optional |
Preheat function | Optional | Optional | Optional | Optional |
Pressure | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 |
Approvals | CE | CE | CE | CE |
Silicone dispensing machine
1.Automatic dispenser use:
Mobile phone screen TP hot melt adhesive dispensing, flat TP dispensing, PCB dot solder paste, HD HDMI line solder paste, semiconductor package, PCB board part fixing and protection, LCD glass package and paste, mobile phone board dispensing, Button products, dispensing, speaker packaging and dispensing, battery box dispensing, automotive parts coating, metal parts packaging, quantitative liquid filling, chip bonding and so on.
2.Adapt to glue:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw glue, etc.
