Quick Details
-
Model Number:
-
LA1512S
-
Dimension:
-
406x342x544mm
-
Output Power:
-
200w
-
Rated power:
-
200w
-
type:
-
Line array speaker
-
Rated Impedance:
-
8Ω
-
Max SPL (1m):
-
122dB/ 128dB ( peak value)
-
Frequency Respond:
-
70-20000Hz(60°mode),75-20000Hz(45°mode)
-
Sensitivity(1m,1W):
-
96dB(60°mode)/97dB(45°mode) 98dB(30°mode)/99dB(15°mode)
-
Horizontal Directivity Angle (-6dB):
-
100°
-
Vertical Directivity Angle (-6dB):
-
15°~60°adjustable
-
Dimension (LxWxH):
-
406mmx342mmx544mm
-
Net Weight:
-
15 kg
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
China
-
Brand Name:
-
DSPPA
-
Model Number:
-
LA1512S
-
Dimension:
-
406x342x544mm
-
Output Power:
-
200w
-
Rated power:
-
200w
-
type:
-
Line array speaker
-
Rated Impedance:
-
8Ω
-
Max SPL (1m):
-
122dB/ 128dB ( peak value)
-
Frequency Respond:
-
70-20000Hz(60°mode),75-20000Hz(45°mode)
-
Sensitivity(1m,1W):
-
96dB(60°mode)/97dB(45°mode) 98dB(30°mode)/99dB(15°mode)
-
Horizontal Directivity Angle (-6dB):
-
100°
-
Vertical Directivity Angle (-6dB):
-
15°~60°adjustable
-
Dimension (LxWxH):
-
406mmx342mmx544mm
-
Net Weight:
-
15 kg
Easy install 4x4.5" 12" Subwoofer 2 Way Outdoor Indoor Mini Line Array Loudspeaker System Stereo DJ Powered PA Speaker System
Features
- High sensitivity, high SPL, Stack up to 4 units, maximum
- can connect up to 2 groups
- Adjustable vertical directivity angle to 60°, 45°, 30° or 15°
- Optional special transformer, for switching constantly
- resistance / constant voltage output mode
- Optional ceiling, wall mount, stand mount installation
- All-weather design, ideal for indoor and outdoor venues,
- Can externally be connected to the subwoofer to increase low-frequency sound
Description

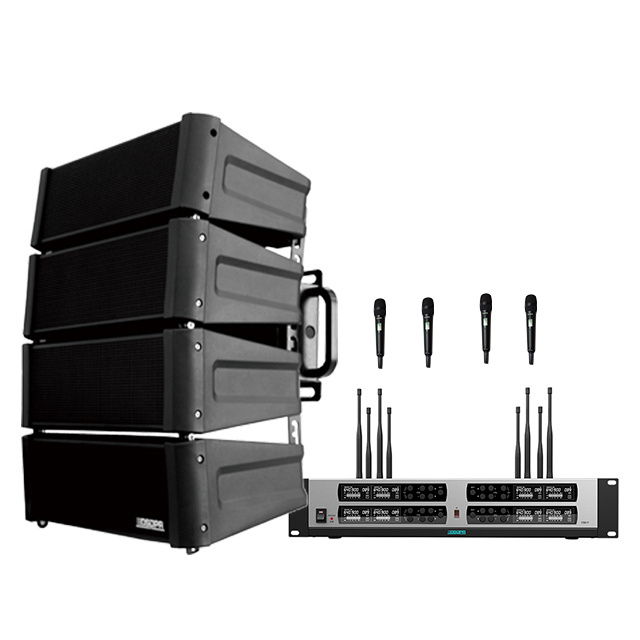

DSPPA LA1512S Line Array Speaker are full-range speaker cabinets with RMS power of 120W and it meets the important need of a versatile public address system that can provide high-quality reinforcement for a wide range of different venues.
DSPPA LA1512S is designed with four adjustable dispersion angles. Within seconds it can be adjust ed between 60, 45, 30, and 15° and all with pattern control below 1 kHz. It supplies with continuous and strong power output at RMS 200 W in a durable, lightweight package. This particular model is of black design to best match the working environment and blends into the background. It supports vertical mounting and horizontal mounting with the built-in bracket . End users can also purchase the optional wall or ceiling mount for even more versatility.
This line array speaker is ideal for a wide range of medium size venues of all different shapes. It
supplies
end users with a quick and ready solution. These include auditoriums, places of worship, banquet halls, community centers as well as dance halls, sports
bars, shopping
malls, boardrooms, gyms, health clubs, and many others
.
Specification:
|
Frequency Respond (-10 dB) |
70-20000Hz(60°mode),75-20000Hz(45°mode) 80-20000Hz(30°mode),85-20000Hz(15°mode) |
|
Sensitivity(1m,1W) |
96dB(60°mode)/97dB(45°mode) 98dB(30°mode)/99dB(15°mode) |
|
Max SPL (1m) |
122dB/ 128dB ( peak value) |
|
Rated Impedance |
8Ω |
|
Rated power |
200W |
|
Horizontal Directivity Angle (-6dB) |
100° |
|
Vertical Directivity Angle (-6dB) |
15°~60°adjustable |
|
Diver element |
4.5″bass ×4(Low and intermediate frequency) 1″treble×12 (High frequency) |
|
Shell Material |
ABS |
|
Operating Temperature |
-15℃~+50℃ |
|
Dimension (L×W×H) |
406mm×342mm×544mm |
|
Net Weight |
15 kg |
