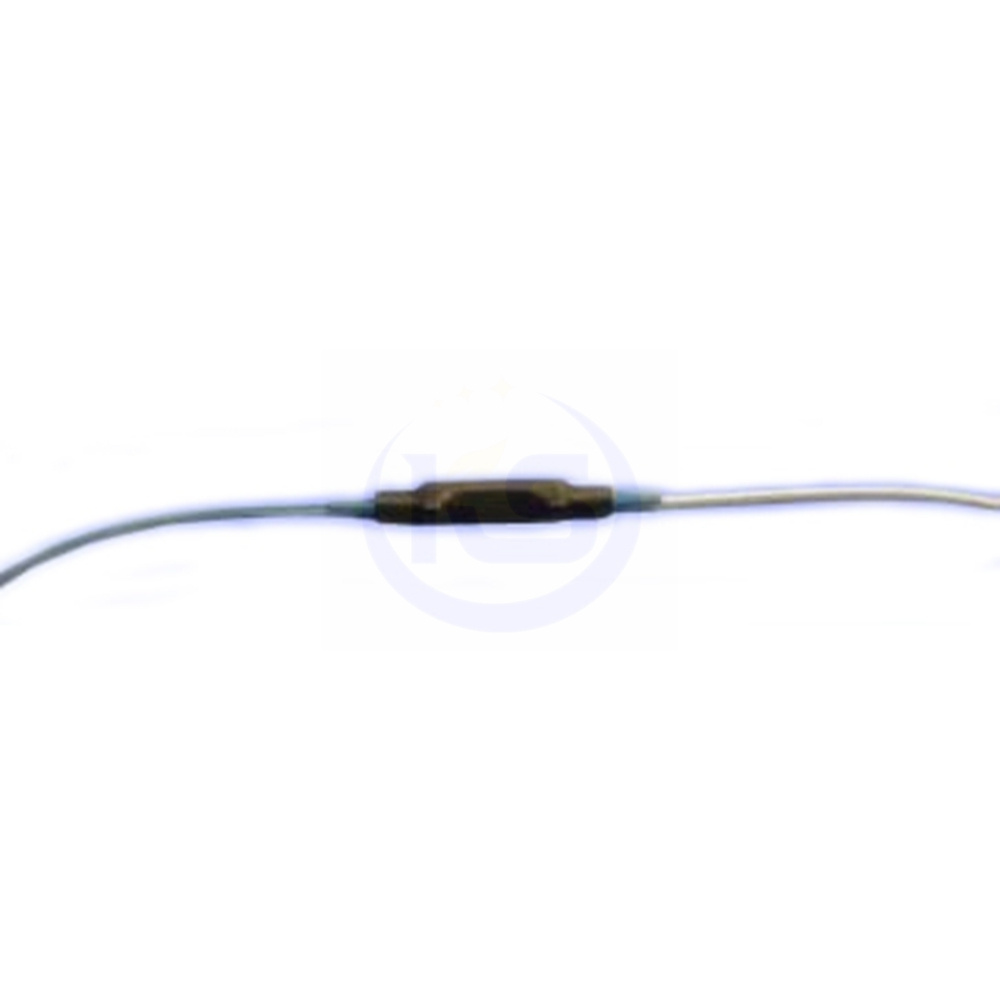

EOFS-xx1 Series Fiberoptic Electric Field Sensor Product Description
This Electric-field sensor, based on EO effect, is probed by a laser through optic fiber and packaged only with dielectric components. It is ideally suitable to remotely and non-intrusively measure electric fields and microwave radiation up to Gigahertz range.
EOFS-xx1 Series Fiberoptic Electric Field Sensor Features
• No metal parts
• Passive
• Miniature
• Optical fiber readout
EOFS-xx1 Series Fiberoptic Electric Field Sensor Applications
• Microwave pulse measurement
• Electric field measurement
EOFS-111 Series Fiberoptic Electric Field Sensor Performance Specifications - High Frequency
| High Frequency Sensor | Min | Typical | Max | Unit |
| Frequency | DC | 7.0 | GHz | |
| Sensitivity | 8 | mV/m-Hz 1/2 | ||
| Maximum detectable E-field | 200 | kV/m | ||
| Damage E-field | 5 | MV/m | ||
| Package Dimension** | 6.0 x 6.0 x 40.0 | mm | ||
* Defined by measuring with a 1550nm laser at 20mW and 10 MHz.
** High frequency sensor
EOFS-121 Series Fiberoptic Electric Field Sensor Performance Specifications of Low Frequency
| Low Frequency Sensor | Min | Typical | Max | Unit |
| Frequency | DC | 400 | MHz | |
| Sensitivity* | 0.8 | mV/m-Hz 1/2 | ||
| Maximum detectable E-field | 1 | kV/m | ||
| Damage E-field | 5 | MV/m | ||
| Package Dimension | 8.0 x 8.0 x 60.0 | mm | ||
* Defined by measuring with a 1550nm laser at 20mW
EOFS-xx1 Series Fiberoptic Electric Field Sensor Ordering Information
| EOFS- | 1 | 1 | 1 | |||||
| Type | Configurarion | Pa ckage | Fiber Type | Fiber Length | Con nector | |||
|
11=High Freq
|
1: Transmissive |
1: Standsrd 0: special |
Bare fber=1
|
Panda PM=1
|
MM 62.5/
125=1
|
0.25m=1
|
None=1
|
|
