Quick Details
-
Marketing Type:
-
Customized
-
Brand Name:
-
Sojay
-
Weight (KG):
-
0.02 KG
-
Product name:
-
405nm laser module
-
Material:
-
Aluminum
-
Beam mode:
-
Dot
-
Dimension:
-
12*35mm/12*45mm
-
Optical Power:
-
20mW,30mW
-
Operation Voltage:
-
3-5V
-
Mean Time To Failure(MTTF):
-
≥8000H
-
Operating Temp.Range:
-
-10~50°C
-
Beam Divergence(Half Angle):
-
0.5mRad
-
Beam Spot size at 10m:
-
<20mm
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Spare Parts Type:
-
Lighting
-
Machinery Test Report:
-
Available on request
-
Marketing Type:
-
Customized
-
Brand Name:
-
Sojay
-
Weight (KG):
-
0.02 KG
-
Product name:
-
405nm laser module
-
Material:
-
Aluminum
-
Beam mode:
-
Dot
-
Dimension:
-
12*35mm/12*45mm
-
Optical Power:
-
20mW,30mW
-
Operation Voltage:
-
3-5V
-
Mean Time To Failure(MTTF):
-
≥8000H
-
Operating Temp.Range:
-
-10~50°C
-
Beam Divergence(Half Angle):
-
0.5mRad
-
Beam Spot size at 10m:
-
<20mm

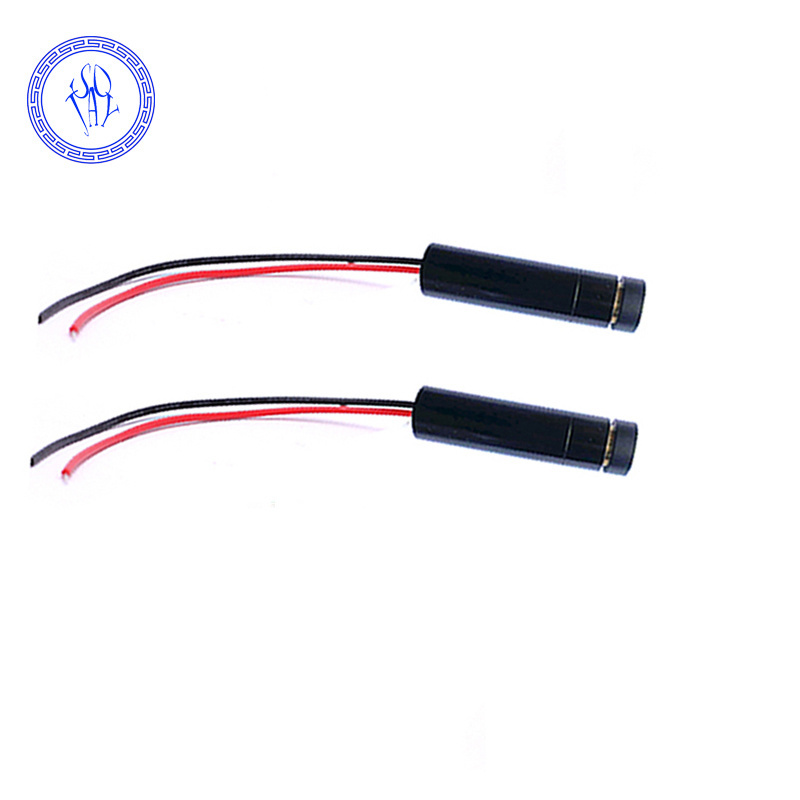

Violet Purple Blue Laser Diode 405nm 20mw 30mw Dot Laser Adjust Focus
|
SPECIFICATION |
405nm laser module |
|
|
1 |
Dimensions |
12x35mm/12x45mm |
|
2 |
Operating voltage (Vop) |
3-5DCV |
|
3 |
Operating current (Lop) |
≤130mA |
|
4 |
Output power (Po) |
20mW,30mW |
|
5 |
Collimating lens |
Aspherical plastic lens |
|
6 |
Spot size at 10m |
<20mm |
|
7 |
Divergence (Half Angle) |
0.5 mRad |
|
8 |
Operating temp.rage |
-10~50°C |
|
9 |
Storage temp.range |
-40~75°C |
|
10 |
Housing |
Aluminum |
|
11 |
Mean time to failure(MTTF) |
≥8000h |
Basic module, compact size with APC Driver Circuit, ideal for industrial Laser.
APPLICATIONS:
- Industrial Laser - for positioning, measuring, pointing and laser sighting device.
-Wood processing.
-Metal processing.
-Stone processing.
-Textile industry.
-Food industry.
-Automotive industry
-Medical science
Note : Laser module housing is an electrical positive surface, it is imperative that contact between the laser moduleand the machine be avoided. This is to prevent damage from the machine electrical leakage. Surge protected power supply to the laser module is strongly recommended.
