Quick Details
-
Motive Force:
-
Electric Power
-
Voltage:
-
110V / 220V / 380V
-
Rinse device:
-
Manual/Automatic
-
Filter material:
-
Quartz Sand / Activated carbon
-
Pump option:
-
Grundfos / CNP
-
Tube:
-
Stainless steel or PVC
-
Optional:
-
Ozone, UV Sterilizer, Softener
-
Certification:
-
ISO 9001:2008, CE
-
Experiences:
-
17 Years Experiences
Quick Details
-
Place of Origin:
-
Guangdong, China
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training
-
Machine capicity:
-
100 LPH To 50000 LPH
-
Motive Force:
-
Electric Power
-
Voltage:
-
110V / 220V / 380V
-
Rinse device:
-
Manual/Automatic
-
Filter material:
-
Quartz Sand / Activated carbon
-
Pump option:
-
Grundfos / CNP
-
Tube:
-
Stainless steel or PVC
-
Optional:
-
Ozone, UV Sterilizer, Softener
-
Certification:
-
ISO 9001:2008, CE
-
Experiences:
-
17 Years Experiences

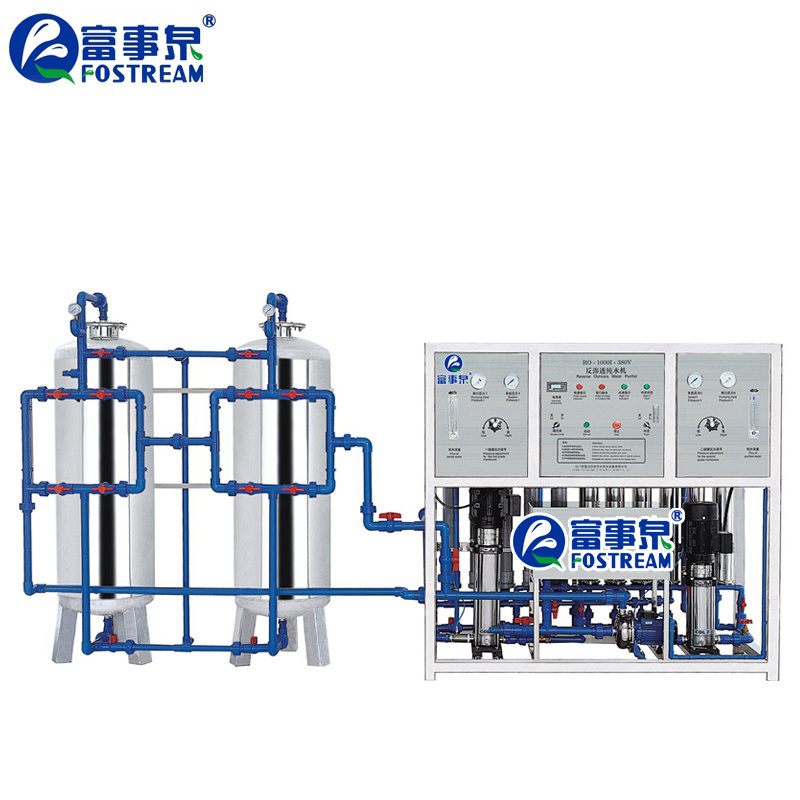

Jiangmen First Small Drinking Water Treatment Plant/RO Water Treatment Unit
Produce water flow meter:100L/H-50.000L/H (Water temperature :25℃)
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Raw water pump/multi pump: Nanfang, Grundfos
Filter media: Quartz sand filter, active carbon filter, security filter( PP filter)
RO Membrane: Filmtec Dow,Hydranautics
Working Process:
1. Raw water pump -- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter --get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter --Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener --exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter --prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump --Provide the high pressure to RO membrane ro.
7.RO system -- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Main Technical Parameters:
| Model |
Capacity of water (Ton/hour) |
General Power (KW) |
Electrical Power (50-60Hz) |
Membrane (Pic) |
Size (L*W*H) (mm) |
Weight (Kg) |
| RO-100L/H | 0.1 | 1.0 | AC220V | EC4021-800A | 690*570*1490 | 100 |
| RO-250L/H | 0.25 | 2.2 | AC220V 18A / 380V 9A | ESPA4040*2 | 1550*900*1820 | 150 |
| RO-500L/H | 0.5 | 2.75 | AC220V 18A / 380V 9A | ESPA4040*3 | 1550*900*1820 | 250 |
| RO-700L/H | 0.7 | 4.25 | AC220V 27.5A / 380V 13A | ESPA4040*4 | 1550*900*1820 | 350 |
| RO-1000L/H | 1 | 3.75 | AC220V 24A / 380V 12A | ESPA4040*4 | 1980*900*1940 | 500 |
| RO-2000L/H | 2 | 4.75 | AC380V 8.8A | ESPA4040*6 | 4800*700*2050 | 700 |
| RO-3000L/H | 3 | 5.75 | AC380V 10A | ESPA4040*7 | 6000*800*2200 | 800 |
| RO-4000L/H | 4 | 7.5 | AC380V 12A | ESPA4040*8 | 7000*900*2400 | 1000 |
| RO-5000L/H | 5 | 12.5 | AC380V 25A | ESPA8040*9 | 8000*1000*2700 | 1500 |
| RO-6000L/H | 6 | 15 | AC380V 30A | ESPA4040*10 | 4300*1000*2300 | 1700 |
| RO-12000L/H | 12 | 19 | AC380V 35A | ESPA8040*12 | 8500*1600*1920 | 2500 |
| RO-15000L/H | 15 | 19 | AC380V 35A | ESPA8040*15 | 10100*1870*3000 | 4000 |
| RO-20000L/H | 20 | 22.5 | AC380V 45A | CPA28040*20 | 10000*1700*4200 | 4600 |
| RO-30000L/H | 30 | 37.5 | AC380V 68A | CPA28040*25 | 13000*1900*3500 | 6000 |
Choose your RO water production capacity: (Which machine should I choose?)
It depends on your raw water quality ,pure water requirement and the water production you need
Choose your UF water production capacity:
Our products are sold well not only in domestic, but also in Chile,Venezuela,Egypt,Peru,Maldives,United States,Brunei Darussalam,Saudi Arabia,Kenya,Panama,Cambodia,Bhutan,Bolivia,Bulgaria,Nicaragua,Dominican Republic,Somalia,Australia,Switzerland,Mozambique and other countries.
| If you want to know more about our transaction history. Pls click |
VIEW MORE
>
|
Q1.Are you a factory or trading company?
A1.We are a professional
water treatment and filling equipment
manufacturing factory that set up for
17 years
.We always pay attention to the development of the industry !.We can give a discount according to the quantity of machine you purchase.
B1.At the same time,we take effective measures to control the production process for ensuring the quality of products.
Our products are certified.And we can supply
SGS, BV, TUV, ISO9001, ISO14001, OHSAS18001, CE certification.
C1,Website: http://www.jmangel.com Website on alibaba: http://jmangel.en.alibaba.com
Q2.Where is your factory located? How can I visit there?
A2:Our factory is located in No.141 plant, Qingnian Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China, All our clients, from home or abroad, are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in RO water treatment machines , UF water treatment machines , small bottle filling machines and 5 gallon filling machines etc.
Q4: How can I know your machine works well?
A4: Before delivery, we shall test the machine working condition for you.
Q5: What's the information you need to know before order?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What’s the application of purifier water ?
