Quick Details
-
Voltage:
-
customerized local voltage
-
Power:
-
30-50KW or Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
10000
-
Product name:
-
coating machine
-
Sample:
-
yes
-
Material:
-
SUS304
-
Technology:
-
sputtering Coating
-
Application:
-
phone class and,touch screen,panel ,camera cover
-
Function:
-
Protective Film
-
Control System:
-
PLC+ touch screen
-
Ultimate vacuum:
-
3.0x10-4pa
-
Quality:
-
Fast film forming speed
-
Advantage:
-
High-efficiency
Quick Details
-
Machine Type:
-
pvd coating machine, Coating Equipment
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HANA
-
Voltage:
-
customerized local voltage
-
Power:
-
30-50KW or Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
10000
-
Product name:
-
coating machine
-
Sample:
-
yes
-
Material:
-
SUS304
-
Technology:
-
sputtering Coating
-
Application:
-
phone class and,touch screen,panel ,camera cover
-
Function:
-
Protective Film
-
Control System:
-
PLC+ touch screen
-
Ultimate vacuum:
-
3.0x10-4pa
-
Quality:
-
Fast film forming speed
-
Advantage:
-
High-efficiency
System introduction

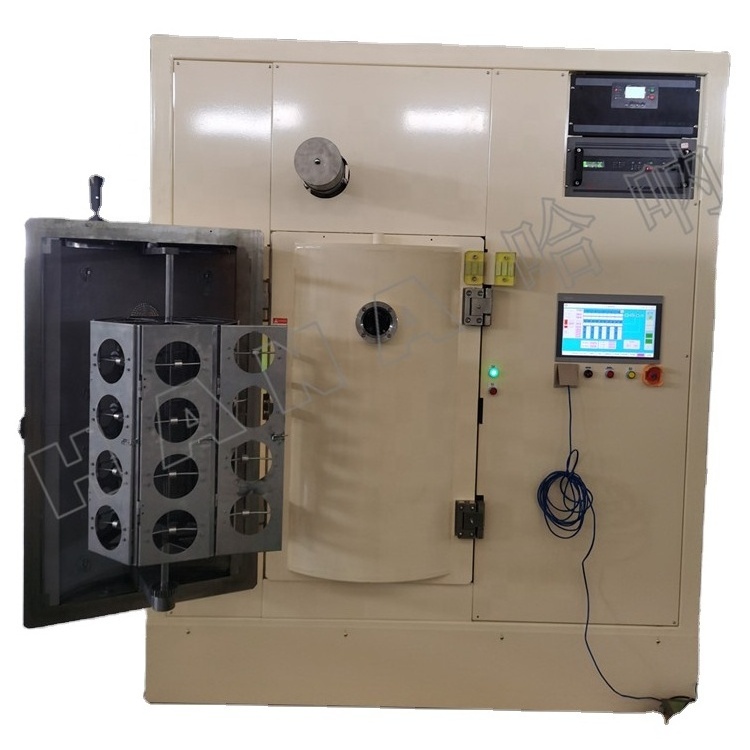

Hana sputtering coating system is a multi-functional sputtering coating equipment for color coating and anti-reflection coating in the panel fields of mobile phones and automobiles. This equipment is single door structured with multiple target positions inside.
It can also do super thick film over 500 nm. The product hanger in the cavity is detachable and can rotate at a high speed of over 60 turns per min.
Application Phone glass, touch panel, touch screen, phone shell/case, camera Cover, automotive lamp, accessories, logos, wheel hubs, etc
Hana sputtering coating system is a multi-functional sputtering coating equipment for color coating and anti-reflection coating in the panel fields of mobile phones and automobiles. This equipment is single door structured with multiple target positions inside.
It can also do super thick film over 500 nm. The product hanger in the cavity is detachable and can rotate at a high speed of over 60 turns per min.
Application Phone glass, touch panel, touch screen, phone shell/case, camera Cover, automotive lamp, accessories, logos, wheel hubs, etc
Advantages
1. 8 targets can be flexibly configured with material of the target.
2. Each target can be opened simultaneously or repeatedly according to the requirements.
3. Segmented gas distribution makes the film uniformity better.
4. The coating area that can be processed each chamber is large and high efficient.
5. Convenient operation and real-time monitoring data ensure the quality of the product.
6. The reasonable overall structure is convenient for operation and maintenance.
|
Model
|
VSD 1621
|
VSD 1821
|
VSD 2527
|
||
|
Dimension
|
1600X2100
|
1800x2100
|
2500x2700
|
||
|
Material
|
SUS304 stainless steel or carbon steel
|
|
|
||
|
Vacuum system
|
Rotary pump+Booster pump+Turbo pump (3.0*10-4Pa)
|
|
|
||
|
Working cycle
|
50-100minutes/chamber,7m2/chamber
|
|
|
||
|
Process power
|
Imported MF power supply
|
|
|
||
|
Cooling system
|
POLY cold unit( reaching under 130°C), CHILLER
|
|
|
||
|
Control system
|
PLC and one touch screen
|
|
|
||
|
Remark
|
All can be designed according to customer's requests.
|
|
|
||
Core competence
Stable sputtering coating reactive coating technology
Patented cathode structure design, multi-section gas path control technology and constant pressure control gas volume, can achieve stable control of magnetron sputtering rate, using online real-time monitoring of film thickness design, to ensure the uniformity of the reaction film of various gases.
Shanghai Hana Technology Co., Ltd. is a high-tech enterprise established in 2004 in Shanghai. The core competence of our company is to provide customized process technical solutions according to the process requirements of each industry and product, and give professional guidance and training, to meet and solve the various needs from the customer.
Our main products are Evaporation coating system, automotive lamp coating system，AF coating system，magnetron sputter coating system, AR coating system, in-line vacuum coating system, plasma coating system, EMI coating system, ion sputter car light coating system, phone lens coating system, phone camera coating system, battery vacuum dryer, vacuum exhaust machine and Vacuum accessories etc.
The products could be used for automotive lamp, automotive accessories, camera, phone glass, phone case, phone sell, phone semiconductor, touch screen, panel computer, battery, film, appliance （3C), etc.
Our main products are Evaporation coating system, automotive lamp coating system，AF coating system，magnetron sputter coating system, AR coating system, in-line vacuum coating system, plasma coating system, EMI coating system, ion sputter car light coating system, phone lens coating system, phone camera coating system, battery vacuum dryer, vacuum exhaust machine and Vacuum accessories etc.
The products could be used for automotive lamp, automotive accessories, camera, phone glass, phone case, phone sell, phone semiconductor, touch screen, panel computer, battery, film, appliance （3C), etc.
Q: Are you a manufacturer?
A: Yes, we are the manufacturer having 20 years experience of vacuum coating machine. Welcome to visit our factory.
Q: Is it hard to operate the machine?
A: Not at all. Our machine has two operate methods: the Manual and Auto.
Under the Auto process, machine will start automatically and complete the whole process by itself.
Q: When is the delivery time?
A: Delivery will occur 90 days from order date. Faster delivery time can be arranged if needed.
Q: Can we test the machine before shipment?
A: Yes, of course! You are warmly welcomed to our factory.
Q: Do you provide after-sales service?
A: After-sales problems shall be solved online within 24 hours.
Long-term product solution and remote technical support is provided.
Q: Do you provide the second-hand machine?
A: Yes, we also provide second-hand machine. You can provide your requirement.
A: Yes, we are the manufacturer having 20 years experience of vacuum coating machine. Welcome to visit our factory.
Q: Is it hard to operate the machine?
A: Not at all. Our machine has two operate methods: the Manual and Auto.
Under the Auto process, machine will start automatically and complete the whole process by itself.
Q: When is the delivery time?
A: Delivery will occur 90 days from order date. Faster delivery time can be arranged if needed.
Q: Can we test the machine before shipment?
A: Yes, of course! You are warmly welcomed to our factory.
Q: Do you provide after-sales service?
A: After-sales problems shall be solved online within 24 hours.
Long-term product solution and remote technical support is provided.
Q: Do you provide the second-hand machine?
A: Yes, we also provide second-hand machine. You can provide your requirement.
