Quick Details
-
Brand Name:
-
SuPuLi
-
Model Number:
-
SPLQ2-125E
-
Rated Current:
-
125A
-
Product name:
-
ATS Dual Power Transfer Switch
-
Insulation Voltage Ui:
-
AC690V,50Hz
-
Rated voltage Ue:
-
AC220V,50Hz
-
Pole No:
-
3POLE
-
Rated short circuit current lq:
-
50kA
-
Rated impulsewithstand voltage:
-
8kV
-
Conversion time ofcontactor:
-
<50ms
-
Operation conversiontime:
-
<50ms
-
Power off time:
-
<50ms
-
Certificate:
-
CE,Rohs
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SuPuLi
-
Model Number:
-
SPLQ2-125E
-
Rated Current:
-
125A
-
Product name:
-
ATS Dual Power Transfer Switch
-
Insulation Voltage Ui:
-
AC690V,50Hz
-
Rated voltage Ue:
-
AC220V,50Hz
-
Pole No:
-
3POLE
-
Rated short circuit current lq:
-
50kA
-
Rated impulsewithstand voltage:
-
8kV
-
Conversion time ofcontactor:
-
<50ms
-
Operation conversiontime:
-
<50ms
-
Power off time:
-
<50ms
-
Certificate:
-
CE,Rohs
|
Product Name
|

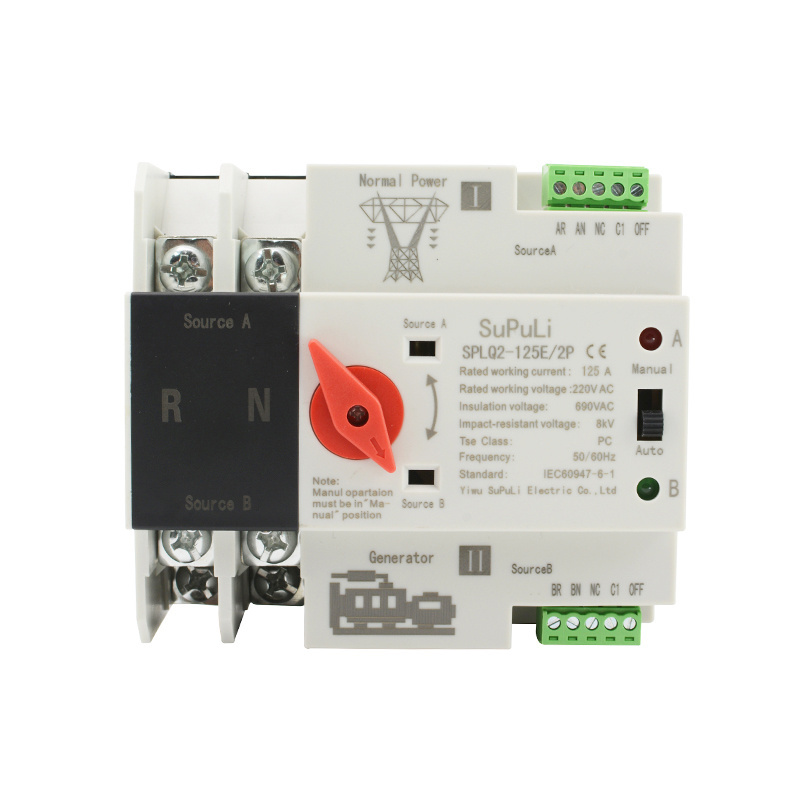

ATS 125A 2Pole Din Rail Power Transfer Switch Ac Automatic Transfer Switch With CE Certificate
|
|
|
|
|||
|
Product Brand
|
SuPuLI
|
|
|
|
|||
|
Type
|
SPLQ2-125E
|
|
|
|
|||
|
Rated working current
|
125A
|
|
|
|
|||
|
Rated working voltage
|
220V
|
|
|
|
|||
|
Insulation voltage
|
690V
|
|
|
|
|||
|
Impact-resistant voltage
|
8kV
|
|
|
|
|||
|
Tse class
|
PC
|
|
|
|
|||
|
Frequency
|
50/60Hz
|
|
|
|
|||
|
Standard
|
IEC/EN60947-6-1
|
|
|
|
|||
|
Electrical
|
2000 times;
|
|
|
|
|||
|
Manual operation
|
5000 times
|
|
|
|
|||
|
Conformity Certification
|
TUV ,CE,ROHS
|
|
|
|
|||
