Quick Details
-
Certificate:
-
CE ROHS
-
Type:
-
Assembly Rtd
-
Size:
-
customize
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vsec
-
Name:
-
K/J/PT100/PT1000 thermocouple
-
Certificate:
-
CE ROHS
-
Type:
-
Assembly Rtd
-
Size:
-
customize
Product Description
Technical Parameters-High temperature thermocouple
Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires
legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction
experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple to calculate the
temperature.
legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction
experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple to calculate the
temperature.

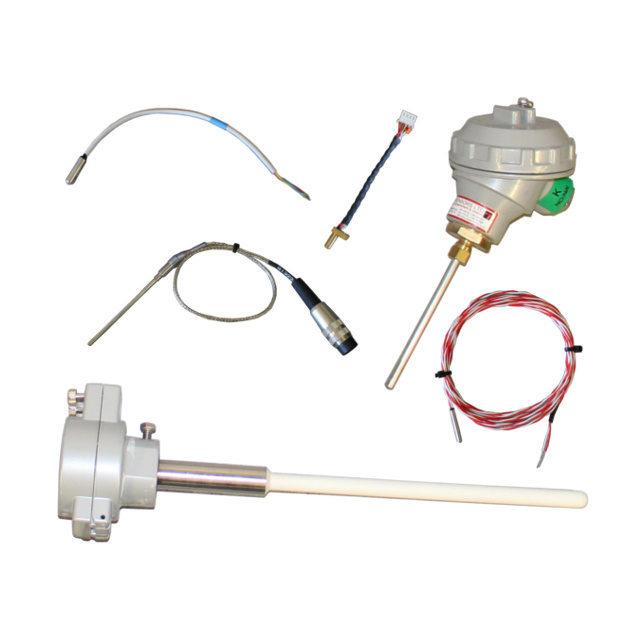

Different styles of thermocouples are available
|
Classification
|
Type
|
Temperature
|
Material
|
Use Requirement
|
|
Thermocouple
|
S
|
0~1600℃
|
Pt/Rh 10
|
Insertion Installation
|
|
|
B
|
0~1700℃
|
Pt/Rh 30
|
|
|
|
R
|
0~1600℃
|
Pt/Rh 13
|
|
|
|
N
|
0~1300℃
|
Ni/Cr
|
High Temperature condiciton
|
|
|
K
|
0~1300℃
|
Ni/Si
|
Noraml condition
|
|
|
J
|
0~600℃
|
Fe-Cu/Ni
|
Normal temperature
|
|
|
T
|
0~600℃
|
Cu-Cu/Ni
|
Normal temperature
|
|
|
E
|
0~600℃
|
Ni/Cr-Cu/Ni
|
Normal temperature
|
|
Classification
|
Type
|
Temperature
|
Material
|
Use Requirement
|
|
Resistance
|
PT10
|
-200~650℃
|
Pt
|
Stable
|
|
|
PT100
|
-200~500℃
|
Pt
|
With Different Range
|
|
|
PT200
|
-200~650℃
|
Pt
|
|
|
|
PT500
|
-200~650℃
|
Pt
|
|
|
|
PT1000
|
-200~500℃
|
Pt
|
With Different Range
|
|
Thermistor
|
NTC
|
-50~300℃
|
|
Customized
|
Customized
