Indoor Full Color LED Screen display panel P2.5 Flexible LED Panel Curved Flexible LED Board Soft Led Module

Indoor Full Color LED Screen display panel P2.5 Flexible LED Panel Curved Flexible LED Board Soft Led Module

FOB Reference Price: Get Latest Price

≥1 Pieces

US $18.2

≥50 Pieces

US $17.9

≥100 Pieces

US $17.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: FULL COLOR

Panel Size:: 320*160mm, 320*160mm

Place of Origin:: Guangdong, China

Model Number:: SZXGC-P2.5

Usage:: INDOOR

Tube Chip Color:: FULL COLOR

Product name:: indoor modules

Pixel pitch:: 2.5mm

Brightness:: 1200cd/sqm

Module size:: 320*160

Warranty:: 2years

Life span:: 100000 Hs

Certificate:: CE ROHS FCC

Resolution:: 128*64

Quick Details

Application:: Indoor

Type:: LED

Brand Name:: XGC

Color:: FULL COLOR

Panel Size:: 320*160mm, 320*160mm

Place of Origin:: Guangdong, China

Model Number:: SZXGC-P2.5

Usage:: INDOOR

Tube Chip Color:: FULL COLOR

Product name:: indoor modules

Pixel pitch:: 2.5mm

Brightness:: 1200cd/sqm

Module size:: 320*160

Warranty:: 2years

Life span:: 100000 Hs

Certificate:: CE ROHS FCC

Resolution:: 128*64

Product Description

Parameter	P2.5
Pixel Configuration ( 3in1 SMD )	2121
Pixel pitch(mm)	2.5
*Module dimensions WH(mm)**	320*160
*Module pixels W H(Pixels)**	128*64
Pixel density per sqm(Pixels)	160000
Cabinet weight(kg)	25
Driving Type(scan)	1/32
Brightness(cd/m2)	1200
Refresh Rate(Hz)	≥1200
Horizonta/Vertical Viewing Angle(°)	140/140
AC Input Operating Voltage(V)	110V/220V±15%
AC Input Frequency(Hz)	50/60
Storage Temperature(℃)	-40~+60
Operating Temperature(℃)	-10~+40
Storage Humidity/Operating Humidity(RH)	10%~90% / 10%~90%
IP rating (Front/Rear)	IP40
Lifetime Typical Value/MTBF(hrs)	100000/10000
Operating system	Windows 2000 / Windows Xp / Windows 7/Windows 8/Windows 10 and more
Accepting signal with video processor	PAL/NTSC/SECAMDVI,HDMI,VGA,SDI,HD-SDI,DP,AV,S-VIDEO
More options : P1.875/P2 /P3/P4/P5 etc.

Product details

Project case

Various shape can be customized,indoor/outdoor are available.

Specification

Products features:

1.add silicone frame + mask. Embedded magnet,

2.reduce stitching gap. Soft, thin, strong magnets column, flexible led module.
3.The use of advanced SMT technology reduced the bad solder and static issue significantly clean, exquisite and high color
reproduction effect for video and text.

No mask,no cover,face mask,no bottom design.

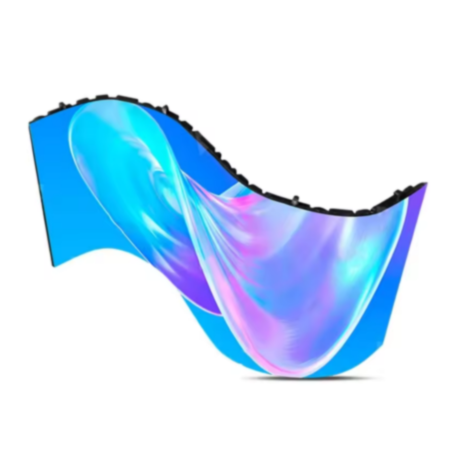

Flexible LED screen main advantage

1.The installation of the flexible LED display can be any curved surface, suitable for artistic modeling;
2.Suitable for surface display of stage backgrounds, exhibition halls, indoor conference rooms, etc.；
3.The installation of the flexible LED display completes the on-site installation structure, adopts a strong magnetic adsorption device, direct adsorption, convenient installation and convenient maintenance. Both safety and stability are high；
4.The PCB is made of flexible soft board, and the mask and the bottom case are made of rubber；
5.The connection between the modules uses a high-end connector - HDMI connector；
6.More reliable and stable with distributed scanning and modular design；
7.High gray level and high refresh rate design: the gray level can be 10-16bit, and the refresh frequency can be 400-1500Hz, so that the LED display screen has no delay and smear phenomenon.
