Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price
Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price
Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price
Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price
Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price
Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price
Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price
Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price

Automatic 3d CNC led Metal/Aluminum Sign/Stainless Steel Profile Channel Letters Notching Bending Machines Price

FOB Reference Price: Get Latest Price
≥1 Sets
US $2370
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
320
Products name::
Channel letter bending bender machine
Machine Type:
Roller-Bending Machine
Function:
Auto Feeding+bending+slotting
Model::
BWZ-B1
Applicable material:
Aluminum
Material thickness::
0.3-1.5mm
Material width::
10-180mm
Precision::
0.1mm/100Meter
Document format::
AI/DXF/PLT
Working Voltage::
220V 50HZ 1PH or Customized

Quick Details

Place of Origin:
Shandong China
Brand Name:
Baoyuantong
Year:
2023
Weight (KG):
320
Products name::
Channel letter bending bender machine
Machine Type:
Roller-Bending Machine
Function:
Auto Feeding+bending+slotting
Model::
BWZ-B1
Applicable material:
Aluminum
Material thickness::
0.3-1.5mm
Material width::
10-180mm
Precision::
0.1mm/100Meter
Document format::
AI/DXF/PLT
Working Voltage::
220V 50HZ 1PH or Customized
Products Information

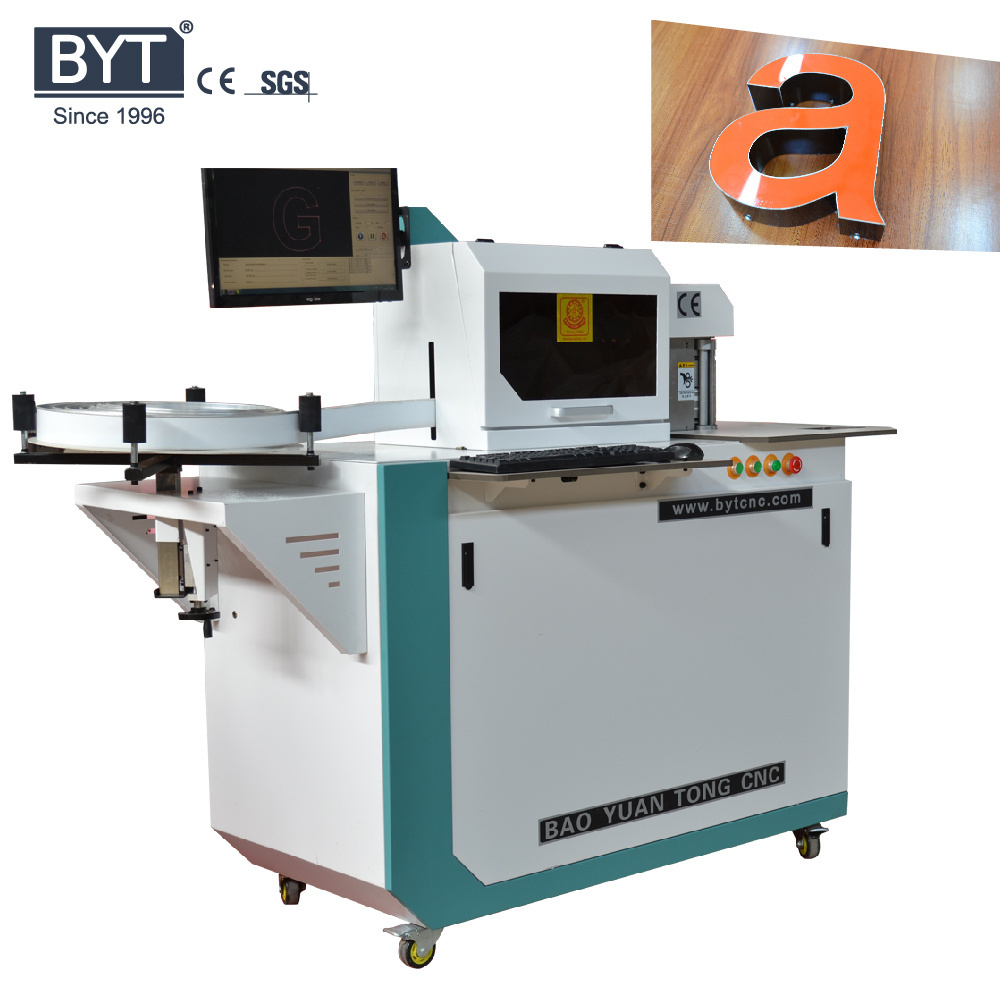

BWZ-B1 Alminum3D letter bender Channel Letter Bending Machine For acrylic metal signs making
Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry.
When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production.
The channel letter bending machine can process many materials aluminum profiles, aluminum strip ) and does not damage the material.
The processing precision is high and the speed is fast.
The material thickness and tool adjustments are all adjusted by software,moreconvenient and quickly.
Technical datas:
Model
BWZ-B1
Function
Automatic feeding,slotting and bending
Applicable Material  (Alu=Aluminum)
Flat Alu,Folding Alu, Channlume
Material Width
Flat Alu:≤180mm Folding Alu:≤160mm ;Channelume:70,90,110mm
Material Thickness
Aluminum:0.3~1.5mm
Bending Radius
7mm
Feeding
φ36mm feeding wheel+Guide material auxiliary+Encoder
Slotting System
Motor control
Bending
Coupled extrusion-Double copper shaft flat arc bender
Control System
ADT
Power
<1500W
Air Pressure
0.6MPa
Air Pressure
Dxf, Ai,Plt
Working Voltage
220V/ 50-60HZ/1P
Net Weight(kgs)
270
Overall Size(mm)(L*W*H)
2100*800*1530

Whole machine advantage:

1.Whole machine guarantee 2 years , the motor guarantee 3 years
2.Processing material height 10-180mm , Thickness : 0.3-1.5mm .
3.All machining parts be treated with hard chromium plating ,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.1. Using the most advanced ADT operating software , easy to learn, usually only after 1-2 hours of training by our engineers,customers can operate and use independently.
4.2. The software have Length closed-loop control system ,the length precision ≤0.1mm.
Feeding:
The feeding roller diameter 36mm and install encoder, ensure the feeding precision and speed.
Notching:
The stability, practicability and accuracy of cutting are guaranteed by the following structure.
20mm Taiwan guide rail
Motor lifting control cut not cylinder
More stable four-column design
Automatic adjust cutting depth
Bending:
Double cooper shaft flat arc bending device ,small radian beat and large radian extrusion molding ,processing speed fast and don’t damage the material ,finish 80-100 ㎡/day .
Custom Finish Samples
Customer Feedback
Click below picture you will find letter bender detail video ,it is our customer recently feedback our CNC letter bending machine and laser welding machine. it is our duty to provide good service to our every customer .
Related Product
Our serivce
Keep Quality and Service Be Our First Responsibility
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .

Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.
