Quick Details
-
Brand Name:
-
KAICHENG
-
Dimension(L*W*H):
-
2213*870*1800
-
Weight:
-
80 KG
-
Power:
-
26KW
-
Name:
-
Twist Machine KC258
-
Usage:
-
Nylon yarn, polyester yarn, PP yarn ect
-
Spinning Equipment:
-
Rotor Spinning System
-
Brand:
-
KAICHENG
-
Number of Spindle:
-
80spindles/set
-
Machine Type:
-
direct cabling
-
Spindle Speed:
-
Max 700r/min
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Application:
-
twisting yarns
-
Production Capacity:
-
according to the actual condition
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAICHENG
-
Dimension(L*W*H):
-
2213*870*1800
-
Weight:
-
80 KG
-
Power:
-
26KW
-
Name:
-
Twist Machine KC258
-
Usage:
-
Nylon yarn, polyester yarn, PP yarn ect
-
Spinning Equipment:
-
Rotor Spinning System
-
Brand:
-
KAICHENG
-
Number of Spindle:
-
80spindles/set
-
Machine Type:
-
direct cabling
-
Spindle Speed:
-
Max 700r/min
-
After-sales Service Provided:
-
Video technical support
Products Description

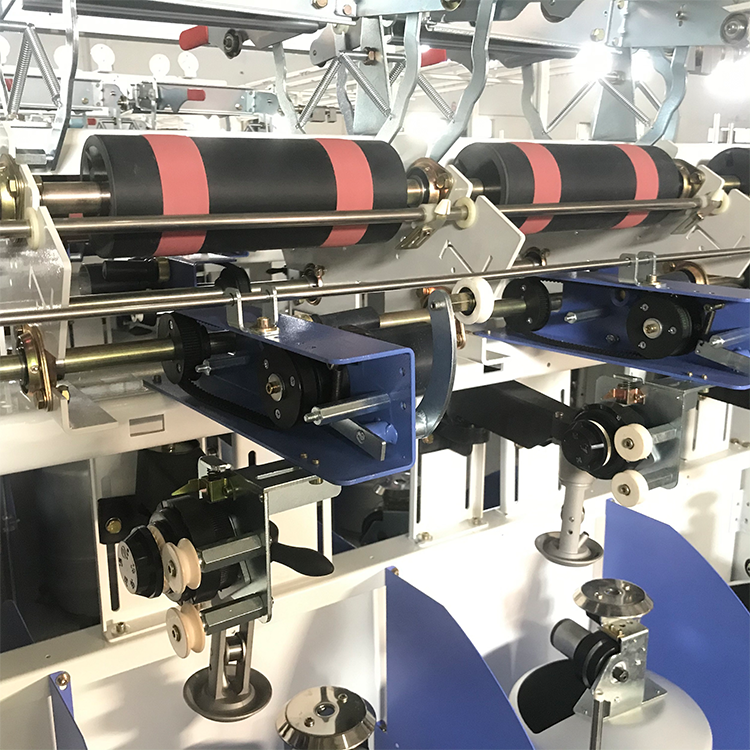

KC258B Direct Cabling Machine
Apply to :It is applied to make twisting of nylon yarns,polyester yarns,tire cords,various industrial yarns and carpet yarns
Products features
◎
Low energy consumption
: It can greatly reduce power consumption per unit production( environmentally friendly motor or apron belt drive is optional for each spindle).
◎ Convenient adjustment on tension : it’s equipped with flexible and stable tensioner inside& outside, which is convenient to adjust the tension.
◎ Simple operation : pneumatic threading and manual brake design for outside yarn is to reduce the intensity of workers and improve production efficiency.
◎ Compact structure : makes machine less occupation of space, The height of the whole machine is reasonable and considerate,which is easy to take off yarn bobbins or change yarn bobbins;
This machine takes small occupation of space, which can improve the utilization rate of working land.
◎ Reasonable composition : air duct and yarn guide channel are assigned accurately, to ensure the machine nice appearance and convenient operation.
◎ Convenient adjustment on tension : it’s equipped with flexible and stable tensioner inside& outside, which is convenient to adjust the tension.
◎ Simple operation : pneumatic threading and manual brake design for outside yarn is to reduce the intensity of workers and improve production efficiency.
◎ Compact structure : makes machine less occupation of space, The height of the whole machine is reasonable and considerate,which is easy to take off yarn bobbins or change yarn bobbins;
This machine takes small occupation of space, which can improve the utilization rate of working land.
◎ Reasonable composition : air duct and yarn guide channel are assigned accurately, to ensure the machine nice appearance and convenient operation.
Product parameter
|
Machine structure
|
Double sides,single layer,
outer yarn thread pneumatically
|
|
Number of spindles
|
10n,80 spindles are standard
|
|
Spindle gauge
|
Basic 400mm,others can be selected
|
|
Single spindle drive motor
|
500W/spindle
|
|
Twist range
|
120-800T/M
|
|
Traverse
|
150mm-250mm
(according to actual situation)
|
|
Rated power
|
30KW
|
|
Start-up mode
|
Frequency conversion slow start
|
|
Take-up package
|
Max. 8kg
|
|
Spindle speed range
|
Max.700r/min
|
|
Spindle tensioner
|
Magnetic tensioner
|
|
Winding motor
|
1.1KW
|
|
Winding speed
|
Max.80m/min
|
|
Spindle drive
|
Apron belt circulation drive,single spindle driving for option
|
Dimensions
Packaging:Wooden Case and Pallet
(according to customer's request)
Trasportation:Ocean,Land,Air
Port:Ningbo Port, Shanghai Port
