Quick Details
-
Main Circuit Rating Voltage:
-
220/230/380/400/415/500/660/690V
-
Main Circuit Rating Current:
-
9/12/18/25/32/40/50/65/80/95A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CGZ
-
Model Number:
-
CJX2(LC1D)
-
Product Name:
-
magnetic Telemecanique AC Contactor
-
Rated frequency:
-
50Hz/60Hz
-
Certificate:
-
ISO9001:2000,ISO14001:1996,CE
-
Standard:
-
IEC60947-4,GB14048-4
-
Rail:
-
Install 35mm/75mm rail
-
Voltage:
-
220V/230V/380V/400V/415V/500V/660V/690V
-
Delivery detail:
-
7-10days
-
Display Type:
-
Analog Only
-
Current:
-
9/12/18/25/32/40/50/65/80/95A
-
Contact NO.:
-
3P+NO/3P+NC/3P+NO+NC
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
220/230/380/400/415/500/660/690V
-
Main Circuit Rating Current:
-
9/12/18/25/32/40/50/65/80/95A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CGZ
-
Model Number:
-
CJX2(LC1D)
-
Product Name:
-
magnetic Telemecanique AC Contactor
-
Rated frequency:
-
50Hz/60Hz
-
Certificate:
-
ISO9001:2000,ISO14001:1996,CE
-
Standard:
-
IEC60947-4,GB14048-4
-
Rail:
-
Install 35mm/75mm rail
-
Voltage:
-
220V/230V/380V/400V/415V/500V/660V/690V
-
Delivery detail:
-
7-10days
-
Display Type:
-
Analog Only
-
Current:
-
9/12/18/25/32/40/50/65/80/95A
-
Contact NO.:
-
3P+NO/3P+NC/3P+NO+NC
Specification
CJX2 (LC1D) 220v magnetic Telemecanique AC Contactor
CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor.
AC Contactor Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. AC Contactor is produced according to IEC 60947-4, GB14048-4.
Technical Data
|
Type |
Rated
voltage(V) |
Conventional
current(A) |
Rated
current(A) |
Control power(kw) |
No .of contacts |
Installation Method |
||||
|
220V |
380V |
415V |
440V |
660V |
||||||
|
LC1-0910 |
660 |
20 |
9 |
2.2 |
4 |
4 |
4 |
5.5 |
3P+1NO |
1with two
screws
rail |
|
LC1-0901 |
660 |
3P+1NC |
||||||||
|
LC1-1210 |
660 |
20 |
12 |
3 |
5.5 |
5.5 |
5.5 |
7.5 |
3P+1NO |
|
|
LC1-1201 |
660 |
3P+1NC |
||||||||
|
LC1-1810 |
660 |
32 |
18 |
4 |
7.5 |
9 |
9 |
9 |
3P+1NO |
|
|
LC1-1801 |
660 |
3P+1NC |
||||||||
|
LC1-2510 |
660 |
40 |
25 |
5.5 |
11 |
11 |
11 |
15 |
3P+1NO |
|
|
LC1-2501 |
660 |
3P+1NC |
||||||||
|
LC1-3210 |
660 |
50 |
32 |
7.5 |
15 |
15 |
15 |
18.5 |
3P+1NO |
|
|
LC1-3201 |
660 |
3P+1NC |
||||||||
|
LC1-4011 |
660 |
60 |
40 |
11 |
18.5 |
22 |
22 |
30 |
3P+NO+NC |
1with three
screws
0r 35mm din rail |
|
LC1-5011 |
660 |
80 |
50 |
15 |
22 |
25 |
30 |
33 |
||
|
LC1-6511 |
660 |
80 |
65 |
18.5 |
30 |
37 |
37 |
37 |
||
|
LC1-8011 |
660 |
125 |
80 |
22 |
37 |
45 |
45 |
45 |
||
|
LC1-9511 |
660 |
125 |
95 |
25 |
45 |
45 |
45 |
45 |
||
Dimension & Mounting Size
|
Type |
A |
B |
C |
D |
E |
a |
b |
Ø |
|
LC1-D09~12 |
47 |
76 |
82 |
113 |
133 |
34/35 |
50/60 |
4.5 |
|
LC1-D18 |
47 |
76 |
87 |
118 |
138 |
34/35 |
50/60 |
4.5 |
|
LC1-D25 |
57 |
86 |
95 |
126 |
146 |
40 |
48 |
4.5 |
|
LC1-D32 |
57 |
86 |
100 |
131 |
151 |
40 |
48 |
4.5 |
|
LC1-D40~65 |
77 |
129 |
116 |
145 |
165 |
40 |
100/110 |
6.5 |
|
LC1-D80~95 |
87 |
129 |
127 |
175 |
195 |
40 |
100/110 |
6.5 |
Feature
CJX2 series AC contactor, small size, light weight, long working life, can assemble different accessories, such as stacking auxialiry contact group, air delay contact, mechanical interlocks, to form time delay contactor, mechanical interlock contactor, star-delta starter, also inset thermal relay to form magnetic starter .

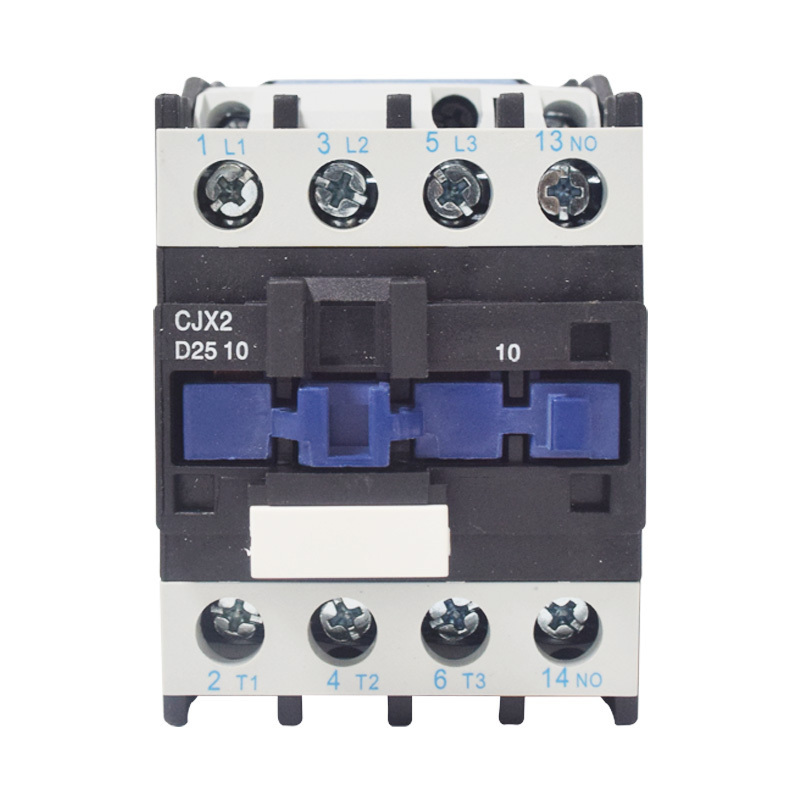

Product Photos
