Quick Details
-
Type:
-
Thermoelectric assembly
-
Product name:
-
Thermoelectric cooler
-
Material:
-
aluminum heatsink , peltier module, fans
-
Payment:
-
T/T
-
Delivery Time:
-
14 days
-
MOQ:
-
1 set
-
Package:
-
PE foam
-
Certification:
-
CE ROHS
-
Warranty:
-
12 Months
-
Keyword:
-
Thermoelectric assemblies
-
Surface finish:
-
oxidation
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WELLEN TECH
-
Model Number:
-
WFF-200
-
Type:
-
Thermoelectric assembly
-
Product name:
-
Thermoelectric cooler
-
Material:
-
aluminum heatsink , peltier module, fans
-
Payment:
-
T/T
-
Delivery Time:
-
14 days
-
MOQ:
-
1 set
-
Package:
-
PE foam
-
Certification:
-
CE ROHS
-
Warranty:
-
12 Months
-
Keyword:
-
Thermoelectric assemblies
-
Surface finish:
-
oxidation
Related Products
Thermoelectric assembly
Air to Air
Peltier chiller
Air to Liquid
Peltier device
Air to Plate
Specification
Parameters
|
Part No.
|
WFF-200W-24-C
|
|
Max cooling power
|
200 W @ △T = 0℃
|
|
Voltage of peltier cell
|
24 VDC
|
|
Current of Peltier cell
|
Start 13.5 A / Working 11.5 A
|
|
Hot side fan
|
24V 0.6A,3000RPM,211CFM,56dBA
|
|
Cold side fan
|
24V,0.5A,3000RPM,126CFM,41dBA
|
|
Power supply
|
270 W
|
|
Operating temperature
|
-10~70℃
|
|
Weight
|
7.1 Kgs
|
Dimension
Performance Curve
NOTES WITH USE
1. Please use 12VDC switching power, and the ripple factor is less than 10%
2. Don’t drop from than 30cm height, the Bi2Te3 will be damaged
3. Please keep away from wall or other objects more than 10cm when install it.
4. No starting up, when the ambient temperature and the heat sink over 70C, or it will be damaged
5. Please read the specification and other accessories carefully
1. Please use 12VDC switching power, and the ripple factor is less than 10%
2. Don’t drop from than 30cm height, the Bi2Te3 will be damaged
3. Please keep away from wall or other objects more than 10cm when install it.
4. No starting up, when the ambient temperature and the heat sink over 70C, or it will be damaged
5. Please read the specification and other accessories carefully
Products Show
Wellen Technology Co.,Ltd
.
Specialized in thermoelectric modules, thermoelectric assemblies design and production for more than 20 years
Wellen Tech is a professional manufacturer of thermoelectric modules, peltier modules, thermoelectric assemblies. We can provide more than 1000 specifications of products and also provide customized service . Welcome to contact us !

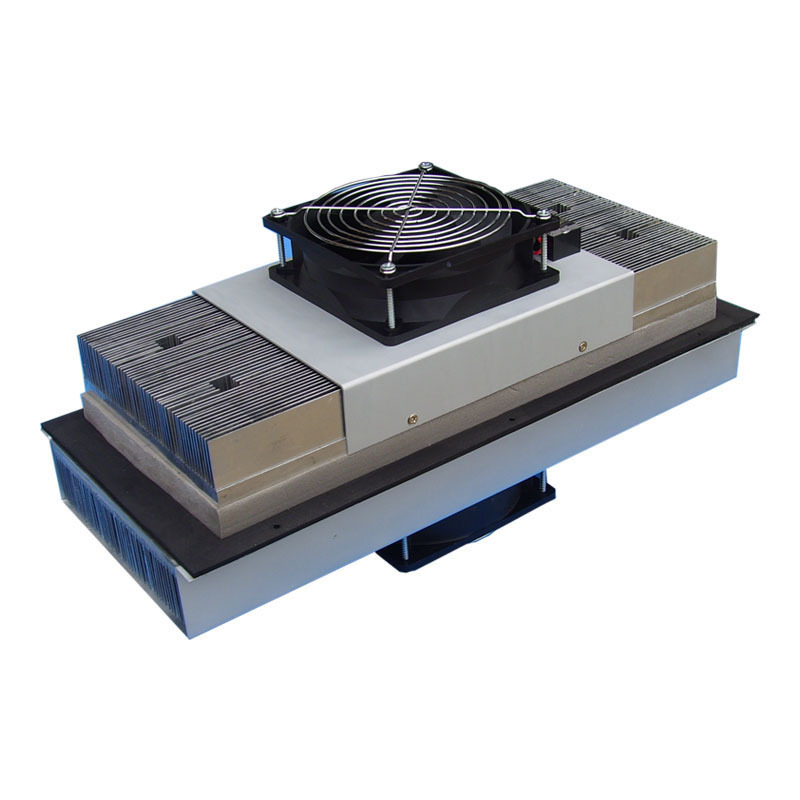

Thermoelectric Cooling Assembly Air to Air WFF-200
Features
1. Higher cooling efficiency and longer working time.
2. Top quality & competitive price
3. Eco-friendly
4. Small size&Easy to operate
5. All products are RoHS and REACH compliant.
6. ISO9001 verified
7. Customizable.
Applications:
* Analytical instrumentation
* Medical diagnostics
* Photonics laser systems
* Industrial instrumentation
* Food and beverage cooling
* Tele-comunication facilities
Custom design is acceptable .
(
Wellen Tech
www.wellentech.com )
All products are RoHS ans REACH compliant,SGS ISO9001 certified.
Products List
|
Part No.
|
Cooling Power
|
Voltage（V)
|
Current（A）
|
Operating Temp（℃）
|
Weight(KG)
|
|
WFF-26W-12
|
26W
|
12
|
2.8-3A
|
-10~+70
|
|
|
WFF-36W-12
|
36W
|
12
|
4.2-5A
|
-10~+70
|
0.95
|
|
WFF-42W-12
|
42W
|
12
|
5.1-6A
|
-10~+70
|
1.4
|
|
WFF-50W-12
|
50W
|
12
|
5.6-6.5A
|
-10~+70
|
1.8
|
|
WFF-50W-24
|
50W
|
24
|
2.8-3.5A
|
-10~+70
|
1.8
|
|
WFF-60W-12
|
60W
|
12
|
7.2-8.5A
|
-10~+70
|
2.6
|
|
WFF-60W-24
|
60W
|
24
|
3.8-4.2A
|
-10~+70
|
2.6
|
|
WFF-70W-12
|
70W
|
12
|
8-9A
|
-10~+70
|
2.6
|
|
WFF-70W-24
|
70W
|
24
|
4-4.5A
|
-10~+70
|
2.6
|
|
WFF-100W-12
|
100W
|
12
|
11.3-12.5A
|
-10~+70
|
3.7
|
|
WFF-100W-24
|
100W
|
24
|
5.7-6.5A
|
-10~+70
|
3.7
|
|
WFF-110W-24
|
110W
|
24
|
8.6-10.1A
|
-10~+70
|
|
|
WFF-150W-12
|
150W
|
12
|
17-19A
|
-10~+70
|
4.5
|
|
WFF-150W-24
|
150W
|
24
|
8.5-9.5A
|
-10~+70
|
4.5
|
|
WFF-200W-12
|
200W
|
12
|
22.8-25A
|
-10~+70
|
7.1
|
|
WFF-200W-24
|
200W
|
24
|
11.5-13A
|
-10~+70
|
7.1
|
|
WFF-200W-48
|
200W
|
48
|
5.9-7A
|
-10~+70
|
7.1
|
|
WFF-205W-12
|
205W
|
12
|
22.8-25A
|
-10~+70
|
7.1
|
|
WFF-205W-24
|
205W
|
24
|
11.5-13A
|
-10~+70
|
7.1
|
|
WFF-205W-48
|
205W
|
48
|
5.9-7A
|
-10~+70
|
7.1
|
|
WFF-300W-24
|
300W
|
24
|
16.8-19.5A
|
-10~+70
|
11.1
|
|
WFF-300W-48
|
300W
|
48
|
8.5-10A
|
-10~+70
|
11.1
|
|
WFF-300W-PRO
|
300W
|
48
|
9.2A
|
-10~+70
|
11
|
|
WFF-380W-24
|
380W
|
24
|
23A
|
-10~+70
|
12.5
|
|
WFF-380W-48
|
380W
|
48
|
12A
|
-10~+70
|
12.5
|
|
WFF-400W-24
|
400W
|
24
|
23-26.8A
|
-10~+70
|
12.5
|
|
WFF-400W-48
|
400W
|
48
|
11.6-13.5A
|
-10~+70
|
12.5
|
|
WFF-500W-PRO
|
500W
|
48
|
16.5A
|
-10~+70
|
|
|
WFF-700W-48
|
700W
|
48
|
20A
|
-10~+70
|
30
|
|
WFF-1200W-48
|
1200W
|
48
|
30A
|
-10~+70
|
|
We can make the thermoelectric cooling assembly according to customer's requirement
