Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Liaoyuan
-
Model Number:
-
DXP-3030W
-
Input Voltage:
-
12V / 24V
-
Output Voltage:
-
110V / 220V
-
Output Current:
-
4A
-
Output Frequency:
-
50Hz
-
Certificate:
-
CE, CE ROHS FCC
-
Warranty:
-
12 months
-
Weight:
-
4.1kg
-
Output Voltage (V):
-
110V/120V/220V/240V
-
Load Power (W):
-
3000W
-
Peak power:
-
6000W
-
Color:
-
Blue
-
Input voltage:
-
12v / 24v
-
Application:
-
Solar Power System Home / Car Power
-
Protection:
-
Reverse Connect / Over Load
-
Output waveform:
-
Pure Sine Wave Output
-
OEM:
-
Accept Customization
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
≥95%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Liaoyuan
-
Model Number:
-
DXP-3030W
-
Input Voltage:
-
12V / 24V
-
Output Voltage:
-
110V / 220V
-
Output Current:
-
4A
-
Output Frequency:
-
50Hz
-
Certificate:
-
CE, CE ROHS FCC
-
Warranty:
-
12 months
-
Weight:
-
4.1kg
-
Output Voltage (V):
-
110V/120V/220V/240V
-
Load Power (W):
-
3000W
-
Peak power:
-
6000W
-
Color:
-
Blue
-
Input voltage:
-
12v / 24v
-
Application:
-
Solar Power System Home / Car Power
-
Protection:
-
Reverse Connect / Over Load
-
Output waveform:
-
Pure Sine Wave Output
-
OEM:
-
Accept Customization

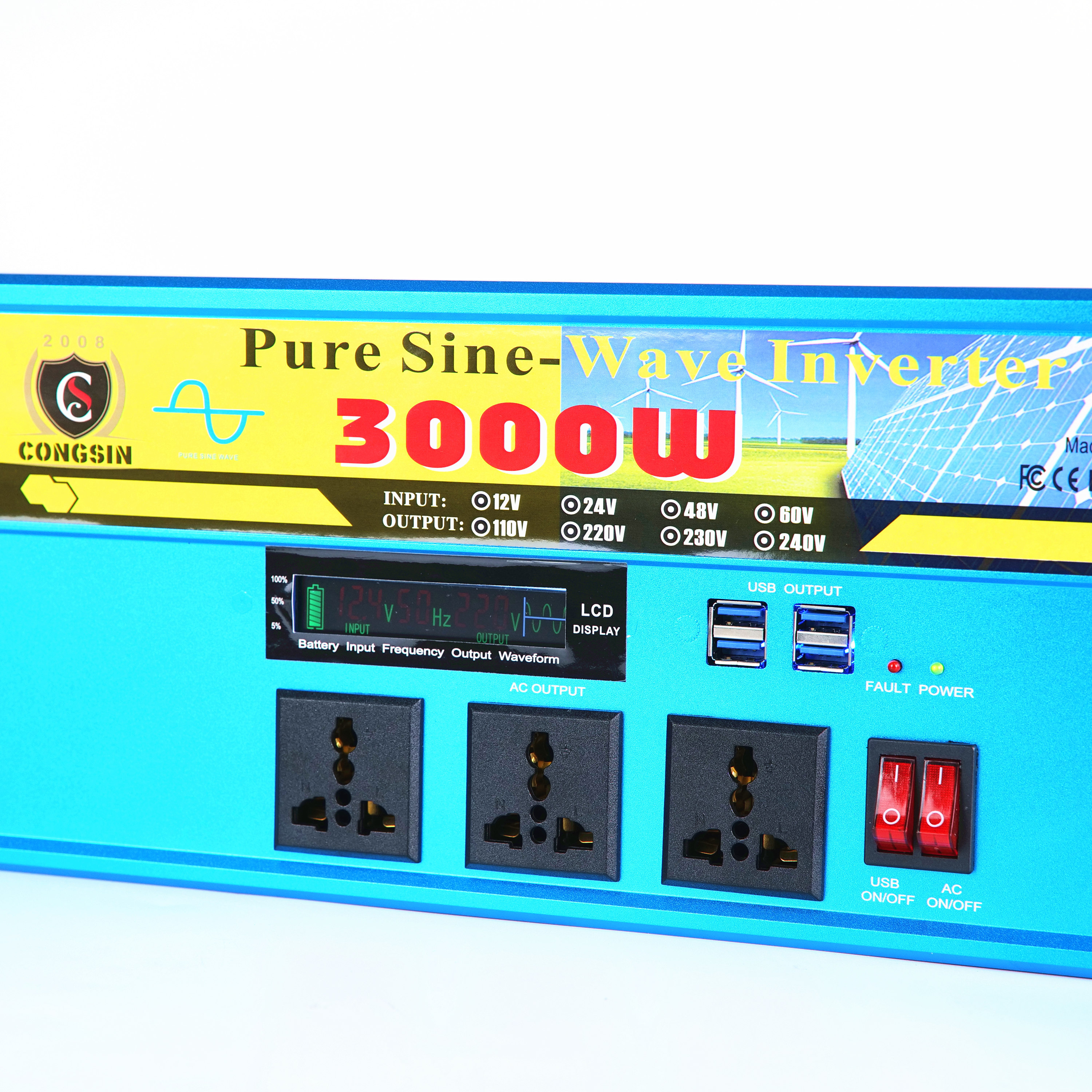

12V 24V DC to AC 220V 3000W Pure Sine Wave Power Inverter for Solar System
Specification:
1.Pure sine wave inverter
2.high-end chip
3.soft-start function
4.dc12v to ac 220v
5.warranty:12 months
Feature:
1. Soft-start (1>Gradual voltage ramp-up during inverter startup, This eliminates failed cold starts under load. 2>.Output that momentarily dips in voltage and quickly recovers to allow large motorized loads to start. This eliminates almost all shutdowns from momentary overloads)
2. Imported with original packaging components
3.100% Full Power
4. THD<3%
5. Built-in High Speed Cooling Fan.
6. Anodized Aluminum Case: Provides durability and maximum heat dissipation.
7. All protections (Low Voltage Alarm; Low Voltage Shut Down; Over Load Production; Over Voltage Shut Down; Over Thermal Protection; Short Circuit Protection)
8. One Year Warranty.(In the normal case of using this product, any raw materials or the production process quality problems by the date of purchase within one year, the factory is responsible for the free repair.)
9. CE RoSH SGS GMC IP30 Approved
10.Good quality AC Socket
11.On/off switch
12.Isolated ground neutral
13.Positive power input terminal.
14.Negative power input terminal.
15.LED for over load protection
16.LED for power on
|
Rate power:
|
3000W
|
|
|
|
|
|
|||||
|
Peak power:
|
6000W
|
|
|
|
|
|
|||||
|
Input voltage:
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|||||
|
Output voltage:
|
100VAC or 110VAC or 120VAC±5%
|
|
|
220VAC or 230VAC or 240VAC±5%
|
|
|
|||||
|
Unload current less than
|
1.1A
|
0.7A
|
0.5A
|
1.1A
|
0.7A
|
0.5A
|
|||||
|
Frequency:
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
|
|
|
|
|
|||||
|
Output wave form:
|
Pure sine wave
|
|
|
|
|
|
|||||
|
Waveform distortioin:
|
THD<3%(Linear load)
|
|
|
|
|
|
|||||
|
USB port:
|
5V 2.1A
|
|
|
|
|
|
|||||
|
Efficiency:
|
≥90%
|
|
|
|
|
|
|||||
