Quick Details
-
Brand Name:
-
JIANXIN
-
Motor Power:
-
55kw
-
Charging Capacity:
-
2.3m3
-
Reclaiming capacity:
-
1m3
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
Water Tank
-
Working Cycle Period:
-
15
-
Discharge Way:
-
Automatic discharging
-
Outline Dimension:
-
6750*2350*2450mm
-
Weight (KG):
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Self Loading Concrete Mixer Truck 1000 1m3 Capacity with High Quality
-
Transmission:
-
Hydraulic
-
Engine:
-
4108
-
Tire Size:
-
16/70-20
-
Truck weight:
-
7200kg
-
Color:
-
Milk white, Yellow or customized
Quick Details
-
Mixing Power:
-
45kw, Hydraulic Motor
-
Productivity:
-
7M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIANXIN
-
Motor Power:
-
55kw
-
Charging Capacity:
-
2.3m3
-
Reclaiming capacity:
-
1m3
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
Water Tank
-
Working Cycle Period:
-
15
-
Discharge Way:
-
Automatic discharging
-
Outline Dimension:
-
6750*2350*2450mm
-
Weight (KG):
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Self Loading Concrete Mixer Truck 1000 1m3 Capacity with High Quality
-
Transmission:
-
Hydraulic
-
Engine:
-
4108
-
Tire Size:
-
16/70-20
-
Truck weight:
-
7200kg
-
Color:
-
Milk white, Yellow or customized

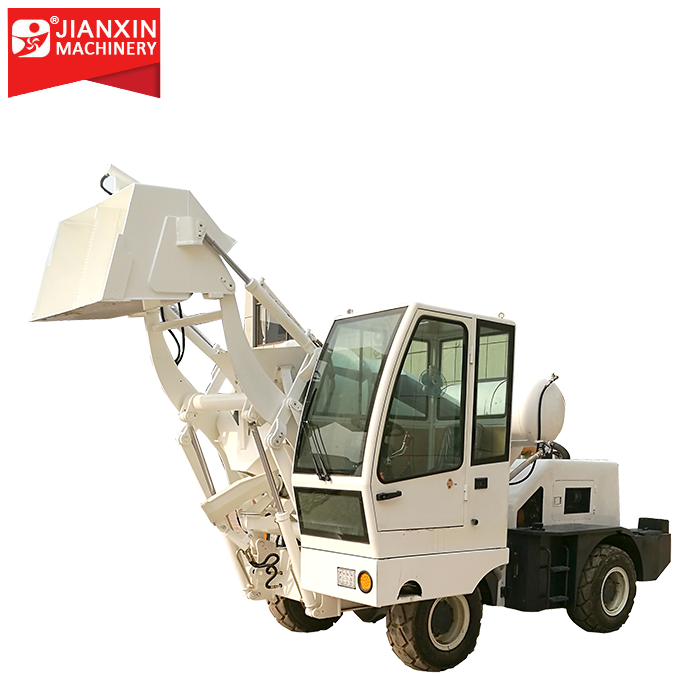

1m3 self loading concrete mixer truck is equipped with anti-rolling and anti-fall protection system to improve the overall safety protection for drivers in the harsh construction environment and driving conditions.Equipped with a fully equipped cab, simple operation design and ergonomically designed joystick, the operator is immediately familiar with all major work moves.Equipped with an on-board lighting system that can be used at night and for construction, it can achieve 24-hour construction work and increase work efficiency.
| type | parameter |
| Mixing system | The drum capacity is 2.5 cubic meters and the actual mixing volume is 1.5 cubic meters. The horizontal rotation is 270 degrees, and the height of discharge is 1.6 meters. |
| Throughput | 1.5m³,6m³/hr. |
| Diesel engine | Jade wood YC4D95-T21, water-cooling ,4Cylinder.70KW/2200rpm. |
| Transmission mode | Full hydraulic drive. 4 wheel drive, 4 wheel steering. Broken air brake bridge. |
| Walking speed | low speed 0—10km/h, high speed 0—30 km/h |
| Cab | Left driving, anti turn, anti drop cab. Front loading shovel. |
| Hydraulic system | Imported hydraulic system, closed loop, walking pump 40Mpa, displacement 90ml/r, walking motor 40Mpa displacement 63ml/r, mixing pump 40Mpa, displacement 71ml/r, 40Mpa displacement 63ml/r of agitator motor, mixing pump for hydraulic transmission and roller rotation |
| Joystick | Hydraulic four - bit electronic control operating lever |
| A scraper bucket | 450 liters, hydraulic gate |
| chute | Hydraulic adjustment angle to increase discharge length, chute can swing within 120 degrees. |
| Water supply system | 2 x 300 liters. Hydraulic drive self suction pump water. High pressure water pump flushing vehicle |
| brake | Pneumatic brake. Double independent loop |
| tyre | Special tires for engineering machinery20.5/70-16 |
| electric power system | 24Volt |
| tank | Diesel tank: 100 litres. Hydraulic tank: 140 liters |
| weight | 6400kg |
| Shape size | Length: 5.3 meters wide: 2.05 meters high: 3 meters |
| metering | Electronic weighing, water meter. Formula controlled |
| Wheelbase | 2.0m |
Zhengzhou Jianxin Machinery Manufacturing Co., Ltd. is a high-end technology enterprise that integrates R&D, manufacturing, sales, and service. It has been established for more than 30 years, and it has always adhered to the production of equipment for concrete mixing plants. It is a development project for China's construction industry. Provide high-quality high-end concrete production equipment and construction programs.
Professional technical and service teams have provided inexhaustible motivation for building a new century-long foundation. At present, all new brand equipments are designed, produced, assembled and tested in accordance with the ISO9001 international quality certification system standards. Currently, they have been sold in more than 20 countries and regions at home and abroad, and treat each customer seriously, providing them with quality equipment and services. In order to improve the interests of customers, it is the compliance of the establishment of new standards. Quality is the lifeblood of products, and high-quality after-sales service is our top priority.
FAQ
Q How about the quality of your products?
A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.Chinese top brands or world grade brands like Siemens motors etc are equiped.
Q
How about the price?
A
As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount and ensurance.
Q
Do you provide after-sale service?
A
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.It usually takes 1-3 days for training , 10-15 days for installation,1-2days for commission,1-2days for pre-operation.
Q
Do you provide equipment operation training?
A
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.It's about 90-120 usd a day.
Q
Can you test our samples?
A
Yes. You can send your samples to us for test and analysis.
Q
How long it takes to do all the installation
A
It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.
Q
Can we visit your factory?
A
Yes. You can visit our factory at anytime you want.
