- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Vacorda
-
Model Number:
-
UHKG
-
Material:
-
steel
-
Mode:
-
Float Level Controller
-
Product Name:
-
High Level Float Switch And Controller Industrial Fuel Level Switch
-
Application:
-
oil, water,fuel etc
-
Pressure:
-
16MPa
-
Detect point:
-
8 switch detect 8 point
-
Connection:
-
Flange, thread
-
Contact type:
-
SPST, SPDT
-
Delivery:
-
Express, Ship, Air
-
Lifetime:
-
5-10 years
-
Explosion proof grade:
-
Exia II CT5Ga, Exd II BT5Gb
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
3 years
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Vacorda
-
Model Number:
-
UHKG
-
Material:
-
steel
-
Mode:
-
Float Level Controller
-
Product Name:
-
High Level Float Switch And Controller Industrial Fuel Level Switch
-
Application:
-
oil, water,fuel etc
-
Pressure:
-
16MPa
-
Detect point:
-
8 switch detect 8 point
-
Connection:
-
Flange, thread
-
Contact type:
-
SPST, SPDT
-
Delivery:
-
Express, Ship, Air
-
Lifetime:
-
5-10 years
-
Explosion proof grade:
-
Exia II CT5Ga, Exd II BT5Gb

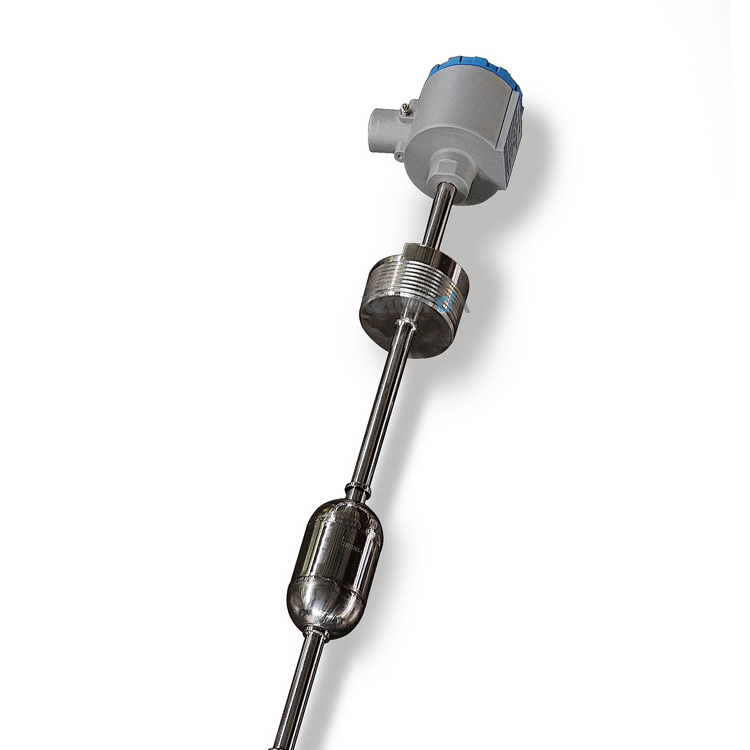

Manufacturer High Temperature Automatic Wireless 4 20mA Magnetic Float Switch Side Level Sensor
Magnetic float level switch consist of reed and magnetic float ball , which is based on the floating principle that utilize s magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.
Product Features
1.L ong life span , stable and reliable operation, easy installation, almost no maintenance
2.Independent of mediums ’ physical and chemical status
3. Appliable for all kinds of bad medium environment with density ≥ 0.5g/cm ³
4. Available for interface detection of mediums with two different densities
5. W ide application range . Pressure 0~ PN160 ( max. up to PN320), temperature -40~+150 ° c
Product Parameters
|
(1) High temperaturre type : |
≤150℃ |
|
(2) Protection grade : |
IP65 |
|
(3)Working temperature scope: |
-40℃~80℃ -40~120℃ |
|
(4) Anti-explosion grade : |
EXia EXd |
|
(5) Installation Angle : |
≤±25° |
| (6) Installation Type : | DN50/RF/PL(HG/T20592-2009) |
| (7) Working pressure : | PN2.5~ PN160(Max pressure PN320) |
|
(8) Medium Density : |
≥0.5g/cm3 |
|
(9) Connection : |
M20*1.5 female thread |
|
(10) MAX Installation Depth: |
6000mm |
