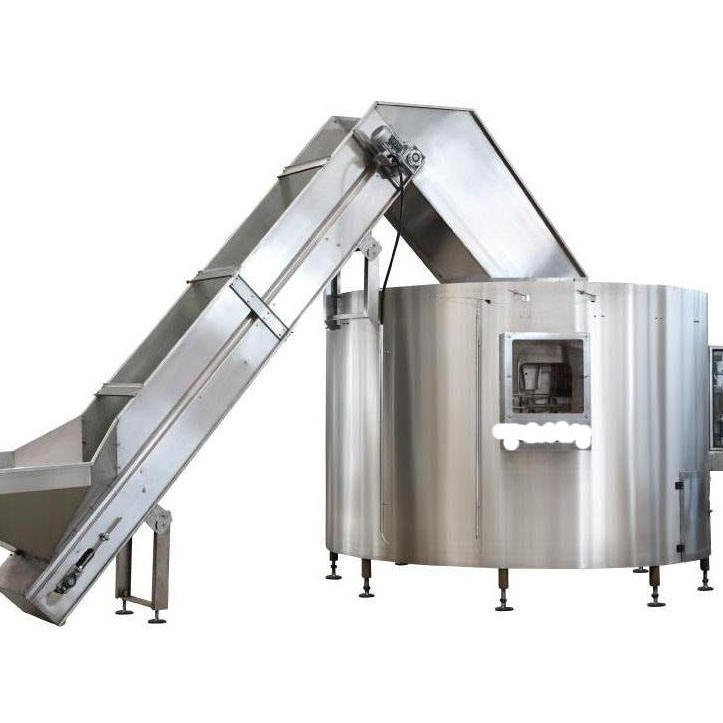

Automatic plastic bottle unscramble machine/bottle sorting machine

Automatic plastic bottle unscramble machine/bottle sorting machine

Specifications

1.MISTUBISHI PLC
2.machine material Stainless steel 304
3.capacity:5000-8000bottles/hour
4.power:2.2kw

Machine features:

Automatic plastic bottle unscramble machine/bottle sorting machine

1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur
2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency
3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery
4) Dilapidated bottles will be eliminated by a special device
5) A lock detector is equipped for alarming; when locked, the machine will automatically stop
6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles
7) An oil pump will readily fill up the gears, bearings and the cams
8) Maintenance doors and mould replacement door provided
9) Mitsubishi, Omron and Siemens provide the main electrical components; such as transducers, PLC, photoelectric switch and relay

Automatic plastic bottle unscramble machine/bottle sorting machine
