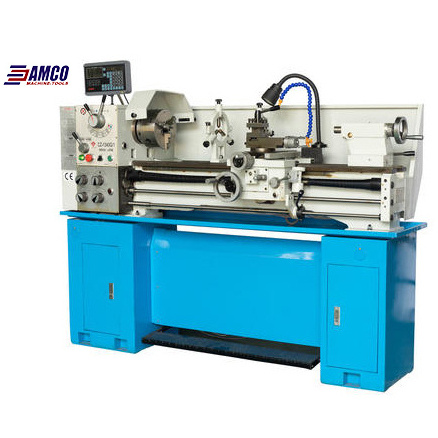

BENCH LATHE
|
|
CZ1340G/1 CZ1440G/1
|
|
|
|
|
|
|||
|
Main data
|
Swing over bed
|
φ 330mm / φ 355mm
|
|
|
|
|
|
|||
|
|
Swing over carriage
|
φ 195mm / φ 220mm
|
|
|
|
|
|
|||
|
|
Swing over gap
|
φ 476mm / φ 500mm
|
|
|
|
|
|
|||
|
|
Width of bed-way
|
186mm
|
|
|
|
|
|
|||
|
|
Distance between centers
|
1000mm
|
|
|
|
|
|
|||
|
Spindle
|
Taper of spindle
|
M. T. 5
|
|
|
|
|
|
|||
|
|
Spindle diameter
|
φ 38mm
|
|
|
|
|
|
|||
|
|
Step of speed
|
8 Steps
|
|
|
|
|
|
|||
|
|
Range of speed
|
70-2000 rpm
|
|
|
|
|
|
|||
|
|
Head
|
D1-4
|
|
|
|
|
|
|||
|
Thread and feed system
|
Metric thread
|
26kinds (0.4~7mm)
|
|
|
|
|
|
|||
|
|
Inch thread
|
34kinds(4~56T. P. I)
|
|
|
|
|
|
|||
|
|
Module thread
|
16 kinds(0.35~5M. P)
|
|
|
|
|
|
|||
|
|
Diametral thread
|
36 kinds(6~104D. P)
|
|
|
|
|
|
|||
|
|
Longitudinal feeds
|
0.052~1.392mm (0.002" ~0.0548" )
|
|
|
|
|
|
|||
|
|
Cross feeds
|
0.014~0.38mm (0.00055" ~0.015" )
|
|
|
|
|
|
|||
|
Main lead screw
|
Diameter lead screw
|
φ 22mm(7/8" )
|
|
|
|
|
|
|||
|
|
Pitch of lead screw
|
3mm or 8T. P. I
|
|
|
|
|
|
|||
|
Saddle and carriage
|
Saddle travel
|
1000mm
|
|
|
|
|
|
|||
|
|
Cross travel
|
170mm
|
|
|
|
|
|
|||
|
|
Compound travel
|
74mm
|
|
|
|
|
|
|||
|
Tailstock
|
Barrel travel
|
95mm
|
|
|
|
|
|
|||
|
|
Barrel diameter
|
φ 32mm
|
|
|
|
|
|
|||
|
|
Taper of center
|
M. T. 3
|
|
|
|
|
|
|||
|
Power
|
Motor power
|
1.5KW (2HP)
|
|
|
|
|
|
|||
|
|
Motor for coolant system' s power
|
0.04KW (0.055HP)
|
|
|
|
|
|
|||
|
Shipment data
|
Machine(L× W× H)
|
1920× 760× 760 (mm)
|
|
|
|
|
|
|||
|
|
Stand(left) (L× W× H)
|
440× 410× 700 (mm)
|
|
|
|
|
|
|||
|
|
Stand (right)(L× W× H)
|
370× 410× 700 (mm)
|
|
|
|
|
|
|||
|
|
Machine
|
510/565 (kgs)
|
|
|
|
|
|
|||
|
|
Stand
|
70/75 (kgs)
|
|
|
|
|
|
|||
|
|
Loading qauntity/20" container
|
22 pcs
|
|
|
|
|
|
|||
